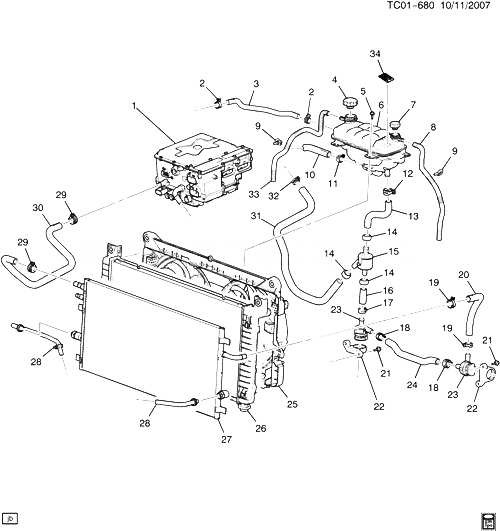

(TC01-680) - 2008-2009 CK107(06) ШЛАНГИ РАДИАТОРА ЧАСТЬ 2 (LFA/6.0-5, HYBRID HP2) CHEVROLET TAHOE HYBRID (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12624430 MODULE, DRV MOT GEN PWR INV (W/ 2ND MPU) (СМ. ГРУППУ 02.000 МОДУЛЬ УПРАВЛЕНИЯ ASM/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) CK1 (HP2) 2008-2009 01
002 15734741 CLAMP - SPRINGBAND. 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (RAD SURGE TK INL HOSE) 2008-2009 02
003 25880386 HOSE, RAD SURGE TK INL CK1 (LFA) 2008-2009 01
004 15075118 CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) CK1, 2, 3 2008-2009 01
005 22728347 БОЛТ, ENG COOL FAN SHRD CK1 2008-2009 06
006 19130061 TANK, RAD SURGE CK1 (LFA) 2008-2009 01
007 15076936 CAP, GEN CONT MDL COOL TK (W/LABEL) CK1 (HP2) 2008-2009 01
008 25880382 HOSE, RAD SURGE TK OVFL (W/CLIPS) (ENGINE) CK1 (LFA) 2008-2009 01
009 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (RAD SURGE TK OVFL HOSE) 2008-2009 02
010 25805078 HOSE, RAD SURGE TK OTLT CK1 (06) (LFA) 2009-2009 01
011 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (RAD SURGE TK OTLT HOSE) 2008-2009 02
012 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (RAD SURGE TK OTLT HOSE) 2008-2009 01
013 HOSE, RAD SURGE TK OTLT (PART OF 15) 2008-2009
013 HOSE, RAD SURGE TK OTLT (PART OF 15) 2009-2009
014 STRAP, HTR OTLT HOSE (PART OF 15) 2008-2009
014 STRAP, HTR OTLT HOSE (PART OF 15) 2009-2009
015 25880375 TANK, GEN CONT MDL COOL (INCLS 13, 14, 16, 31) CK1 2008-2009 01
016 HOSE, RAD SURGE TK OTLT (PART OF 15, 23) 2008-2009
016 HOSE, RAD SURGE TK OTLT (PART OF 15, 23) 2009-2009
017 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK OTLT HOSE) 2008-2009 01
018 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL OTLT HOSE) 2008-2009 02
019 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (GEN CONT MDL COOL PMP HOSE) (8.948) 2008-2009 02
020 19130060 HOSE, GEN CONT MDL COOL PMP CK1 (LFA) 2008-2009 01
021 БОЛТ, GEN CONT MDL COOL PMP BRKT 2008-2009
021 22728347 БОЛТ, GEN CONT MDL COOL PMP BRKT (1.277) CK1 2008-2009 04
022 BRACKET, GEN CONT MDL COOL PMP (PART OF 23) 2008-2009
022 BRACKET, GEN CONT MDL COOL PMP (PART OF 23) 2009-2009
023 15293032 PUMP, GEN CONT MDL COOL (INCLS 16, 22) (PUMP ONLY) CK1 (LFA) 2008-2009 02
023 25880378 PUMP, GEN CONT MDL COOL (INCLS 16, 22) (В СБОРЕ) CK1 (LFA) 2008-2009 02
024 25880373 HOSE, GEN CONT MDL COOL OTLT CK1 (LFA) 2008-2009 01
025 25880379 SHROUD, ENG COOL FAN (СМ. ГРУППУ 01.000 ВЕНТИЛЯТОР ОХЛАЖДЕНИЯ ДВИГАТЕЛЯ FOR DETAILED ILLUSTRATED VIEW) CK1 (LFA) 2008-2009 01
026 15293038 RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) CK1 (LFA) 2009-2009 01
027 RADIATOR, GEN CONT MDL COOL (СМ. ГРУППУ 01.000 МОДУЛЬ УПРАВЛЕНИЯ СИСТЕМА ОХЛАЖДЕНИЯ/КРЕПЛЕНИЕ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) 2008-2009
028 PIPE, TRANS FLUID CLR (СМ. ГРУППУ 04.000 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛЯНОГО РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) 2008-2009
029 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL TK HOSE) 2008-2009 02
030 25880374 HOSE, GEN CONT MDL COOL TK CK1 2008-2009 01
031 HOSE, GEN CONT MDL COOL INL (PART OF 15) 2008-2009
031 HOSE, GEN CONT MDL COOL INL (PART OF 15) 2009-2009
032 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL INL HOSE) 2008-2009 01
033 25880382 HOSE, RAD SURGE TK OVFL (W/CLIPS) (ENGINE) CK1 (LFA) 2008-2009 01
034 25802205 LABEL, RAD SURGE TK CAUTION CK1 (LFA) 2008-2009 01
