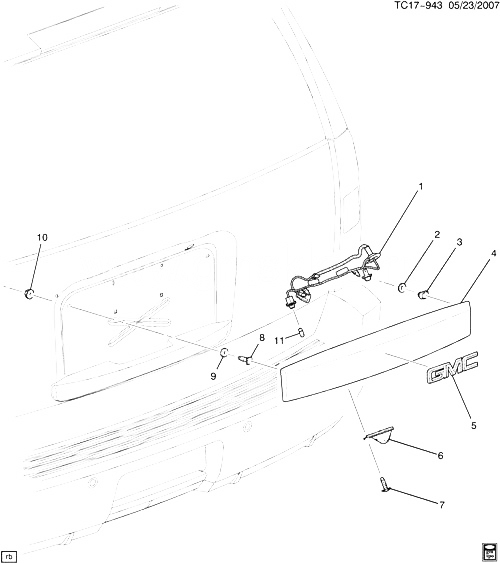

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15862654 |
HARNESS, RR LIC PLT LP WRG
| CK1, 2 (06) (X88, Z88) |
2008-2008 |
01 |
|
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG (2.714) (SERV CMP OF CAMERA PKGS) |
CK1, 2 (06) |
2008-2009 |
01 |
| 002 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 3, 4) |
|
2008-2009 |
|
| 003 |
15127746 |
CLIP, L/GATE LWR MLDG (INCLS 2) (PART OF 4) (NATURAL) (SET-UP HEIGHT 5.05MM) (8.309) |
CK1, 2 (06) (X88, Z75, Z88) |
2008-2009 |
02 |
| 004 |
|
APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (INCLS 2, 3, 8, 9) |
(X88) |
2008-2009 |
|
| 006 |
25778786 |
LAMP, RR LIC PLT
| CK1, 2 (06) (X88, Z75, Z88) |
2008-2009 |
02 |
|
| 007 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP LENS) |
|
2008-2009 |
04 |
| 008 |
|
STUD, L/GATE LWR MLDG (PART OF 4) |
|
2008-2009 |
|
| 009 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 4) |
|
2008-2009 |
|
| 010 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG)
|
2008-2009 |
04 |
|
| 011 |
01999382 |
BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE)
|
2008-2009 |
02 |
|
