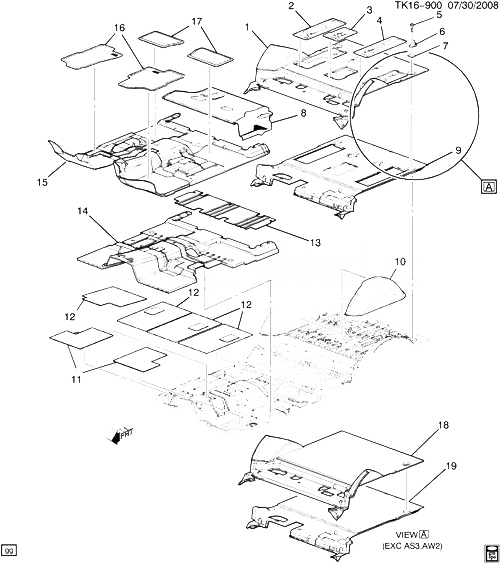

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25783700 |
CARPET, R/FLR PNL (INCLS 2-4) (EBONY) |
CK107 (06) (AS3, AW2, B30, HP2, 19I) |
2008-2009 |
01 |
| 001 |
25783701 |
CARPET, R/FLR PNL (INCLS 2-4) (TITANIUM) (USE ON TRUCKS BUILT PRIOR TO 09/14/07) (FOR 2ND DES SEE 25891889) |
CK107 (06) (AS3, AW2, B30, HP2, 83I) (1ST DES) |
2008-2008 |
01 |
| 001 |
25783702 |
CARPET, R/FLR PNL (INCLS 2-4) (CASHMERE) |
CK107 (06) (AS3, AW2, B30, HP2, 31I, 33I) |
2008-2008 |
01 |
| 001 |
25891889 |
CARPET, R/FLR PNL (INCLS 2-4) (TITANIUM) (USE ON VEHICLES BUILT ON OR AFTER 09/14/07) (FOR 1ST DES SEE 25783701) |
CK107 (06) (AS3, AW2, B30, HP2, 83I) (2ND DES) |
2008-2008 |
01 |
| 002 |
|
BEZEL, R/SEAT #2 ANC PLT (PART OF 1) |
|
2008-2009 |
|
| 003 |
|
BEZEL, R/SEAT #2 ANC PLT (PART OF 1) |
|
2008-2009 |
|
| 004 |
|
BEZEL, R/SEAT #2 ANC PLT (PART OF 1) |
|
2008-2009 |
|
| 005 |
11588960 |
БОЛТ, PAN HD, M10X1.5X38, 30 THD, 18OD, 10.8, 4205GMW, TORX, M-POINT (CARGO TIE DN HOOK) |
|
2008-2009 |
02 |
| 006 |
15749157 |
HOOK, CARGO TIE DN (BLACK) (17.090) |
CK1, 2 (06) |
2008-2009 |
02 |
| 007 |
|
SEALING STRIP, CARGO TIE DN LOOP BOLT HOLE |
|
2008-2009 |
|
| 008 |
25813593 |
COVER, R/SEAT RSR INR FIN (СМ. ГРУППУ 16.000 ЗАДНЕЕ СИДЕНЬЕ MOUNTING FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
CK1 (06) (AM8, HP2, 19I) |
2008-2009 |
01 |
| 008 |
25813594 |
COVER, R/SEAT RSR INR FIN (СМ. ГРУППУ 16.000 ЗАДНЕЕ СИДЕНЬЕ MOUNTING FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
CK1 (06) (AM8, HP2, 31I, 33I, 39I) |
2008-2009 |
01 |
| 008 |
25813595 |
COVER, R/SEAT RSR INR FIN (СМ. ГРУППУ 16.000 ЗАДНЕЕ СИДЕНЬЕ MOUNTING FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) |
CK1 (06) (AM8, HP2, 83I) |
2008-2009 |
01 |
| 009 |
25783717 |
INSULATOR, FLR PNL RR |
CK107 (06) (AS3, AW2, HP2) |
2008-2009 |
01 |
| 010 |
15917244 |
DEADENER, RR W/H INR PNL |
CK1, 2 (06) |
2008-2009 |
AR |
| 010 |
15917245 |
DEADENER, RR W/H INR PNL |
CK1, 2 (06) |
2008-2009 |
AR |
| 011 |
|
DEADENER, FLR PNL FRT |
|
2008-2009 |
|
| 012 |
90584197 |
DEADENER, FLR PNL (88X220MM) (6.758) |
CK1, 2, 3 |
2008-2009 |
01 |
| 013 |
15294099 |
INSULATOR, BAT (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ АККУМУЛЯТОРА/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) (LABELED 15294099) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 013 |
25961362 |
INSULATOR, BAT (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ АККУМУЛЯТОРА/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) (LABELED 2591362) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 014 |
25901778 |
INSULATOR, FLR PNL FRT |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 015 |
25850418 |
CARPET, F/FLR PNL (EBONY) |
CK107 (06) (B30, HP2, UQA, 19I) |
2008-2008 |
01 |
| 015 |
25850419 |
CARPET, F/FLR PNL (TITANIUM) (USE ON TRUCKS BUILT PRIOR TO 09/14/07) (FOR 2ND DES SEE 25871786) |
CK107 (06) (B30, HP2, UQA, 83I) (1ST DES) |
2008-2008 |
01 |
| 015 |
25850420 |
CARPET, F/FLR PNL (CASHMERE) |
CK107 (06) (B30, HP2, UQA, 31I, 33I) |
2008-2008 |
01 |
| 015 |
25871786 |
CARPET, F/FLR PNL (TITANIUM) (USE ON VEHICLES BUILT ON OR AFTER 09/14/07) (FOR 1ST DES SEE 25850419) |
CK107 (06) (B30, HP2, UQA, 83I) (2ND DES) |
2008-2008 |
01 |
| 016 |
19121499 |
MAT PKG, FRONT VINYL (CASHMERE) (TWIN) (NO LOGO) (16.800) |
CK1, 2 (06) (31I, 33I) |
2008-2008 |
01 |
| 016 |
19121916 |
MAT PKG, FRONT CARPET (TITANIUM) (TWIN) (NO LOGO) (15.286) (BUILT PRIOR TO 9/14/07) (FOR 2ND DES SEE 19206159) |
CK1 (06-36) (B58, X88, Z88, 83I) (1ST DES) |
2008-2008 |
01 |
| 016 |
19206159 |
MAT PKG, FRONT CARPET (TITANIUM) (TWIN) (NO LOGO) (16.800) (BUILT AFTER 9/14/07) (FOR 1ST DES SEE 19121916) |
CK1, 2 (06-36) (B58, X88, Z88, 83I) (2ND DES) |
2008-2008 |
01 |
| 017 |
|
MAT PKG, REAR VINYL |
|
2008-2008 |
|
| 017 |
19121487 |
MAT PKG, REAR VINYL (NO LONGER AVAIL, REFER ALT P/NS 19166596, 19166602, 19155783, 19158991, 19157415) (CASHMERE) (TWIN) (16.800) |
CK1, 2 (06-36) (B37, 31I, 33I) |
2008-2008 |
01 |
| 017 |
19121929 |
MAT PKG, REAR CARPET (TITANIUM) (TWIN) (15.306) (USE ON TRUCKS BUILT PRIOR TO 9/14/07) (FOR 2ND DES SEE 19206160) |
CK107 (06) (B58, X88, Z88, 83I) (1ST DES) |
2008-2008 |
01 |
| 017 |
19206160 |
MAT PKG, REAR CARPET (TITANIUM) (TWIN) (16.800) (USE ON TRUCKS BUILT AFTER 9/14/07) (FOR 1ST DES SEE 19121929) |
CK107 (06) (B58, X88, Z88, 83I) (2ND DES) |
2008-2008 |
01 |
| 018 |
25783706 |
CARPET, R/FLR PNL (EBONY) |
CK107 (06) (B30, HP2, 19I) (EXC AS3, AW2) |
2008-2008 |
01 |
| 018 |
25783707 |
CARPET, R/FLR PNL (TITANIUM) (USE ON TRUCKS BUILT PRIOR TO 09/14/07) (FOR 2ND DES SEE 25871798) |
CK107 (06) (B30, HP2, 83I) (EXC AS3, AW2) (1ST DES) |
2008-2008 |
01 |
| 018 |
25783708 |
CARPET, R/FLR PNL (CASHMERE) |
CK107 (06) (B30, HP2, 31I, 33I) (EXC AS3, AW2) |
2008-2008 |
01 |
| 018 |
25871798 |
CARPET, R/FLR PNL (TITANIUM) (USE ON VEHICLES BUILT ON OR AFTER 09/14/07) (FOR 1ST DES SEE 25783707) |
CK107 (06) (B30, HP2, 83I) (EXC AS3, AW2) (2ND DES) |
2008-2008 |
01 |
| 019 |
25783718 |
INSULATOR, FLR PNL RR |
CK107 (06) (HP2) (EXC AS3, AW2) |
2008-2009 |
01 |
