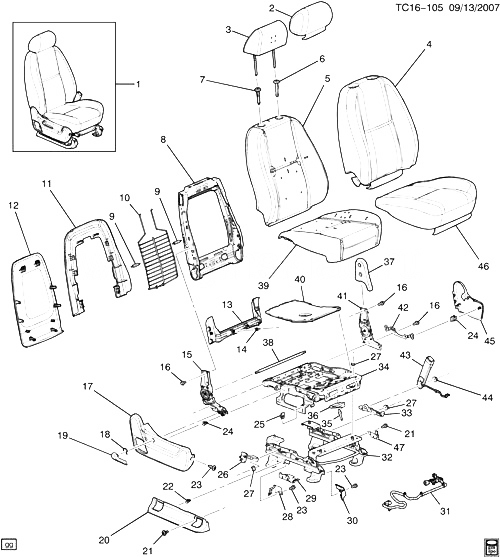

(TC16-105) - 2008 CK1,2(06-36) СИДЕНЬЕ ПАССАЖИРА/SPLIT BENCH (AZ3) CHEVROLET TAHOE HYBRID (4WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15934158 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06-36) (AL0, AN3, 193) 2008-2008 01
001 15934159 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1, 2 (06-36) (AL0, AN3, 313, 333) 2008-2008 01
001 15934160 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1, 2 (06-36) (AL0, AN3, 833) 2008-2008 01
001 15934161 SEAT, PASS (INCLS 2-47) (EBONY/MOROCCO) CK1, 2 (06-36) (AL0, AN3, 223) 2008-2008 01
001 15934162 SEAT, PASS (INCLS 2-47) (EBONY/TITANIUM) CK1, 2 (06-36) (AL0, AN3, 843) 2008-2008 01
001 15934166 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06) (AL0, AZ3, 19V) (EXC 9S1) 2008-2008 01
001 15934172 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06) (AL0, AZ3, 19V, 9S1) 2008-2008 01
001 25826236 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06) (AL0, AZ3, 19D) 2007-2008 01
001 25826236 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06-36) (AG1, AL0, AZ3, 19D) 2007-2008 01
001 25826237 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1, 2 (06) (AL0, AZ3, 31D, 33D) 2007-2008 01
001 25826237 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1, 2 (06-36) (AG1, AL0, AZ3, 31D, 33D) 2007-2008 01
001 25826238 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1, 2 (06) (AL0, AZ3, 83D) 2007-2008 01
001 25826238 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1, 2 (06-36) (AG1, AL0, AZ3, 83D) 2007-2008 01
001 25826296 SEAT, PASS (INCLS 2-47) (EBONY) CK1, 2 (06-36) (AG2, AL0, A95, 19D) 2008-2008 01
001 25826297 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1, 2 (06-36) (AG2, AL0, A95, 31D, 33D) 2008-2008 01
001 25826298 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1, 2 (06-36) (AG2, AL0, A95, 83D) 2008-2008 01
001 25826312 SEAT, PASS (INCLS 2-47) (EBONY/MOROCCO) CK1, 2 (06-36) (AG2, AL0, A95, 223) 2008-2008 01
001 25826313 SEAT, PASS (INCLS 2-47) (EBONY/TITANIUM) CK1, 2 (06-36) (AG2, AL0, A95, 843) 2008-2008 01
001 25923871 SEAT, PASS (INCLS 2-47) (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2008-2008 01
001 25944086 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) 2008-2008 01
001 25944087 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2008-2008 01
001 25983190 SEAT, PASS (INCLS 2-47) (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2008-2008 01
001 25983191 SEAT, PASS (INCLS 2-47) (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) 2008-2008 01
001 25983192 SEAT, PASS (INCLS 2-47) (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2008-2008 01
002 COVER, P/SEAT H/RST (PART OF 3) 2008-2008
003 15229444 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1, 2, 3 (AZ3, 31D, 33D) 2008-2008 01
003 15865481 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (AZ3, 19V, 193) 2008-2008 01
003 15865482 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1, 2, 3 (AZ3, 313) 2008-2008 01
003 15865483 RESTRAINT, P/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (AZ3, 833, 843) 2008-2008 01
003 25863484 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (AZ3, 19C) 2008-2008 01
003 25863484 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (AZ3, 19D) 2008-2008 01
003 25863486 RESTRAINT, P/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (AZ3, 83D, 84D) 2008-2008 01
004 15865828 COVER, P/SEAT BK CUSH (EBONY) CK1, 2, 3 (AZ3, 193) 2008-2008 01
004 25815778 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06) (AE7, AL0, 19V) 2007-2008 01
004 25815778 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06) (AZ3, AL0, 19V) 2007-2008 01
004 25863492 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (AZ3, 19D) 2008-2008 01
004 25863493 COVER, P/SEAT BK CUSH (CASHMERE) CK1, 2 (06-36) (AZ3, 31D, 33D) 2008-2008 01
004 25863494 COVER, P/SEAT BK CUSH (TITANIUM) CK1, 2 (06-36) (AZ3, 83D) 2008-2008 01
005 25789846 PAD, P/SEAT BK CUSH CK1 (06) (HNE) 2008-2008 01
006 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2, 3 (19I, 22I, 84I) 2007-2008 02
006 15279352 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1, 2, 3 (31I, 33I, 39I) 2007-2008 02
006 15279353 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/O BUTTON) CK1, 2, 3 (83I, 84I) 2007-2008 02
007 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2, 3 (19I) 2007-2008 02
007 15279348 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1, 2, 3 (31I, 33I, 39I) 2007-2008 02
007 15279349 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/BUTTON) CK1, 2, 3 (83I, 84I) 2007-2008 02
008 25808723 FRAME, P/SEAT BK CUSH (INCLS 9, 10, 15, 38, 41) (INCLS RECLINER, WIRE SPRING) CK1, 2, 3 (AZ3) 2008-2008 01
009 ПРУЖИНА, P/SEAT BK CUSH PAD SUPT WIRE (PART OF 8) 2008-2008
010 WIRE, P/SEAT BK CUSH PAD SUPT (PART OF 8) 2008-2008
011 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2007-2008 02
012 15933733 PANEL, P/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 84D) 2007-2008 01
012 15933733 PANEL, P/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 19C) 2007-2008 01
012 15933733 PANEL, P/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 19D) 2007-2008 01
012 15933734 PANEL, P/SEAT BK CUSH FIN (CASHMERE) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 31C, 33C) 2007-2008 01
012 15933734 PANEL, P/SEAT BK CUSH FIN (CASHMERE) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 31D, 33D) 2007-2008 01
012 15933735 PANEL, P/SEAT BK CUSH FIN (TITANIUM) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 83C) 2007-2008 01
012 15933735 PANEL, P/SEAT BK CUSH FIN (TITANIUM) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (06-36) (AE7, AZ3, A95, 83D) 2007-2008 01
012 15934747 PANEL, P/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 19V, 193) 2008-2008 01
012 15934748 PANEL, P/SEAT BK CUSH FIN (CASHMERE) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 313, 333) 2008-2008 01
012 15934749 PANEL, P/SEAT BK CUSH FIN (TITANIUM) (W/MAP POCKET) CK1, 2 (06-36) (AE7, AZ3, A95, 833, 843) 2007-2008 01
013 15827129 COVER, F/SEAT RSR FIN (INCLS 14) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
013 15827130 COVER, F/SEAT RSR FIN (INCLS 14) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 02
013 15827131 COVER, F/SEAT RSR FIN (INCLS 14) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I, 84I) 2007-2008 02
014 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 13) 2008-2008
015 RECLINER, P/SEAT OTR (PART OF 8) 2008-2008
016 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2007-2008 08
017 15232580 COVER, P/SEAT ADJR FIN (INCLS 24) (EBONY) (MANUAL) CK1, 2 (06-36) (AZ3, 19I) 2008-2008 01
017 15232581 COVER, P/SEAT ADJR FIN (INCLS 24) (CASHMERE) (MANUAL) CK1, 2 (06-36) (AZ3, 31I, 33I) 2008-2008 01
017 15232582 COVER, P/SEAT ADJR FIN (INCLS 24) (TITANIUM) (MANUAL) CK1, 2 (06-36) (AZ3, 83I) 2008-2008 01
017 25826400 COVER, P/SEAT ADJR FIN (INCLS 24) (EBONY) CK1, 2 (06-36) (AG2, AL0, A95, 19I) 2008-2008 01
017 25826401 COVER, P/SEAT ADJR FIN (INCLS 24) (CASHMERE) CK1, 2 (06-36) (AG2, AL0, A95, 31I, 33I) 2008-2008 01
017 25826402 COVER, P/SEAT ADJR FIN (INCLS 24) (TITANIUM) CK1, 2 (06-36) (AG2, AL0, A95, 83I) 2008-2008 01
018 RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 19) 2008-2008
019 25830532 HANDLE, P/SEAT RECL (INCLS 18) (EBONY) CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) 2008-2008 01
019 25830533 HANDLE, P/SEAT RECL (INCLS 18) (CASHMERE) CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333, 39I) 2008-2008 01
019 25830534 HANDLE, P/SEAT RECL (INCLS 18) (TITANIUM) CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) 2008-2008 01
020 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) 2007-2008
021 БОЛТ, P/SEAT ADJR FIN CVR 2007-2008
022 RETAINER, F/SEAT ADJR FIN CVR (PART OF 20) 2008-2008
023 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (P/SEAT CUSH OTR FIN PNL) 2007-2008 03
024 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 17, 45) 2008-2008
025 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2007-2008 02
026 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2007-2008 01
027 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) 2007-2008 08
028 COVER, P/SEAT OTR ADJR TRK RR FIN 2007-2008
029 15827135 BRACKET, P/SEAT FRT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2007-2008 01
030 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
030 15243859 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2008 01
030 15243860 COVER, P/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2007-2008 01
031 15910648 HARNESS, P/SEAT ADJR WRG (PWR ADJ ONLY) CK1, 2 (06-36) (AG2, AL0, A95, 19D, 31D, 83D) 2008-2008 01
031 25902021 HARNESS, P/SEAT ADJR WRG CK1, 2 (AL0, AE7, AZ3, A95) 2007-2008 01
032 25902537 ADJUSTER, P/SEAT (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) CK1 (06) (HP2) 2008-2008 01
032 25966557 ADJUSTER, P/SEAT (MANUAL) CK1, 2, 3 (AE7, AZ3, A95) 2007-2008 01
033 15845155 BRACKET, P/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 2007-2008 01
034 15827059 FRAME, P/SEAT CUSH CK1, 2, 3 2007-2008 01
035 19123516 RIVET-POP, 4.65 DIA SHANK, 15.24 LENGTH, 1.6-6.35 GRP RNG, BODY 5052 AL (PART OF 40) 2007-2008 02
036 MODULE, INFL RST P/SEAT SUPPRESSION (PART OF 40) 2008-2008
037 15855909 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
037 15855911 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
038 RECLINER, P/SEAT (PART OF 8) 2008-2008
039 PAD, P/SEAT CUSH (PART OF 40) 2008-2008
040 25826416 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 35, 36, 39) (INCLS PAD) (USED W/ LEATHER INTERIOR) CK1, 2, 3 (AL0) (EXC KB6) 2007-2008 01
040 25826417 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 35, 36, 39) (INCLS PAD) (USED W/ CLOTH INTERIOR) CK1, 2, 3 (AL0) (EXC KB6) 2007-2008 01
041 RECLINER, P/SEAT INR (PART OF 8) 2008-2008
042 15827137 BRACKET, P/SEAT RECL (I/B) CK1, 2, 3 2007-2008 01
043 19121541 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) (W/TENSIONER) CK1, 2 (AL0, AZ3) 2007-2008 01
043 19121542 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (CASHMERE) (W/TENSIONER) CK1, 2 (AL0, 31I, 33I, 39I) 2007-2008 01
043 19121543 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (TITANIUM) (W/TENSIONER) CK1, 2 (06-36) (AZ3, 83I) 2008-2008 01
043 19121543 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (TITANIUM) (W/TENSIONER) CK1, 2 (06-36) (AG2, AL0, A95, 83D) 2008-2008 01
043 19178408 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (EBONY) CK1 (06) (A95, AG2, AL0, AM1, HP2, 193) 2008-2008 01
043 19178409 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (CASHMERE) CK1 (06) (A95, AG2, AL0, AM1, HP2, 313) 2008-2008 01
043 19178409 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (CASHMERE) CK1 (06) (A95, AG2, AL0, AM1, HP2, 333) 2008-2008 01
043 19178410 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ПАССАЖИРА (BKL SI) (TITANIUM) CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) 2008-2008 01
044 ГАЙКА, P/SEAT BELT (BKL SI) 2007-2008
045 15243828 COVER, P/SEAT INR RECL FIN (INCLS 24) (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
045 15243829 COVER, P/SEAT INR RECL FIN (INCLS 24) (CASHMERE) (INBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 01
045 15243830 COVER, P/SEAT INR RECL FIN (INCLS 24) (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2007-2008 01
046 15865832 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AZ3, 193) 2008-2008 01
046 15865833 COVER, P/SEAT CUSH (CASHMERE) CK1, 2, 3 (AZ3, 313, 333) 2008-2008 01
046 15865834 COVER, P/SEAT CUSH (TITANIUM) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AZ3, 833, 843) 2008-2008 01
046 25815779 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2 (06-36) (AZ3, 19V) 2008-2008 01
046 25863508 COVER, P/SEAT CUSH (EBONY) CK1, 2 (06-36) (AZ3, 19D) 2008-2008 01
046 25863509 COVER, P/SEAT CUSH (CASHMERE) CK1, 2 (06-36) (AZ3, 31D, 33D) 2008-2008 01
046 25863510 COVER, P/SEAT CUSH (TITANIUM) CK1, 2, 3 (06-36) (AZ3, 83D) 2008-2008 01
047 15267756 ДАТЧИК, INFL RST FRT PASS POSITION (W/BRACKET) (14.865) CK1, 2 2007-2008 01
