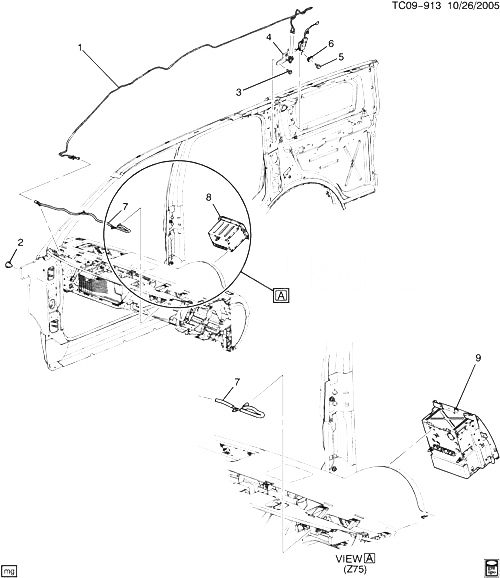

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15289725 |
CABLE, RDO ANT (ACDelco #15289725) |
CK107 (06) |
2007-2008 |
01 |
| 002 |
15045800 |
COVER, RDO ANT OPG |
CK1, 2 (06) (MSL, U84) |
2007-2009 |
01 |
| 003 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ELEK BRK CONT WRG HARN GND)
|
2007-2009 |
01 |
|
| 004 |
15877496 |
MODULE, RDO ANT (ACDelco #15877496) |
CK107 (06) (U84) |
2007-2008 |
01 |
| 005 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (RDO ANT MDL GRD)
|
2007-2009 |
AR |
|
| 006 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (HDLP HSG PNL)
|
2007-2009 |
01 |
|
| 007 |
15220450 |
CABLE, RDO ANT CBL EXTN RDO END (1250 MM) (ACDelco #15220450) |
CK1, 2 (U84, X88, Z88) |
2007-2009 |
01 |
| 008 |
|
RADIO, AM/FM STEREO CLK CD PLYR (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) |
|
2007-2009 |
|
| 009 |
|
RADIO, AM/FM STEREO NAVN (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) |
|
2007-2009 |
|
