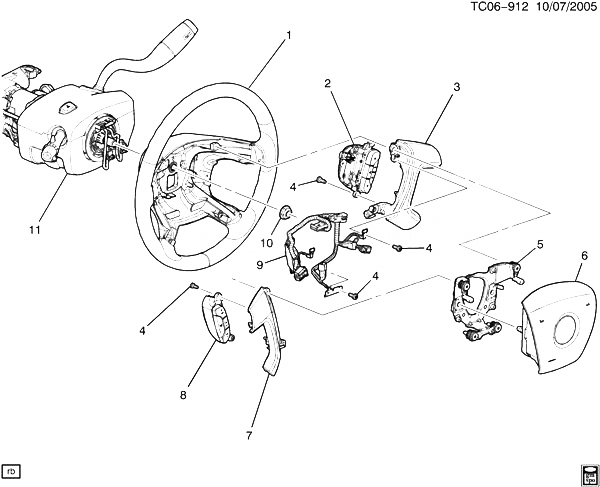

(TC06-912) - 2007-2009 CK1 РУЛЕВОЕ КОЛЕСО (WOOD TRIM N30, HEATED KA9) CHEVROLET TAHOE HYBRID (4WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 15255097 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
003 15255102 COVER, STRG WHL LWR (PART OF 1) (TRINITY) CK1 2007-2009 01
003 15844710 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
003 25824700 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
003 25826421 COVER, STRG WHL LWR (PART OF 1) (SOLITARE) CK1 2008-2009 01
004 15257875 БОЛТ, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) CK1, 2, 3 2007-2009 04
005 15255031 CONTACT, STRG WHL СИГНАЛ (PART OF 1) CK1, 2, 3 2007-2009 01
007 15255034 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
007 15255100 COVER, STRG WHL LWR (PART OF 1) (TRINITY) CK1 2007-2009 01
007 15844709 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
007 25824698 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
007 25826420 COVER, STRG WHL LWR (PART OF 1) (SOLITARE) CK1 2008-2009 01
009 MODULE, STRG WHL HT CONT (PART OF 1) 2007-2009
010 11609658 ГАЙКА, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518) CK1, 2, 3 2007-2009 01
010 11609659 ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917) CK1, 2, 3 2007-2008 01
011 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) 2007-2009
