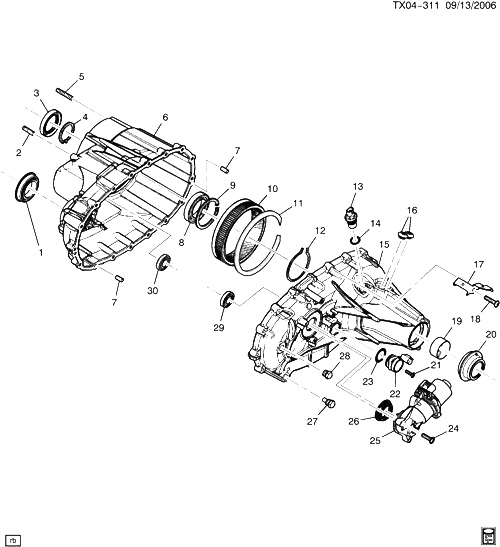

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19133157 |
SEAL, TRFER CASE FRT OUTPUT SHF |
K1 (NQG, NQH) |
2007-2009 |
01 |
| 001 |
19133157 |
SEAL, TRFER CASE FRT OUTPUT SHF |
K1 (NQH) |
2007-2009 |
01 |
| 002 |
19133166 |
VENT, TRFER CASE |
K1 (NQG, NQH) |
2007-2009 |
01 |
| 003 |
19133155 |
SEAL, TRFER CASE INPUT SHF (DOUBLE LIP) (USE W/M30 M70 MW7 M99 ML9) |
K1 (M99, NQH) |
2008-2009 |
01 |
| 004 |
19133024 |
RING, TRFER CASE INPUT GR BRG OTR RET |
K1 (NQG, NQH) |
2007-2009 |
01 |
| 005 |
19133005 |
STUD, TRFER CASE (PART OF 6) |
K1 (NQH, NQG) |
2007-2009 |
06 |
| 006 |
19132998 |
CASE, TRFER (FRT HALF) (INCLS 5, 7-11, 30) |
K1 (NQH) |
2007-2009 |
01 |
| 007 |
|
PIN, TRFER CASE HALF LOC (PART OF 6) |
|
2007-2009 |
|
| 007 |
19133004 |
PIN, TRFER CASE HALF LOC (PART OF 6) |
K1, 2 (NQH) |
2008-2009 |
02 |
| 008 |
19133006 |
BEARING, TRFER CASE INPUT SHF (PART OF 6) (ACDelco #19133006) |
K1 (NQH) |
2007-2009 |
01 |
| 009 |
19133007 |
RING, TRFER CASE INPUT SHF INR RET (PART OF 6) |
K1 (NQH) |
2007-2009 |
01 |
| 010 |
|
GEAR, TRFER CASE HIGH/LOW INTL (PART OF 6) |
|
2008-2009 |
|
| 011 |
19133009 |
RING, TRFER CASE HIGH/LOW INT GR RET (PART OF 6) |
K1 (NQG, NQH) |
2007-2009 |
01 |
| 012 |
19168238 |
RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET |
K1 (NQH) |
2007-2008 |
01 |
| 015 |
19133139 |
CASE, TRFER (RR HALF) (INCLS 19) |
K1 (M30, M70, M99, NQH) |
2008-2008 |
01 |
| 016 |
19133165 |
PLUG, TRFER CASE ACC HOLE |
K1 (NQG, NQH) |
2007-2009 |
02 |
| 017 |
19133154 |
BRACKET, TRFER CASE (HARNESS-A) |
K1 (NQH) |
2007-2009 |
01 |
| 018 |
19169068 |
БОЛТ, TRFER CASE HALF (W/O WAX) |
K1 (NQH, NQG) |
2007-2009 |
17 |
| 019 |
15665313 |
BUSHING, TRFER CASE RR EXTN (PART OF 15) (4.319)
| K1 (M30, M70, M99, NQH) |
2008-2008 |
01 |
|
| 020 |
19133150 |
SEAL, TRFER CASE RR OUTPUT SHF
| K1, 2, 3 (NQG, NQH) |
2007-2009 |
01 |
|
| 021 |
19133161 |
БОЛТ, TRFER CASE TWO/FOUR WHL DRV ACTR SEN |
K1, 2 (NQH) |
2008-2009 |
02 |
| 022 |
19133159 |
ДАТЧИК, TRFER CASE TWO/FOUR WHL DRV ACTR POSN (INCLS 23) |
K1, 2 (M30, M70, M99, MYC, MYD, NQH) |
2008-2009 |
01 |
| 023 |
19133160 |
SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR POSN SEN (PART OF 22) |
K1 (M99, NQH) |
2008-2009 |
01 |
| 024 |
19179124 |
БОЛТ, TRFER CASE TWO/FOUR WHL DRV ACTR |
K1, 2 (NQH) |
2008-2009 |
04 |
| 025 |
19133168 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 26) |
K1 (M70, NQH) |
2008-2008 |
01 |
| 025 |
19133168 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 26) |
K1 (M30, NQH) |
2008-2009 |
01 |
| 025 |
19133168 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 26) |
K1 (M99, NQH) |
2008-2009 |
01 |
| 025 |
19133168 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (INCLS 26) |
K1 (MYD, NQH) |
2008-2009 |
01 |
| 026 |
19133207 |
SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR (PART OF 25) |
K1, 2 (NQH) |
2008-2009 |
01 |
| 027 |
19133162 |
PLUG, TRFER CASE OIL DRN |
K1 (NQG, NQH) |
2007-2009 |
01 |
| 028 |
15032997 |
PLUG, TRFER CASE OIL FILL
| K1, 2 (NQH) |
2008-2009 |
01 |
|
| 029 |
19133010 |
BEARING, TRFER CASE FOUR WHL DRV ACTR LVR SHF |
K1 (NQH) |
2007-2009 |
02 |
| 030 |
19133010 |
BEARING, TRFER CASE FOUR WHL DRV ACTR LVR SHF (PART OF 6) |
K1 (NQH) |
2007-2009 |
02 |
