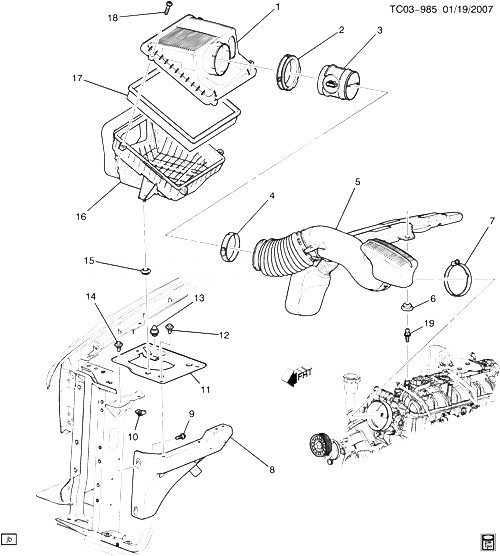

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15908906 |
ФИЛЬТР, ВОЗДУШНЫЙ (NOTE THIS CLEANER ASM INCLUDES THE COVER LOWER HOUSING) (INCLS BOLT, ELEMENT, FASTENER, ADAPTER) (INCLS 2, 3, 13, 16-18) (REMOVAL OF RESTRICTION INDICATOR AND GROMMET.DOES NOT EFFECT FIT/FORM FUNCTION)
| CK1 (LFA) (EXC K47) |
2008-2008 |
01 |
|
| 002 |
25171042 |
ADAPTER, MASS AIRFLOW SEN INL (PART OF 1)
| CK1 (LFA) |
2008-2009 |
01 |
|
| 003 |
15900023 |
ДАТЧИК, MASS AIRFLOW (W/INT AIR TEMP SEN) (PART OF 1) (ACDelco #213-3827) |
CK1 (LFA) |
2008-2009 |
01 |
| 004 |
|
CLAMP, CHRG AIR CLR INL DUCT (PART OF 5) |
|
2008-2008 |
|
| 005 |
15930089 |
DUCT, A/CL OTLT (INCLS 4, 6, 7) |
CK1 (LFA) |
2008-2009 |
01 |
| 006 |
25346092 |
INSULATOR, A/CL HSG (PART OF 5) (3.270) |
CK1 (LFA) |
2008-2009 |
01 |
| 007 |
|
CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 5) |
|
2008-2008 |
|
| 008 |
25863818 |
SUPPORT, A/CL |
CK1 (HP2) |
2008-2008 |
01 |
| 009 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/CL ADAP SUPT)
|
2008-2009 |
02 |
|
| 010 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (BAT TRAY REINF)
|
2008-2009 |
02 |
|
| 011 |
25872321 |
BRACKET, A/CL ADAP (INCLS TWO GROMMETS) (INCLS 15) (DIESEL NOT STAMPED ON PART) |
CK1, 2, 3 |
2008-2009 |
01 |
| 012 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (A/CL ADAP)
|
2008-2009 |
02 |
|
| 013 |
25316546 |
FASTENER, A/CL (PART OF 1) |
CK1 (LFA) |
2008-2009 |
01 |
| 014 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/CL ADAP) |
|
2008-2009 |
02 |
| 015 |
25346092 |
INSULATOR, A/CL HSG (PART OF 11) (3.270) |
CK1 (LFA) |
2008-2009 |
01 |
| 016 |
|
HOUSING, A/CL (PART OF 1) |
|
2008-2008 |
|
| 017 |
15908916 |
ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (PART OF 1) (ACDelco #A3086C)
| CK1 (LFA) |
2008-2008 |
01 |
|
| 018 |
11561933 |
БОЛТ, A/CL HSG CVR (PART OF 1) (M6X2.7X36)
| CK1 (06) (LFA, K47) |
2008-2009 |
04 |
|
| 019 |
11562129 |
БОЛТ, A/CL OTLT DUCT |
CK1 (LFA) |
2008-2009 |
01 |
