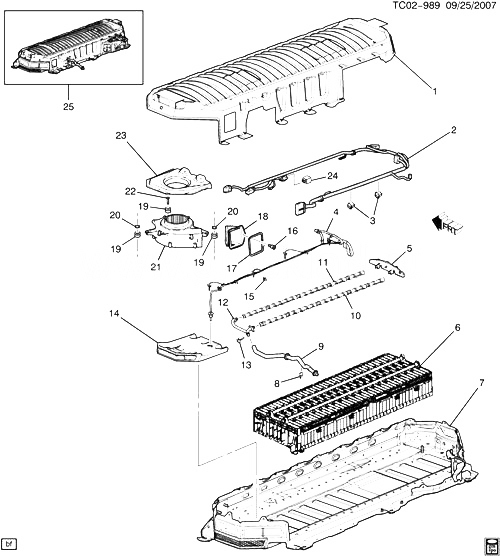

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, BAT (СМ. ГРУППУ 02.000 АККУМУЛЯТОР/DRIVE MOTOR ЧАСТЬ 2 FOR DETAILED ILLUSTRATED VIEW) (*KIT2) |
|
2008-2009 |
|
| 002 |
|
HARNESS, DRV MOT BAT CONT MDL (*KIT1, KIT2) |
|
2008-2009 |
|
| 003 |
25925265 |
CLIP, BAT CBL (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 003 |
25925268 |
CLIP, BAT CBL (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
04 |
| 004 |
25870508 |
HARNESS, DRV MOT BAT SEN MDL WRG (*KIT1, KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 005 |
25870509 |
RETAINER, BAT VENT HOSE (*KIT1, KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 005 |
25926169 |
RETAINER, BAT VENT HOSE (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 006 |
|
АККУМУЛЯТОР, DRV MOT GEN (*KIT1, KIT2) |
|
2008-2009 |
|
| 007 |
|
CARRIER, GEN BAT (*KIT2) |
|
2008-2009 |
|
| 008 |
25925265 |
CLIP, BAT CBL (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 008 |
25925268 |
CLIP, BAT CBL (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
04 |
| 009 |
25925262 |
TUBE, BAT VENT (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 010 |
25925262 |
TUBE, BAT VENT (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 011 |
25925262 |
TUBE, BAT VENT (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 012 |
25925262 |
TUBE, BAT VENT (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 013 |
25870509 |
RETAINER, BAT VENT HOSE (*KIT1, KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 013 |
25926169 |
RETAINER, BAT VENT HOSE (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 014 |
|
DUCT, DRV MOT BAT CLG AIR INL (*KIT1, KIT2) |
|
2008-2009 |
|
| 015 |
25926167 |
CLIP, DRV MOT BAT TEMP SEN (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
04 |
| 017 |
|
SEAL, DRV MOT BAT CLG AIR OTLT DUCT (PART OF 18) (*KIT2) |
|
2008-2009 |
|
| 018 |
15293030 |
DUCT, BAT CLG AIR OTLT (INCLS 17) (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 018 |
25925258 |
DUCT, BAT CLG AIR OTLT (INCLS 17) (FAN CONNECTOR) (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 018 |
25925287 |
DUCT, BAT CLG AIR OTLT (INCLS 17) (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 019 |
25926177 |
INSULATOR, DRV MOT BAT VENT FAN (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
03 |
| 020 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 021 |
25870518 |
FAN, GEN BAT VENT (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 022 |
|
БОЛТ, DRV MOT BAT CLG BLO (*KIT2) |
|
2008-2009 |
|
| 023 |
|
DUCT, DRV MOT BAT CLG FRT AIR OTLT (*KIT2) |
|
2008-2009 |
|
| 024 |
25870510 |
RELAY, GEN BAT VENT FAN (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 025 |
|
АККУМУЛЯТОР, DRV MOT GEN (SEE ЧАСТЬ 2 FOR ADDITIONAL COMPONENTS) (*KIT2) |
|
2008-2009 |
|
| K01 |
19168294 |
АККУМУЛЯТОР KIT, DRV MOT (INCLS 2-6, 8-15) |
CK1 (06) (HP2) |
2008-2008 |
01 |
| K02 |
19180442 |
АККУМУЛЯТОР KIT, DRV MOT (INCLS COMPLETE АККУМУЛЯТОР ASM, NEG TERM CVR 4 SCREWS) (INCLS 1-25) |
CK1 (06) (HP2) |
2008-2009 |
01 |
