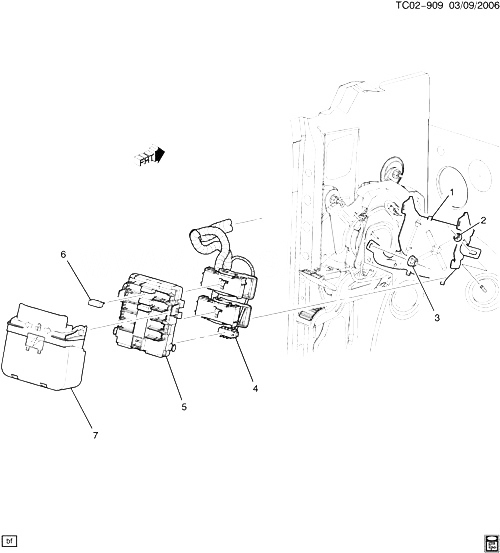

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25867232 |
BRACKET, DA WRG HARN J/BLK |
CK1, 2, 3 (EXC E29) |
2007-2009 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA WRG HARN J/BLK BRKT)
|
2007-2009 |
01 |
|
| 003 |
11516780 |
ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917)
|
2007-2009 |
03 |
|
| 004 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 005 |
15780696 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06) (AN3, JF4) |
2008-2008 |
01 |
| 005 |
15780696 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06) (EXC JF4, PPV, 5W4) |
2008-2008 |
01 |
| 005 |
15939775 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06-36) (AE7, AZ3, A95, JF4) |
2008-2008 |
01 |
| 005 |
15939775 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06-36) (PPV, 5W4) |
2008-2008 |
01 |
| 006 |
12088575 |
BREAKER, CIRCUIT, 25AMP, WHITE (PART OF 5)
|
2007-2009 |
03 |
|
| 006 |
15319848 |
BREAKER, CIRC (PART OF 5) (50 AMP MAXI TYPE I) |
CK107 (06) (PPV, 5W4) |
2007-2009 |
03 |
| 006 |
19116527 |
BREAKER, CIRC (PART OF 5) (25 AMP MANUAL RESET) |
CK1 (06-36) |
2007-2009 |
01 |
| 007 |
15200870 |
COVER, DA WRG HARN J/BLK |
CK1, 2, 3 |
2007-2009 |
01 |
