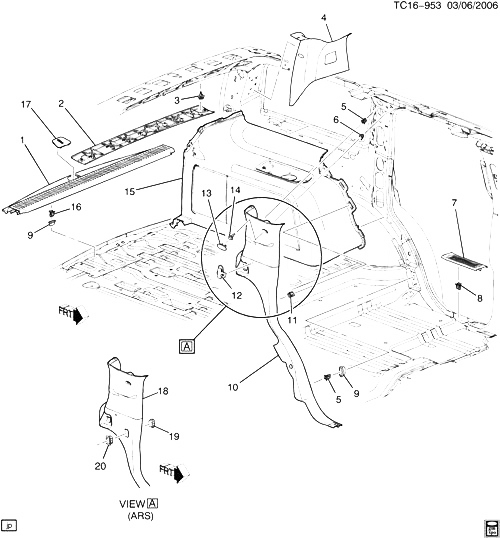

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931758 |
PLATE, R/FLR RR TR (INCLS 16) (CASHMERE) |
CK1, 2 (06) (33I) (EXC Y91) |
2009-2009 |
01 |
| 001 |
15931759 |
PLATE, R/FLR RR TR (INCLS 16) (TITANIUM) |
CK1, 2 (06) (83I) (EXC Y91) |
2007-2009 |
01 |
| 001 |
15931760 |
PLATE, R/FLR RR TR (INCLS 16) (EBONY) |
CK1, 2 (06) (19I) (EXC Y91) |
2009-2009 |
01 |
| 002 |
15905684 |
MOLDING, BK BODY OPG GARN (INCLS 3) (CASHMERE) |
CK1, 2 (06) (33I) |
2009-2009 |
01 |
| 003 |
11561654 |
RETAINER, C/PLR G/MLDG (PART OF 2) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800)
| CK1, 2 (06) (X88, Z88) |
2007-2009 |
04 |
|
| 004 |
|
MOLDING, BODY RR COR UPR GARN (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10, 18)
|
2007-2009 |
10 |
|
| 006 |
11609651 |
CLIP, BODY L/PLR G/MLDG (PART OF 10, 18) (M21.8X15.0X20.5) (14.731) |
CK1, 2 (06) |
2007-2009 |
02 |
| 007 |
15873279 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (06) (STZ, 33I) |
2009-2009 |
02 |
| 007 |
15873280 |
PLATE, RR S/D SILL TR (INCLS 8) (TITANIUM) |
CK107 (06) (STZ, 83I) |
2009-2009 |
02 |
| 007 |
15873281 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY)
| CK107 (06) (STZ, X88, 19I) |
2009-2009 |
02 |
|
| 007 |
25844292 |
PLATE, RR S/D SILL TR (INCLS 8) (TITANIUM) |
CK1, 2 (06-36) (83I) (EXC STZ, Y91) |
2009-2009 |
02 |
| 007 |
25977910 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (06) (X88, Z88, 33I) (EXC STZ, Y91) |
2009-2009 |
01 |
| 007 |
25977911 |
PLATE, RR S/D SILL TR (INCLS 8) (TITANIUM) |
CK107 (06) (X88, Z88, 83I) (EXC STZ, Y91) |
2009-2009 |
02 |
| 007 |
25977912 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) |
CK107 (06) (X88, Z88, 19I) (EXC STZ, Y91) |
2009-2009 |
02 |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7)
|
2007-2009 |
04 |
|
| 009 |
15043000 |
PLUG, R/CMPT SILL TR PLT HOLE (38.0 X 17.0 X 18.0MM) (OBLONG) (16.600) |
CK1, 2 (06) |
2007-2009 |
10 |
| 010 |
15875101 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (39I) (EXC ARS) |
2009-2009 |
01 |
| 010 |
15875107 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (39I) (EXC ARS) |
2009-2009 |
01 |
| 010 |
15900723 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) |
2009-2009 |
01 |
| 010 |
15900724 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) |
2007-2009 |
01 |
| 010 |
15900725 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
| 010 |
15900729 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) |
2009-2009 |
01 |
| 010 |
15900730 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) |
2007-2009 |
01 |
| 010 |
15900731 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
|
| 010 |
15900735 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2009 |
01 |
| 010 |
15900736 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2009 |
01 |
| 010 |
15900737 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (ARS, 19I) |
2009-2009 |
01 |
|
| 010 |
15900738 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (ARS, 39I) |
2009-2009 |
01 |
| 010 |
15900741 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2009 |
01 |
| 010 |
15900742 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2009 |
01 |
| 010 |
15900743 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (ARS, 19I) |
2009-2009 |
01 |
|
| 010 |
15900744 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (ARS, 39I) |
2009-2009 |
01 |
| 010 |
25815172 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 22I) (EXC ARS) |
2007-2009 |
01 |
| 010 |
25815173 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 22I) (EXC ARS) |
2007-2009 |
01 |
| 010 |
25815174 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) |
CK107 (06) (ARS, X88, Z88, 22I) |
2007-2009 |
01 |
| 010 |
25815175 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) |
CK107 (06) (ARS, X88, Z88, 22I) |
2007-2009 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10, 18)
|
2007-2009 |
08 |
|
| 012 |
15214080 |
GUIDE, R/SEAT SHLDR BELT (PART OF 10, 18) (TITANIUM) |
CK1, 2 (06) (X88, Z88, 83I) |
2007-2009 |
02 |
| 012 |
15214081 |
GUIDE, R/SEAT SHLDR BELT (PART OF 10, 18) (EBONY) |
CK1, 2 (06) (19I) |
2009-2009 |
02 |
| 013 |
15278075 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (GRAY)
| CK107 (06) (19I, 83I) |
2009-2009 |
01 |
|
| 013 |
15278076 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (GRAY)
| CK107 (06) (19I, 83I) |
2009-2009 |
01 |
|
| 013 |
15278083 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (39I) |
2009-2009 |
01 |
| 013 |
15278084 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (39I) |
2009-2009 |
01 |
| 014 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 10, 18) (8.977)
|
2007-2009 |
02 |
|
| 015 |
|
PANEL, BODY SI TR (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) (EBONY) |
|
2007-2009 |
|
| 016 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1)
|
2007-2009 |
10 |
|
| 017 |
15274514 |
COVER, L/GATE LK STKR (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
01 |
| 017 |
15274515 |
COVER, L/GATE LK STKR (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2009 |
01 |
| 017 |
15274516 |
COVER, L/GATE LK STKR (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
01 |
| 018 |
15875101 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (39I) (EXC ARS) |
2009-2009 |
01 |
| 018 |
15875107 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (39I) (EXC ARS) |
2009-2009 |
01 |
| 018 |
15900723 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) |
2009-2009 |
01 |
| 018 |
15900724 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) |
2007-2009 |
01 |
| 018 |
15900725 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
| 018 |
15900729 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) |
2009-2009 |
01 |
| 018 |
15900730 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM/GRANITE OPAL) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) |
2007-2009 |
01 |
| 018 |
15900731 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
|
| 018 |
15900735 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2009 |
01 |
| 018 |
15900736 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2009 |
01 |
| 018 |
15900737 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (ARS, 19I) |
2009-2009 |
01 |
|
| 018 |
15900738 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (ARS, 39I) |
2009-2009 |
01 |
| 018 |
15900741 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2009 |
01 |
| 018 |
15900742 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2009 |
01 |
| 018 |
15900743 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (DUAL TONE PART) (GRAY UPR)
| CK107 (06) (ARS, 19I) |
2009-2009 |
01 |
|
| 018 |
15900744 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (ARS, 39I) |
2009-2009 |
01 |
| 018 |
25815172 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 22I) (EXC ARS) |
2007-2009 |
01 |
| 018 |
25815173 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY/CASHMERE) (DUAL TONE PART) |
CK107 (06) (X88, Z88, 22I) (EXC ARS) |
2007-2009 |
01 |
| 018 |
25815174 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) |
CK107 (06) (ARS, X88, Z88, 22I) |
2007-2009 |
01 |
| 018 |
25815175 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) |
CK107 (06) (ARS, X88, Z88, 22I) |
2007-2009 |
01 |
| 019 |
15113408 |
SWITCH, R/SEAT ADJR (PART OF 18) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2009 |
01 |
| 020 |
15214082 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (CASHMERE) |
CK1, 2 (06) (ARS, 33I, 39I) |
2009-2009 |
02 |
| 020 |
15214083 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (TITANIUM) |
CK1, 2 (06) (ARS, X88, Z88, 83I) |
2007-2009 |
02 |
| 020 |
15214084 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (EBONY) |
CK1, 2 (06) (ARS, 19I) |
2009-2009 |
02 |
