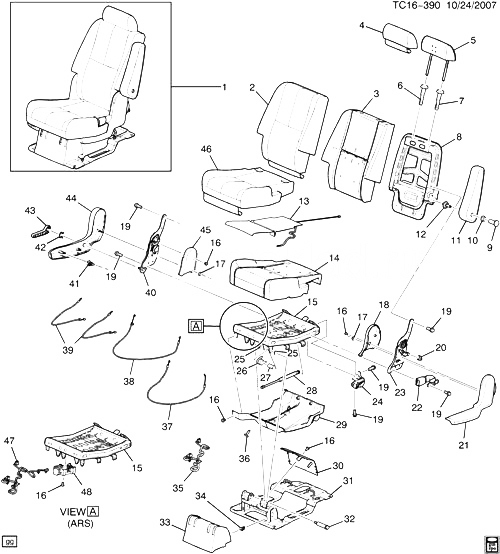

(TC16-390) - 2007-2009 CK107(06) ЗАДНЕЕ СИДЕНЬЕ/BUCKET-RH (BUCKET AL4) CHEVROLET TAHOE HYBRID (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15865176 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, 193) (EXC ARS, KA6, KB6, Y91) 2009-2009 01
001 15865177 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, 333) (EXC ARS, KA6, KB6, Y91) 2009-2009 01
001 15865178 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, 833) (EXC ARS, KA6, KB6, Y91) 2009-2009 01
001 15865195 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ARS, 193) (EXC KA6, KB6, Y91) 2009-2009 01
001 15865196 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, ARS, 333) (EXC KA6, KB6, Y91) 2009-2009 01
001 15865197 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, ARS, 833) (EXC KA6, KB6, Y91) 2009-2009 01
001 15890899 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, KA6, 193) (EXC ARS, KB6, Y91) 2009-2009 01
001 15890900 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, KA6, 333) (EXC ARS, KB6, Y91) 2009-2009 01
001 15890901 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, KA6, 833) (EXC ARS, KB6, Y91) 2009-2009 01
001 15890991 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ARS, KA6, 193) (EXC KB6, Y91) 2009-2009 01
001 15890992 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, ARS, KA6, 333) (EXC KB6, Y91) 2009-2009 01
001 15890993 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, ARS, KA6, 833) (EXC KB6, Y91) 2009-2009 01
001 25930944 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, KA6, KB6, 196) (EXC ARS, Y91) 2009-2009 01
001 25930945 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, KA6, KB6, 336) (EXC ARS, Y91) 2009-2009 01
001 25930946 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, KA6, KB6, 836) (EXC ARS, Y91) 2009-2009 01
001 25930958 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ARS, KA6, KB6, 196) (EXC Y91) 2009-2009 01
001 25930959 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, ARS, KA6, KB6, 336) (EXC Y91) 2009-2009 01
001 25930960 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, ARS, KA6, KB6, 836) (EXC Y91) 2009-2009 01
001 25931068 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, KB6, 196) (EXC ARS, KA6, Y91) 2009-2009 01
001 25931069 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, KB6, 336) (EXC ARS, KA6, Y91) 2009-2009 01
001 25931070 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, KB6, 836) (EXC ARS, KA6, Y91) 2009-2009 01
001 25931092 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ARS, KB6, 196) (EXC KA6, Y91) 2009-2009 01
001 25931093 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, ARS, KB6, 336) (EXC KA6, Y91) 2009-2009 01
001 25931094 SEAT, RR (INCLS 2-48) (TITANIUM) CK107 (06) (AL4, ARS, KB6, 836) (EXC KA6, Y91) 2009-2009 01
002 15865722 COVER, R/SEAT BK CUSH (EBONY) CK1, 2 (06) (AL4, 193) 2009-2009 01
002 15865722 COVER, R/SEAT BK CUSH (EBONY) CK1, 2 (06) (AL4, 196) 2009-2009 01
002 15865723 COVER, R/SEAT BK CUSH (CASHMERE) CK1, 2 (06) (AL4, 333) 2009-2009 01
002 15865723 COVER, R/SEAT BK CUSH (CASHMERE) CK1, 2 (06) (AL4, 336) 2009-2009 01
002 15865724 COVER, R/SEAT BK CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) 2009-2009 01
002 15865724 COVER, R/SEAT BK CUSH (TITANIUM) CK1, 2 (06) (AL4, 836) 2009-2009 01
002 25931441 COVER, R/SEAT BK CUSH (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2009 01
002 25931442 COVER, R/SEAT BK CUSH (CASHMERE) CK1, 2 (06) (AL4, KA6, KB6, 336) 2009-2009 01
002 25931443 COVER, R/SEAT BK CUSH (TITANIUM) CK1, 2 (06) (AL4, KA6, KB6, 836) 2009-2009 01
003 15291602 PAD, R/SEAT BK CUSH CK1, 2 (06) (AL4) 2007-2009 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2007-2009
005 15824668 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 193, 223, 843) 2007-2009 02
005 15824668 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 196, 226, 846) 2009-2009 02
005 15824669 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 313, 333) 2007-2009 02
005 15824669 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 316, 336) 2009-2009 02
005 15824670 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107 (06) (AL4, 833) 2007-2009 02
005 15824670 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107 (06) (AL4, 836) 2009-2009 02
005 15824672 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 194) (EXC AX4) 2007-2009 02
005 15824672 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 197) (EXC AX4) 2009-2009 02
005 25858321 RESTRAINT, R/SEAT HD (INCLS 4) (COCOA) CK1 (06) (AL4, 415) 2008-2009 02
005 25928791 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 394) 2007-2009 02
005 25928791 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 397) 2009-2009 02
006 15279347 GUIDE, R/SEAT #2 H/RST (EBONY) (W/BUTTON) CK1, 2 (06) (19I, 22I, 88I) 2007-2009 02
006 15279348 GUIDE, R/SEAT #2 H/RST (CASHMERE) (W/BUTTON) CK1, 2 (31I, 33I, 39I) 2007-2009 02
006 15279349 GUIDE, R/SEAT #2 H/RST (TITANIUM) (W/BUTTON) CK1, 2, 3 (83I, 84I) 2007-2009 02
006 15279351 GUIDE, R/SEAT #2 H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (19I, 84I) 2009-2009 02
006 15279352 GUIDE, R/SEAT #2 H/RST (CASHMERE) (W/O BUTTON) CK1 (31I, 33I, 39I) 2007-2009 02
006 15279353 GUIDE, R/SEAT #2 H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (83I, 84I) 2007-2009 02
007 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2 (06) (19I, 22I, 84I) 2007-2009 02
007 15279348 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
007 15279349 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06) (83I) 2007-2009 02
007 15279351 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (AL4, 19I, 22I, 84I) 2009-2009 02
007 15279352 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06) (31I, 33I, 39I) 2007-2009 02
007 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2007-2009 02
008 15269769 FRAME, R/SEAT BK CUSH CK1, 2 (06) (AL4) 2007-2009 01
009 15279689 CAP, R/SEAT ACTR FIN CVR BOLT (EBONY) CK1, 2 (06) (AL4, 19I, 22I, 84I) 2007-2009 02
009 15279690 CAP, R/SEAT ACTR FIN CVR BOLT (CASHMERE) CK1, 2 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
009 15279691 CAP, R/SEAT ACTR FIN CVR BOLT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 02
010 11570119 ГАЙКА, R/SEAT A/RST (T/W 11570115 STUD) CK1, 2 (06) (AL4) 2007-2009 02
011 15865501 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 193, 223, 843) 2007-2009 01
011 15865501 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 196, 226, 846) 2009-2009 01
011 15865502 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AL4, 313, 333) 2007-2009 01
011 15865502 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AL4, 316, 336) 2009-2009 01
011 15865503 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 833) 2007-2009 01
011 15865503 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 836) 2009-2009 01
012 11570115 STUD, R/SEAT A/RST (T/W 11570119 NUT) CK1, 2 (06) (AL4) 2007-2009 02
013 15824761 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2009 01
014 15291604 PAD, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2009 01
015 15269765 FRAME, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2009 01
016 11570116 SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2009 09
017 11562384 ГАЙКА, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2009 02
018 15280113 COVER, R/SEAT RECL INR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
018 15280114 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
018 15280115 COVER, R/SEAT RECL INR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2009 01
018 15280116 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 30I) 2007-2009 01
019 11562378 BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2009 12
020 15279464 KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716) CK1, 2, 3 2007-2009 02
021 15279719 COVER, R/SEAT RECL INR FIN (INCLS 41) (EBONY) (OUTER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
021 15279720 COVER, R/SEAT RECL INR FIN (INCLS 41) (CASHMERE) (OUTER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
021 15279721 COVER, R/SEAT RECL INR FIN (INCLS 41) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2009 01
021 15279722 COVER, R/SEAT RECL INR FIN (INCLS 41) (CASHMERE) (OUTER) CK107 (06) (AL4, 30I) 2007-2009 01
022 19121593 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (EBONY) CK1, 2 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
022 19121595 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (CASHMERE) CK1, 2 (06) (AL4, 33I, 39I) 2009-2009 01
022 19121596 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ (BKL SI) (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 01
023 25896462 RECLINER, R/SEAT INR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2008-2009 01
024 15275888 LATCH, R/SEAT RSR (INNER OUTER) CK107 (06) (AL4) 2007-2009 02
025 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AL4) 2007-2009 08
026 15275901 ПРУЖИНА, R/SEAT RECL (TUMBLE) CK1, 2 (06) (AL4) 2007-2009 02
027 15275903 ПРУЖИНА, R/SEAT RECL (MANDREL) CK1, 2 (06) (AL4) 2007-2009 02
028 15275905 STRUT, R/SEAT CK1, 2 (06) (AL4) 2007-2009 02
029 15280123 PANEL, R/SEAT CUSH TR (EBONY) (16.716) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
029 15280124 PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
029 15280125 PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) CK107 (06) (AL4, 833) 2007-2009 01
030 15279609 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
030 15279610 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
030 15279611 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK107 (06) (AL4, 83I) 2007-2009 01
030 15279612 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 30I) 2007-2009 01
031 15269772 RISER, R/SEAT CK107 (06) (AL4) 2007-2009 01
032 11562379 БОЛТ, R/SEAT HGE (M10X1.5X92) CK1, 2 2007-2009 02
033 15279599 COVER, R/SEAT RSR FIN (INCLS 34) (EBONY) (FRONT) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 02
033 15279600 COVER, R/SEAT RSR FIN (INCLS 34) (CASHMERE) (FRONT) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
033 15279601 COVER, R/SEAT RSR FIN (INCLS 34) (TITANIUM) (FRONT) CK107 (06) (AL4, 83I) 2007-2009 02
033 15279602 COVER, R/SEAT RSR FIN (INCLS 34) (CASHMERE) (FRONT) CK107 (06) (AL4, 30I) 2007-2009 02
034 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 33) 2007-2009
035 15843764 HARNESS, R/SEAT HTR CK1, 2 (06) (EXC ARS, KB6) 2007-2009 01
035 15843765 HARNESS, R/SEAT HTR CK1, 2 (06) 2007-2009 02
036 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AL4, 19I) 2009-2009 02
036 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
036 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 02
037 15275913 CABLE, R/SEAT BK CUSH LAT CK1, 2 (06) (AL4) 2007-2009 02
038 15275915 CABLE, R/SEAT LAT (INBOARD) (SYNCH) CK1, 2 (06) (AL4) 2007-2009 02
039 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AL4) 2007-2009 02
040 25896460 RECLINER, R/SEAT OTR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2008-2009 01
041 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 21, 44) 2007-2009
042 RETAINER, R/SEAT ADJR RLR (PART OF 43) 2007-2009
043 15279419 HANDLE, R/SEAT RECL (INCLS 42) (EBONY) CK1, 2 (06) (19I, 22I, 84I) 2007-2009 01
043 15279420 HANDLE, R/SEAT RECL (INCLS 42) (CASHMERE) CK1, 2 (06) (31I, 33I, 39I) 2007-2009 01
043 15279429 HANDLE, R/SEAT RECL (INCLS 42) (TITANIUM) CK1, 2 (06) (83I) 2007-2009 01
044 15279699 COVER, R/SEAT RECL OTR FIN (INCLS 41) (EBONY) (OUTER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
044 15279700 COVER, R/SEAT RECL OTR FIN (INCLS 41) (CASHMERE) (OUTER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
044 15279701 COVER, R/SEAT RECL OTR FIN (INCLS 41) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2009 01
045 15279709 COVER, R/SEAT RECL OTR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
045 15279710 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
045 15279711 COVER, R/SEAT RECL OTR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2009 01
045 15279712 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 30I) 2007-2009 01
046 15865730 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, 196) (EXC KB6) 2009-2009 01
046 15865731 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, 336) (EXC KB6) 2009-2009 01
046 15865732 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) (EXC KB6) 2009-2009 01
046 15939156 COVER, R/SEAT CUSH (EBONY/TITANIUM) CK1, 2 (06) (AL4, 843) 2007-2009 01
046 15939156 COVER, R/SEAT CUSH (EBONY/TITANIUM) CK1, 2 (06) (AL4, 846) 2009-2009 01
046 15939157 COVER, R/SEAT CUSH (EBONY/MOROCCO) CK1, 2 (06) (AL4, 226) 2009-2009 01
046 25931447 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2009 01
046 25931448 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, KA6, KB6, 336) (EXC Y91) 2009-2009 01
046 25931449 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, KB6, 836) 2009-2009 01
048 15824750 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AL4) 2007-2009 01
