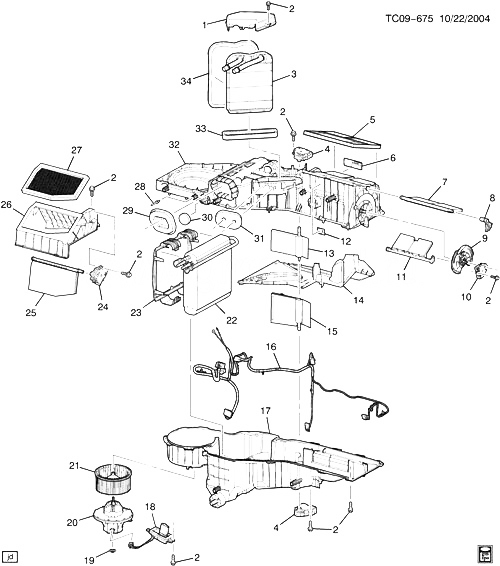

(TC09-675) - 2007-2009 CK1,2(06) КОНДИЦИОНЕР И МОДУЛЬ ПОДОГРЕВАТЕЛЯ В СБОРЕ (MANUAL TEMPERATURE CONTROL CJ3) CHEVROLET TAHOE HYBRID (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89018299 CASE, HTR CK1, 2, 3 2007-2009 01
002 11609829 БОЛТ, A/C EVPR TUBE CLIP (4.2X2.25X16) (9.786) CK1, 2, 3 (CJ2, CJ3) 2007-2009 17
003 89018297 CORE, HTR (INCLS 2 SEALS) (ACDelco #15-62960) CK1, 2, 3 (CJ2, CJ3, C42) 2007-2009 01
004 89018365 ACTUATOR, TEMP VLV (ACDelco #15-72971) CK1, 2 (06) (CJ2, CJ3) 2007-2009 02
005 SEAL, BLO UPR CASE (*KIT3) 2007-2009
006 LABEL, AIR DISTR DUCT IDENT 2007-2009
007 89018304 VALVE, DEFR (PART OF 32) (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
008 52474960 LEVER, MODE VLV CK1, 2, 3 (CJ2, CJ3) 2008-2009 01
009 CAM, MODE CONT (*KIT1) 2007-2009
010 ACTUATOR, AIR INL VLV (*KIT1) 2007-2009
011 89018304 VALVE, DEFR (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
012 LABEL, HTR A/C EVPR BLO MDL IDENT 2007-2009
013 89018307 VALVE, TEMP CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
014 89018302 SHIELD, HTR A/C EVPR BLO MDL HT CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
015 89018306 VALVE, TEMP CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
016 20760603 HARNESS, A/C MDL WRG CK1, 2 (06) (CJ3) 2009-2009 01
017 15780376 CASE, HTR A/C EVPR BLO LWR CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
018 15141283 MODULE, BLO MOT CONT (ACDelco #15-80863) CK1, 2, 3 2007-2009 01
019 PLUG, HTR CASE (*KIT2) 2007-2009
020 MOTOR, BLO (*KIT2) 2007-2009
021 BLOWER, (*KIT2) 2007-2009
022 89018296 EVAPORATOR, A/C (ACDelco #89018296) CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
023 89018295 SEAL, A/C EVPR CK1, 2, 3 2007-2009 01
024 89018365 ACTUATOR, AIR INL VLV (ACDelco #15-72971) CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
025 89018304 VALVE, DEFR (PART OF 26) (ACDelco #15-50561) CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
026 15780375 INLET, AIR (INCLS 25) (INCLS DOOR SEALS) CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
027 SEAL, AIR INL (*KIT3) 2007-2009
028 89018612 STUD, HTR A/C EVPR BLO MDL (M6X1X33MM TORX/COLR) CK1, 2, 3 2007-2009 02
029 89018295 SEAL, A/C EVPR (*KIT3) CK1, 2, 3 2007-2009 01
030 SEAL, HTR A/C EVPR BLO MDL DRN TUBE (*KIT3) 2007-2009
031 SEAL, HTR INL OTLT PIPE (*KIT3) 2007-2009
032 15780377 CASE, HTR A/C EVPR BLO UPR (INCLS 7) CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
033 SEAL, HTR CORE (SEPARATOR) (*KIT3) 2007-2009
034 SEAL, HTR CORE (*KIT3) 2007-2009
K01 89018374 ACTUATOR, MODE CONT CAM (INCLS 9, 10) (ACDelco #15-73952) CK1, 2 (06) (CJ2, CJ3) 2007-2009 01
K02 20760618 MOTOR, BLO (INCLS 19-21) (9.215) (ACDelco #15-81644) CK1, 2, 3 (CJ2, CJ3) 2009-2009 01
K02 20760618 MOTOR, BLO (INCLS 19-21) (ACDelco #15-81644) CK1, 2, 3 (CJ2, CJ3) 2009-2009 01
K03 89018784 SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 5, 27, 29-31, 33, 34) CK1, 2, 3 (CJ2, CJ3) 2007-2009 01
