| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

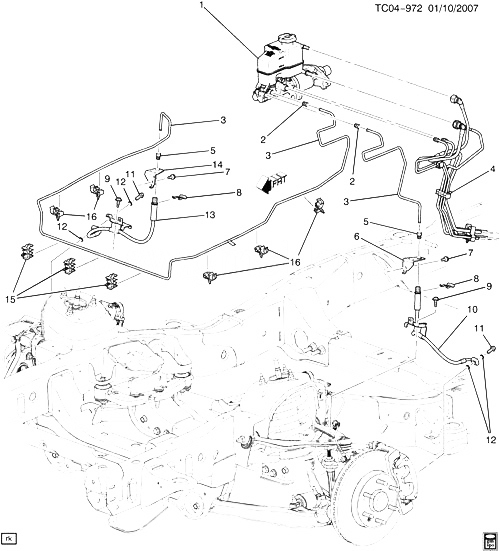

| 001 |
20759706 |
CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
CK107 (06) (J92) |
2009-2009 |
01 |
| 002 |
11562075 |
ГАЙКА, FRT BRK FRT PIPE (M12X1.5X17) (INV FLARE)
| CK1, 2, 3 |
2008-2009 |
AR |
|
| 003 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK)
|
2008-2009 |
AR |
|
| 004 |
|
PIPE, BRK PRESS MOD VLV (СМ. ГРУППУ 04.000 ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ ЧАСТЬ 1 FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 005 |
11518522 |
ГАЙКА, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (FRT BRK FRT PIPE)
|
2008-2009 |
01 |
|
| 006 |
|
BRACKET, FRT BRK HOSE CLIP (PART OF 10) |
|
2008-2009 |
|
| 006 |
|
BRACKET, FRT BRK HOSE CLIP (PART OF 10) |
|
2009-2009 |
|
| 007 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) |
|
2008-2009 |
02 |
| 008 |
|
CLIP, FRT BRK HOSE (PART OF 10, 13) |
|
2008-2009 |
|
| 008 |
|
CLIP, FRT BRK HOSE (PART OF 10, 13) |
|
2009-2009 |
|
| 009 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE)
|
2008-2009 |
02 |
|
| 010 |
15923783 |
HOSE, FRT BRK (INCLS 6, 8, 11, 12) (ACDelco #176-1515)
| CK1 (JD9, JF3, JF7, JG4, J92) |
2009-2009 |
01 |
|
| 011 |
|
БОЛТ, FRT BRK HOSE (PART OF 10, 13) |
|
2008-2009 |
|
| 011 |
|
БОЛТ, FRT BRK HOSE (PART OF 10, 13) |
|
2009-2009 |
|
| 012 |
|
WASHER, FRT BRK HOSE (PART OF 10, 13) |
|
2008-2009 |
|
| 012 |
|
WASHER, FRT BRK HOSE (PART OF 10, 13) |
|
2009-2009 |
|
| 013 |
15923784 |
HOSE, FRT BRK (INCLS 8, 11, 12, 14) (ACDelco #176-1516)
| CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2009 |
01 |
|
| 014 |
|
BRACKET, FRT BRK HOSE CLIP (PART OF 13) |
|
2008-2009 |
|
| 014 |
|
BRACKET, FRT BRK HOSE CLIP (PART OF 13) |
|
2009-2009 |
|
| 015 |
11561422 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 8 HOLE) |
CK1 (06-36) |
2008-2009 |
03 |
| 016 |
11561421 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) |
CK1 (06-36) |
2008-2009 |
05 |
