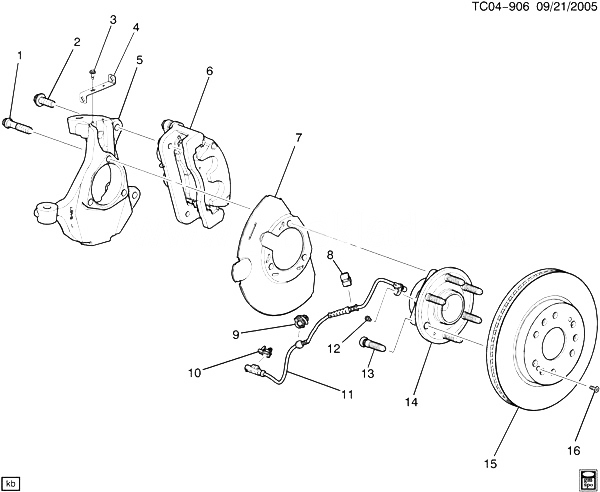

(TC04-906) - 2009 CK1(06) КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА/ПЕРЕДНЕГО И КУЛАК (EXC POLICE PACKAGE PPV) CHEVROLET TAHOE HYBRID (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15719028 БОЛТ, FRT WHL BRG (M14X1.5X70) (6.104) CK1, 2, 3 2007-2009 AR
002 15016308 БОЛТ, M14X2X40, 40 THD, 28 OD, 10.9, GM6174M, LOCTITE PATCH GM6194M (S/KNU) (4.665) 2007-2009 04
003 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT WHL SPD SEN) 2007-2009 01
004 15133409 BRACKET, FRT WHL SPD SEN CK1 (JD9, JF3, JF7, JG4, J92) 2008-2009 02
005 15942236 KNUCKLE, STRG (MCHG) CK1 2007-2009 01
005 15942237 KNUCKLE, STRG (MCHG) CK1 2007-2009 01
006 CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2009-2009
007 25918337 SHIELD, FRT BRK C1 (03-06-36-53) (JD9, J92) (EXC PPV) 2009-2009 01
007 25918338 SHIELD, FRT BRK C1 (03-06-36-53) (JD9, J92) (EXC PPV) 2009-2009 01
008 15715956 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (10.00MM) (1 HOLE CLIP) CK1 2007-2009 02
009 15267361 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (CLAM SHELL WITHOUT ALIGNMENT PIN) CK1 2007-2009 02
010 15229013 CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (SLIDE LOCK WITH ALIGNMENT PIN) CK1 2007-2009 02
011 15229012 ДАТЧИК, FRT WHL SPD (INCLS 8-10) (PART OF 14) (ACDelco #15229012) (FOR VEHICLES WITH RPO PPV-USE T/W THERMAL WRAP PN 19207924, BETWEEN WHEEL SPEED SENSOR HEAD AND FIRST CLIP.) CK1 2007-2009 02
012 15960191 БОЛТ, WHL SPD SEN (PART OF 14) (M6X1X12) CK1, 2, 3 2007-2009 AR
013 11588810 STUD, FRT WHL (PART OF 14) (M14X1.5X65) CK1, 2, 3 2007-2009 AR
014 25819677 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #FW345) (FOR VEHICLES WITH RPO PPV USE T/W THERMAL WRAP PN 19207924, BETWEEN WHL SPD SENSOR HEAD AND FIRST CLIP) C1 (03-06-36-53) 2009-2009 02
015 25819670 ROTOR, FRT BRK (13IN) (ACDelco #177-1014) CK1 (JD9, JF3, JF7, J92) (EXC PPV) 2008-2009 02
016 11609271 БОЛТ, FRT BRK ROT (M8 X 1.25 X 20) CK1 2007-2009 02
