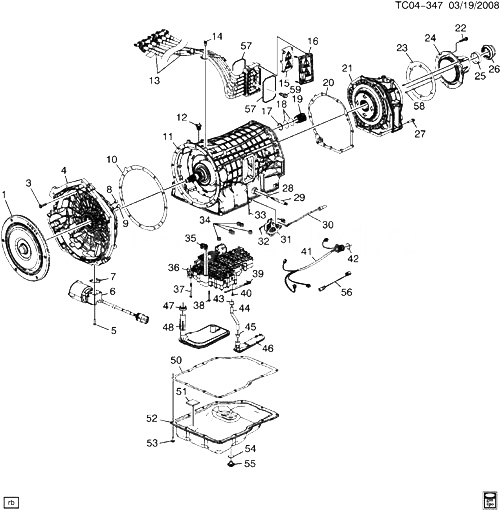

(TC04-347) - 2008-2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M99) ЧАСТЬ 1 (TWO-MODE HYBRID) CASE AND ASSOCIATED PARTS CHEVROLET TAHOE HYBRID (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 29543916 DAMPENER, A/TRNS TORQ CK1 (M99) 2008-2009 01
003 29544332 БОЛТ, A/TRNS TORQ DPNR HSG CK1 (M99) 2008-2009 12
004 HOUSING, A/TRNS TORQ DPNR (W/FLUID PMP) (СМ. ГРУППУ 04.000 INPUT HOUSING MODULE AND PUMP В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
005 29545091 БОЛТ, A/TRNS AUX FLUID PUMP CK1 (M99) 2008-2009 04
006 19168291 PUMP, A/TRNS AUX FLUID CK1 (M99) 2008-2009 01
007 29543727 ПРОКЛАДКА, A/TRNS AUX FLUID PUMP (*KIT2) CK1 (M99) 2008-2009 01
008 PLUG, A/TRNS TORQ DPNR FLUID PASG 2008-2009
009 PLUG, A/TRNS FLUID PUMP VLV 2008-2009
010 29544401 ПРОКЛАДКА, A/TRNS TORQ DPNR HSG (*KIT2) CK1 (M99) 2008-2009 01
011 CASE, A/TRNS (СМ. ГРУППУ 04.000 4TH СЦЕПЛЕНИЕ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
012 29536834 SEAL, TRANS FLUID FIL TUBE (*KIT2) CK1 (M99) 2008-2009 01
013 24245203 CABLE, DRV MOT GEN PWR INV MDL (3 PHASE) (INCLS 15, 16, 59) CK1 (M99) 2008-2009 01
014 29544413 БОЛТ, DRV MOT GEN PWR INV MDL CBL RET (DL CBL RET) CK1 (M99) 2008-2009 04
015 29544326 COVER, DRV MOT PWR INV MDL CBL TERM EXT BOLT PROTV (PART OF 13) CK1 (M99) 2008-2009 01
017 SEAL, A/TRNS WRG CONN (PART OF 19) (*KIT2, KIT3) 2008-2009
018 SEAL, A/TRNS WRG CONN (O RING) (PART OF 19) (*KIT2, KIT3) 2008-2009
019 24239878 SLEEVE, A/TRNS ELEC CONN PASG (INCLS 17, 18) CK1 (M99) 2008-2009 01
020 29544388 ПРОКЛАДКА, A/TRNS RR CASE (*KIT2) CK1 (M99) 2008-2009 01
021 CASE, A/TRNS RR (СМ. ГРУППУ 04.000 REAR CASE В СБОРЕ COMPONENTS FOR DETAILED ILLUSTRATED VIEW) 2009-2009
022 29544372 БОЛТ, A/TRNS CASE EXTN C1 (M99) 2008-2009 06
023 29544371 ПРОКЛАДКА, A/TRNS CASE EXTN (*KIT2) C1 (M99) 2008-2009 01
024 29544368 EXTENSION, A/TRNS CASE (INCLS 25, 26) (ACDelco #29544368) C1 (M99) 2008-2009 01
025 BUSHING, OUTPUT SHF (PART OF 24) 2008-2009
026 24233898 SEAL, OUTPUT SHF (PART OF 24) (*KIT2) (4.318) C1 (M99) 2008-2009 01
027 29544331 БОЛТ, TRANS RR CASE (0.683) CK1 (M99) 2008-2009 12
028 24235861 SEAL, MAN SHFT SHF (*KIT2) (ACDelco #24235861) CK1 (M99) 2008-2009 01
029 29546640 SHAFT, MAN SHFT CK1 (M99) 2009-2009 01
030 29543655 ACTUATOR, PARK PAWL CK1 (M99) 2008-2009 01
031 19168293 SWITCH KIT, A/TRNS MAN SHFT SHF POSN (INCLS 32, 33) CK1 (M99) 2008-2009 01
032 БОЛТ, A/TRNS MAN SHFT SHF POSN SW (PART OF 31) 2008-2009
033 PIN, MAN SHFT SHF (PART OF 31) 2008-2009
034 SEAL, HYBRID LOW, 1-2 CLU REG VLV (*KIT2, KIT3) 2008-2009
035 SEAL, A/TRNS FLUID PUMP (*KIT2, KIT3) 2008-2009
036 VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 HYDRAULIC МОДУЛЬ УПРАВЛЕНИЯ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
037 29543806 БОЛТ, C/VLV UPR BODY CK1 (M99) 2008-2009 02
038 29543501 БОЛТ, C/VLV UPR BODY CK1 (M99) 2008-2009 04
039 29544320 DETENT, MAN SHFT CK1 (M99) 2008-2009 01
040 24211635 БОЛТ, MAN SHFT DTNT SPR (M6X1.0X16.0) (ACDelco #24211635) CK1 (M99) 2008-2009 01
041 29546932 HARNESS, A/TRNS WRG CK1 (M99) 2009-2009 01
041 29546932 HARNESS, A/TRNS WRG (2.480) CK1 (M99) 2009-2009 01
042 SEAL, WRG CONN (*KIT2, KIT3) 2008-2009
043 SEAL, A/TRNS AUX FLUID FLTR (*KIT1) 2008-2009
044 29543724 PIPE, A/TRNS AUX FLUID PUMP OTLT CK1 (M99) 2008-2009 01
045 SEAL, A/TRNS AUX FLUID FLTR (*KIT1) 2008-2009
046 FILTER, A/TRNS AUX FLUID PUMP (*KIT1) 2008-2009
047 SEAL, A/TRNS FLUID FLTR (*KIT1) 2008-2009
048 FILTER, A/TRNS FLUID (*KIT1) 2008-2009
050 29544375 ПРОКЛАДКА, A/TRNS FLUID PAN (ACDelco #29544375) CK1 (M99) 2008-2009 01
051 29532686 MAGNET, A/TRNS FLUID PAN (PART OF 52) (ACDelco #29532686) CK1 (M99) 2008-2009 01
052 29544374 PAN, A/TRNS FLUID (INCLS 51) CK1 (M99) 2008-2009 01
053 29544333 БОЛТ, A/TRNS FLUID PAN CK1 (M99) 2008-2009 13
054 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (PART OF 55) 2008-2009
055 24233099 PLUG, A/TRNS FLUID PAN DRN (INCLS 54) (ACDelco #24233099) CK1 (M99) 2008-2009 01
056 29544334 HARNESS, A/TRNS CONT WRG HARN EXTN CK1 (M99) 2008-2009 01
057 19168300 SEAL, DRV MOT GEN PWR INV MDL CBL HSG CVR (HSG CVR) (*KIT2) CK1 (M99) 2008-2009 02
058 PIN, TRANS CASE LOC (PART OF 21) (2WD ONLY) 2008-2009
059 БОЛТ, DRV MOT GEN PWR INV MDL CBL TERM INSUL BLK (PART OF 13) 2008-2009
K01 19168277 ФИЛЬТР, A/TRNS FLUID (INCLS 43, 45-48) (ACDelco #19168277) CK1 (M99) 2008-2009 01
K02 19168275 SEAL KIT, A/TRNS SERV (INCLS 7, 10, 12, 17, 18, 20, 23, 26, 28, 34, 35, 42, 57) (FULL TRANS) CK1 (M99) 2008-2009 01
K03 19168276 SEAL KIT, A/TRNS SERV (INCLS 17, 18, 34, 35, 42) (CNTRL SOL VLV ASM) CK1 (M99) 2008-2009 01
