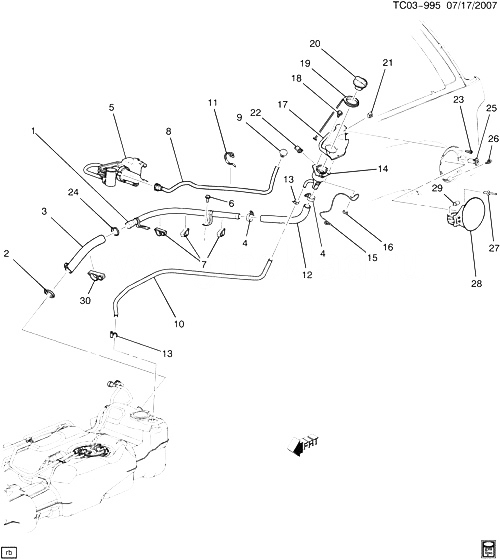

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25858609 |
PIPE, F/TNK FIL (INCLS 2-4, 7-18, 21, 22, 24, 30) (COMPLETE) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 002 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1, 3) |
|
2008-2009 |
01 |
| 003 |
15289732 |
HOSE, F/TNK FIL (INCLS 2) (PART OF 1) (FILL PIPE LOWER) |
CK107 (06) (LFA, HP2) |
2009-2009 |
01 |
| 004 |
11610235 |
CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 1) (3.003) |
|
2008-2009 |
02 |
| 005 |
15286109 |
CANISTER, AUX EVAP EMIS (СМ. ГРУППУ 03.000 УГОЛЬНЫЙ ФИЛЬТР И СОПРЯЖЕННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 006 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL VENT HOSE BRKT) |
|
2008-2009 |
02 |
| 007 |
15895653 |
CLIP, F/TNK FIL PIPE (PART OF 1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
03 |
| 008 |
15844701 |
HOSE, F/TNK FIL VENT (INCLS 9) (PART OF 1) |
CK107 (06) (LFA, HP2) |
2009-2009 |
01 |
| 009 |
15146021 |
CAP, F/TNK VENT PIPE (PART OF 1, 8) |
CK1 (06-36) |
2008-2009 |
01 |
| 010 |
|
HOSE, FUEL RTN (PART OF 1) |
|
2009-2009 |
|
| 011 |
12337820 |
STRAP, 15 TIE STRAP (PART OF 1) (ACDelco #12337820)
|
2008-2009 |
03 |
|
| 012 |
15124940 |
HOSE, F/TNK FIL (PART OF 1) (FILL PIPE UPPER) |
CK107, 109 (06-36) |
2008-2009 |
01 |
| 013 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (PART OF 1) |
|
2008-2009 |
02 |
| 014 |
25858610 |
PIPE, F/TNK FIL (INCLS 15, 16, 22) (PART OF 1) (INCL PIPE, SUPPORT, STRAP, RIVET, BRACKET, ADAPTERS AND SEAL) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
| 015 |
15217509 |
STRAP, F/TNK FIL PIPE GND (PART OF 1, 14) |
CK107, 109 (06-36) |
2008-2009 |
01 |
| 016 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 1, 14) |
|
2009-2009 |
|
| 017 |
25844432 |
HOUSING, F/TNK FIL PIPE (PART OF 1)
| CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
|
| 018 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (PART OF 1) |
|
2008-2009 |
03 |
| 019 |
10403773 |
RETAINER, F/TNK FIL CAP STRP (PUSH IN) (PART OF 20)
| CK1, 2, 309 (LFA, LH6, LU3, LY2, LY5, LY6, L76) |
2009-2009 |
01 |
|
| 020 |
|
CAP, F/TNK FIL LK (INCLS 19) |
|
2008-2009 |
|
| 020 |
15225006 |
CAP, F/TNK FIL (INCLS 19) (T-TYPE TETHER) (ACDelco #15225006) |
CK1, 2, 309 (LFA, LH6, LU3, LY2, LY5, LY6, L76) |
2008-2009 |
01 |
| 021 |
15022652 |
ГАЙКА, F/TNK FIL PIPE HSG (PART OF 1) (U-SHAPED NUT) (8.921) |
CK1, 2, 3 |
2008-2009 |
02 |
| 022 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 1, 14)
|
2008-2009 |
AR |
|
| 023 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003) |
|
2008-2009 |
02 |
| 024 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) |
|
2008-2009 |
01 |
| 025 |
25880365 |
ПРУЖИНА, F/TNK FIL DR (12.945) (PRIOR TO INSTALL SEAL VOIDS IN PLUNGER HSG W/FLEXIABLE SEALER)
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 026 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (F/TNK FIL PIPE HSG)
|
2008-2009 |
01 |
|
| 027 |
11519023 |
RIVET-POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (F/TNK FIL DR HGE)
|
2008-2009 |
02 |
|
| 028 |
15940678 |
DOOR, F/TNK FIL (INCLS 29) |
CK107 (06) |
2008-2009 |
01 |
| 029 |
15845031 |
BUMPER, F/TNK FIL DR (PART OF 28) |
CK107 (06) |
2008-2009 |
01 |
| 030 |
15895654 |
CLIP, F/TNK FIL PIPE (PART OF 1) |
CK107 (06) (LFA, HP2) |
2008-2009 |
01 |
