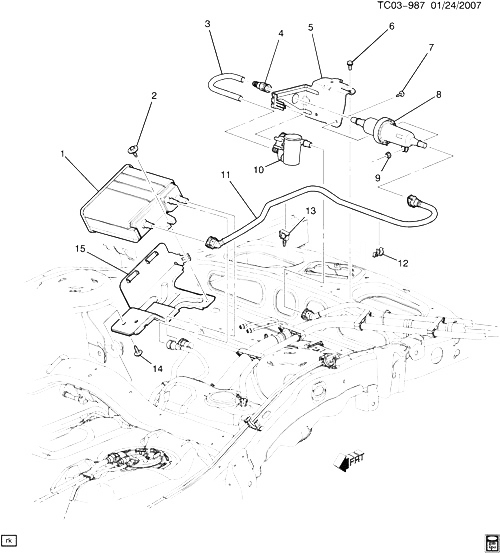

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15286158 |
CANISTER, EVAP EMIS (W/O VENT VLV SOL) (WITHOUT BRACKET) (*KIT1) (ACDelco #215-638) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 002 |
10200334 |
БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (*KIT1) (12.243)
| CK107 (06) |
2008-2009 |
01 |
|
| 003 |
|
HOSE, AUX EVAP EMIS CNSTR (*KIT2) |
|
2008-2009 |
|
| 004 |
|
CONNECTOR, EVAP EMIS CNSTR PURGE SOL VLV (*KIT2) |
|
2008-2009 |
|
| 005 |
15286150 |
BRACKET, AUX EVAP EMIS CNSTR (*KIT2) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 006 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (EVAP EMIS CNSTR VENT SOL VLV BRKT) |
|
2008-2009 |
02 |
| 007 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AUX EVAP EMIS CNSTR BRKT) (*KIT2)
|
2008-2009 |
02 |
|
| 008 |
15286148 |
CANISTER, AUX EVAP EMIS (*KIT2) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 009 |
11516075 |
ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (AUX EVAP EMIS CNSTR BRKT) (*KIT2)
|
2008-2009 |
02 |
|
| 010 |
25932566 |
VALVE, AUX EVAP EMIS CNSTR PURGE SOL (*KIT2) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 011 |
|
HOSE, EVAP EMIS CNSTR (INCLS 12, 13) |
|
2008-2009 |
|
| 012 |
15896282 |
CLIP, EVAP EMIS CNSTR HOSE (PART OF 11) (IN LINE CLIP) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 013 |
15011302 |
CLIP, EVAP EMIS CNSTR HOSE (PART OF 11) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 014 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2008-2009 |
02 |
|
| 015 |
15113366 |
BRACKET, EVAP EMIS CNSTR (*KIT1) |
CK107 (06) |
2008-2009 |
01 |
| K01 |
15286108 |
CANISTER, EVAP EMIS (INCLS 1, 2, 15) (WITH BRACKET) (ACDelco #215-637) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| K02 |
15286109 |
CANISTER, AUX EVAP EMIS (INCLS 3-5, 7-10) |
CK107 (06) (HP2) |
2008-2009 |
01 |
