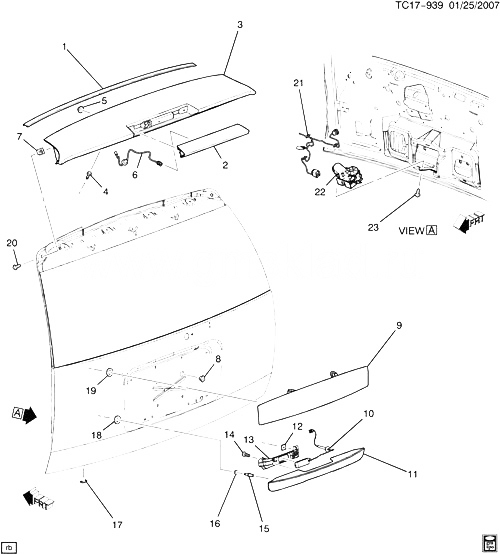

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25854475 |
SEAL, L/GATE UPR APLQ (PART OF 3) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2009 |
01 |
| 002 |
15272016 |
LAMP, HIGH MT STOP (PART OF 3) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2009 |
01 |
| 003 |
25794624 |
APPLIQUE, L/GATE UPR (INCLS 1, 2, 4-7) (PAINT TO MATCH) (W/O HIGH MT STOP LMP) |
CK1, 2 (06) (X88, Z88) |
2008-2009 |
01 |
| 003 |
25938177 |
APPLIQUE, L/GATE UPR (INCLS 1, 2, 4-7) (PRIMED SURFACE) (W/HIGH MT STOP LMP) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2009 |
01 |
| 004 |
|
RETAINER, L/GATE APLQ (PART OF 3) |
|
2008-2009 |
|
| 005 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PART OF 3)
|
2008-2009 |
02 |
|
| 006 |
15857136 |
WIRE, HIGH MT S/LP (PART OF 3) |
CK1, 2 (06) (X88, Z88) |
2008-2008 |
01 |
| 007 |
|
ГАЙКА, L/GATE APLQ (PART OF 3) |
|
2008-2009 |
|
| 008 |
11569914 |
ГАЙКА, RR LIC PLT (SINGLE NUT) (EXCLS SEAL)
| CK1, 2 (06) |
2008-2009 |
04 |
|
| 009 |
|
APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 CENTER APPLIQUE FOR DETAILED ILLUSTRATED VIEWS) (PAINT TO MATCH) (INCLS STUDS, CLIPS, W/O LIC PLT LAMP) |
|
2008-2009 |
|
| 010 |
15106857 |
SWITCH, L/GATE REL (PART OF 11) (ACDelco #D1499F)
| CK1, 2 (06) |
2008-2009 |
01 |
|
| 011 |
15842442 |
HANDLE, L/GATE O/S (INCLS 10, 12-16) (PAINT TO MATCH) |
CK1, 2 (06) |
2008-2009 |
01 |
| 012 |
15881342 |
ПРОКЛАДКА, L/GATE O/S HDL (PART OF 11) |
CK1, 2 (06) |
2008-2009 |
02 |
| 013 |
|
COVER, L/GATE REL SW OPG (PART OF 11) |
|
2008-2009 |
|
| 014 |
|
БОЛТ, L/GATE REL SW (PART OF 11) |
|
2008-2009 |
|
| 015 |
11562251 |
STUD, L/GATE O/S PULL HDL (PART OF 11) |
CK1, 2 (06) |
2008-2009 |
04 |
| 016 |
12335645 |
ПРОКЛАДКА, L/GATE WDO O/S HDL (PART OF 11) (7.800) |
CK1, 2 (06) |
2008-2009 |
04 |
| 017 |
15101589 |
PLUG, L/GATE INR PNL DRN HOLE (W/SPRING CLIP) |
CK1, 2 (06) |
2008-2009 |
03 |
| 018 |
11508388 |
ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (L/GATE O/S HDL) (8.915) |
|
2008-2009 |
04 |
| 019 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG)
|
2008-2009 |
04 |
|
| 020 |
11561972 |
БОЛТ, L/GATE APLQ (6 X 1 X 21) |
CK1, 2 (X88, Z75, Z88) |
2008-2009 |
02 |
| 020 |
11569872 |
БОЛТ, L/GATE APLQ (M 6 X 1 X 23.5) (8.4 THD, 18 OD, 8.8) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2008-2009 |
02 |
| 021 |
|
HARNESS, L/GATE WRG (СМ. ГРУППУ 02.000 WIRING HARNESS/LIFTGATE FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 023 |
11609341 |
SCREW, RD WA HD 6-LOBE M6X1X19 (L/GATE LK)
|
2008-2009 |
03 |
|
