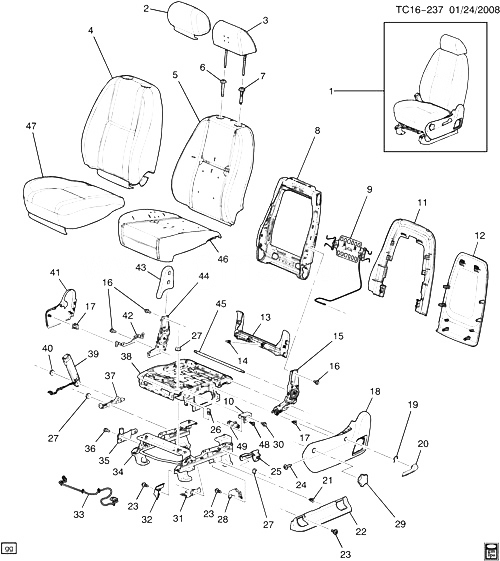

(TC16-237) - 2008-2009 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH-D TRIMS(AZ3,EXC (AG1)) CHEVROLET TAHOE HYBRID (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR 2008-2008
002 COVER, D/SEAT H/RST (PART OF 3) 2008-2009
003 15229444 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1, 2, 3 (AZ3, 31D, 33D) 2008-2008 01
003 25863484 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (AZ3, 19C) 2008-2008 01
003 25863484 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (AZ3, 19D) 2008-2008 01
003 25863486 RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (AZ3, 83D, 84D) 2008-2008 01
004 25863492 COVER, D/SEAT BK CUSH (EBONY) CK1, 2, 3 (AZ3, 19D) 2008-2008 01
004 25863493 COVER, D/SEAT BK CUSH (CASHMERE) CK1, 2 (06-36) (AZ3, 31D, 33D) 2008-2008 01
004 25863494 COVER, D/SEAT BK CUSH (TITANIUM) CK1, 2 (06-36) (AZ3, 83D) 2008-2008 01
006 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2008 02
006 15279348 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2008 02
006 15279349 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2008-2008 02
007 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2008 02
007 15279352 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2008 02
007 15279353 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2008-2008 02
008 20773510 FRAME, D/SEAT BK CUSH (INCLS 9, 15, 44, 45) CK1, 2 (06-36) (AZ3) 2008-2008 01
009 20763140 LUMBAR SUB, D/SEAT (PART OF 8) (MANUAL) (DRIVER PASSENGER) CK1, 2, 3 (AE7, AZ3, A95) 2008-2009 01
010 25819555 BRACKET, D/SEAT LUMBAR SUPT ACTR CK1, 2, 3 2008-2009 01
011 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2008-2009 02
012 15933733 PANEL, D/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 84D) 2008-2008 01
012 15933733 PANEL, D/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 19D) 2008-2008 01
012 15933733 PANEL, D/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 19C) 2008-2009 01
012 15933734 PANEL, D/SEAT BK CUSH FIN (CASHMERE) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 31D, 33D) 2008-2008 01
012 15933734 PANEL, D/SEAT BK CUSH FIN (CASHMERE) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 31C, 33C) 2008-2009 01
012 15933735 PANEL, D/SEAT BK CUSH FIN (TITANIUM) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (06-36) (AE7, AZ3, A95, 83D) 2008-2008 01
012 15933735 PANEL, D/SEAT BK CUSH FIN (TITANIUM) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2 (06-36) (AE7, AZ3, A95, 83C) 2008-2009 01
012 15934747 PANEL, D/SEAT BK CUSH FIN (EBONY) (W/MAP POCKET) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AE7, AZ3, A95, 88I) 2008-2009 01
013 15827129 COVER, F/SEAT RSR FIN (INCLS 14) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2009 02
013 15827130 COVER, F/SEAT RSR FIN (INCLS 14) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 02
013 15827131 COVER, F/SEAT RSR FIN (INCLS 14) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I, 84I) 2008-2009 02
014 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 13) 2008-2009
015 RECLINER, D/SEAT OTR (PART OF 8) 2008-2009
016 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2008-2009 08
017 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 18, 41) 2008-2009
018 25826392 COVER, D/SEAT ADJR FIN (INCLS 17) (EBONY) (MAUNUAL) CK1, 2 (06-36) (AZ3, 19I) (EXC AG1) 2008-2009 01
018 25826393 COVER, D/SEAT ADJR FIN (INCLS 17) (CASHMERE) (MANUAL) CK1, 2 (06-36) (AZ3, 31I, 33I) (EXC AG1) 2008-2009 01
018 25826394 COVER, D/SEAT ADJR FIN (INCLS 17) (TITANIUM) (MANUAL) CK1, 2 (06-36) (AZ3, 83I) (EXC AG1) 2008-2009 01
019 RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 20) 2008-2009
021 RETAINER, F/SEAT ADJR FIN CVR (PART OF 22) 2008-2009
022 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2009 01
022 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (OUTBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
022 15232586 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2008-2009 01
023 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT ADJR FIN CVR) 2008-2009 03
024 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT CUSH OTR FIN PNL) 2008-2009 01
025 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2008-2009 01
026 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2008-2009 02
027 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2008-2009 08
028 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2009 01
028 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
028 15243866 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2008-2009 01
029 15909612 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) CK1, 2 (06-36) (AE7, AZ3, A95, 19I, 22I, 84I, 88I) 2008-2009 01
029 15909613 KNOB, D/SEAT LUMBAR SUPT ACTR CK1, 2, 3 (AE7, AZ3, A95, 31I, 33I, 39I) 2008-2009 01
029 15909614 KNOB, D/SEAT LUMBAR SUPT ACTR (TITANIUM) CK1, 2 (06-36) (AE7, AZ3, A95, 83I, 85I) 2008-2009 01
030 БОЛТ, D/SEAT LUMBAR SUPT 2008-2009
031 15827134 BRACKET, D/SEAT FRT (MAIN BODY HARNESS CONNECTION) (16.686) CK1, 2, 3 2008-2009 01
032 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2009 01
032 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
032 15243852 COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2008-2009 01
033 15232241 HARNESS, D/SEAT ADJR WRG (PWR ADJ ONLY) CK1, 2 (06-36) (AG2, AL0, A95) 2008-2008 01
033 15232244 HARNESS, D/SEAT ADJR WRG (MANUAL ADJ ONLY) CK1, 2 (06) (AL0, AZ3) (EXC AG1) 2008-2008 01
034 25966536 ADJUSTER, D/SEAT (MANUAL) CK1, 2 (06) (AZ3) (EXC AG1) 2008-2009 01
035 15780680 ДАТЧИК, INFL RST D/SEAT POSITION CK1, 2 2008-2009 01
036 БОЛТ, INFL RST D/SEAT POSN SEN 2008-2009
037 15845153 BRACKET, D/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 (AL0) 2008-2009 01
038 15854391 FRAME, D/SEAT CUSH CK1, 2 (06) 2008-2009 01
039 19121537 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (EBONY) CK1, 2 (06) (AZ3, 19I) 2008-2008 01
039 19121537 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (EBONY) CK1, 2 (06-36) (AL0, A95, 19I) 2008-2008 01
039 19121539 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (TITANIUM) CK1, 2 (06-36) (AZ3, 83I) 2008-2009 01
039 19121539 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (TITANIUM) CK1, 2 (06-36) (AG2, AL0, A95, 83D) 2008-2008 01
040 ГАЙКА, D/SEAT BELT (BKL SI) 2008-2009
041 15243823 COVER, D/SEAT INR RECL FIN (INCLS 17) (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2008-2009 01
041 15243824 COVER, D/SEAT INR RECL FIN (INCLS 17) (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
041 15243825 COVER, D/SEAT INR RECL FIN (INCLS 17) (TITANIUM) CK1, 2 (06-36) (83I) 2008-2009 01
041 25851757 COVER, D/SEAT INR RECL FIN (INCLS 17) (COCOA) CK1 (06) (41I) 2008-2009 01
042 15827136 BRACKET, D/SEAT RECL (I/B) CK1, 2, 3 2008-2009 01
043 15855909 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2008-2009 02
043 15855911 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2008-2009 02
044 RECLINER, D/SEAT INR (PART OF 8) 2008-2009
045 RECLINER, D/SEAT (PART OF 8) 2008-2009
047 25863656 COVER, D/SEAT CUSH (EBONY) CK1, 2, 3 (AZ3, 19D) 2008-2008 01
047 25863657 COVER, D/SEAT CUSH (CASHMERE) CK1, 2, 3 (06-36) (AZ3, 31D, 33D) 2008-2008 01
047 25863658 COVER, D/SEAT CUSH (TITANIUM) CK1, 2 (06-36) (AZ3, 83D, 84D) 2008-2008 01
048 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT ADJR ACTR) 2008-2009 02
