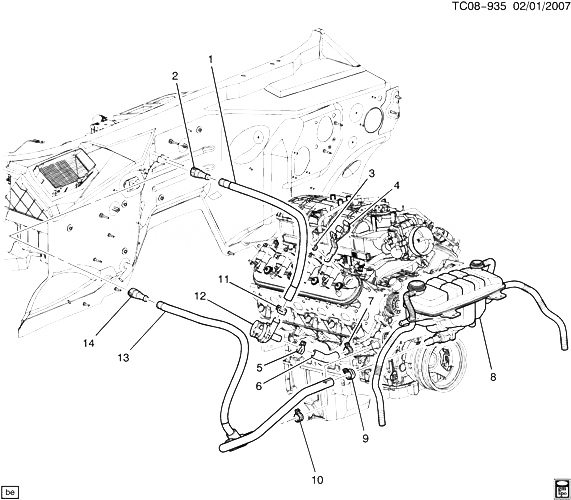

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HOSE, HTR INL RR (INCLS 2) |
|
2008-2008 |
|
| 001 |
25880388 |
HOSE, HTR INL RR (INCLS 2) (ACDelco #15-33869) |
CK1 (LFA) |
2008-2008 |
01 |
| 002 |
|
CONNECTOR, HOSE WAT AUX PMP INL (PART OF 1) |
|
2008-2008 |
|
| 003 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT)
|
2008-2009 |
01 |
|
| 004 |
15826978 |
BRACKET, HTR HOSE CLIP |
CK1 (LFA) |
2008-2009 |
01 |
| 005 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE) |
|
2008-2009 |
03 |
| 006 |
25880387 |
HOSE, HTR INL FRT |
CK1 (LFA) |
2008-2009 |
01 |
| 007 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE) |
|
2008-2009 |
AR |
| 008 |
|
TANK, RAD SURGE (СМ. ГРУППУ 01.000 ШЛАНГИ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2008 |
|
| 009 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 13)
|
2008-2009 |
AR |
|
| 010 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 13) (8.948) |
|
2008-2009 |
01 |
| 011 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE) |
|
2008-2009 |
03 |
| 012 |
15293032 |
PUMP, GEN CONT MDL COOL (PUMP ONLY) |
CK1 (LFA) |
2008-2009 |
02 |
| 012 |
25880378 |
PUMP, GEN CONT MDL COOL (В СБОРЕ) |
CK1 (LFA) |
2008-2009 |
02 |
| 013 |
25805078 |
HOSE, RAD SURGE TK OTLT (INCLS 9, 10, 14) |
CK1 (LFA) |
2008-2008 |
01 |
| 014 |
|
CONNECTOR, HOSE RAD SURGE TK OTLT (PART OF 13) |
|
2008-2008 |
|
