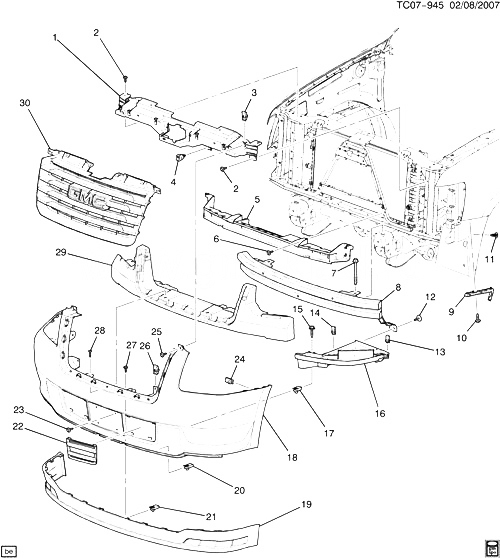

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
11610055 |
БОЛТ, HWASH, M6X1X23 (RAD GRL SUPT REINF)
|
2008-2009 |
06 |
|
| 003 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 1)
|
2008-2009 |
08 |
|
| 004 |
22581725 |
CLIP, КАПОТ PRIM LAT REL CBL (PART OF 1) (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145)
| CK1, 2 |
2008-2009 |
01 |
|
| 006 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA)
|
2008-2009 |
06 |
|
| 007 |
11519154 |
БОЛТ, FRT BPR IMP BAR (M14X2X140)
| CK1, 2, 3 |
2008-2009 |
02 |
|
| 008 |
25836810 |
БАМПЕР, ПЕРЕДНИЙ IMP |
CK1 (06) (HP2) |
2008-2008 |
01 |
| 009 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR FASCIA SI)
|
2008-2009 |
04 |
|
| 011 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT)
|
2008-2009 |
04 |
|
| 012 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR LWR FASCIA)
|
2008-2009 |
02 |
|
| 013 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 16)
|
2008-2009 |
01 |
|
| 014 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (PART OF 16)
|
2008-2009 |
01 |
|
| 015 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT BPR OTR FRT FIL)
|
2008-2009 |
06 |
|
| 016 |
15290983 |
FILLER, FRT BPR OTR FRT (INCLS 13, 14) |
CK1 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
| 016 |
15290984 |
FILLER, FRT BPR OTR FRT (INCLS 13, 14) |
CK1 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
| 017 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR OTR FRT FIL)
|
2008-2009 |
08 |
|
| 018 |
25836806 |
FASCIA, FRT BPR (PAINT TO MATCH) |
CK1, 2 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
| 019 |
15290960 |
DEFLECTOR, FRT AIR |
CK1 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
| 020 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT BPR LWR FASCIA)
|
2008-2009 |
02 |
|
| 021 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT OTR A/DFL)
|
2008-2009 |
06 |
|
| 022 |
15290956 |
COVER, FRT TOW HOOK OPG |
CK1 (06) (HP2, VGD, Z88) (EXC Y91) |
2008-2009 |
01 |
| 023 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT BRKT) (*KIT1)
|
2008-2009 |
04 |
|
| 024 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT W/H LNR)
|
2008-2009 |
04 |
|
| 025 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR UPR FASCIA)
|
2008-2009 |
06 |
|
| 026 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RAD GRL)
|
2008-2009 |
04 |
|
| 027 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT OTR A/DFL)
|
2008-2009 |
08 |
|
| 028 |
25705182 |
БОЛТ, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249)
| CK1, 2 (06-36) |
2008-2009 |
AR |
|
| 029 |
15290958 |
SUPPORT, FRT BPR FASCIA CTR |
CK1 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
| 030 |
25913958 |
РЕШЕТКА, РАДИАТОРА UPR (СМ. ГРУППУ 01.000 RADIATOR GRILLE FOR DETAILED ILLUSTRATED VIEW) |
CK1 (06) (HP2, VGD, Z88) |
2008-2008 |
01 |
