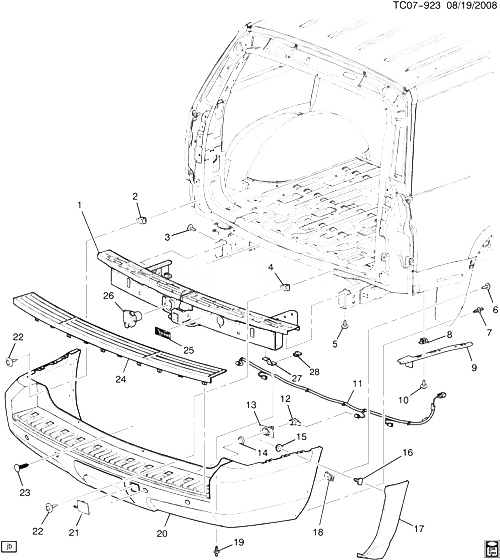

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25938524 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 25, 27) (INCLS TRAILER HITCH RECEIVER)
| CK1, 2 (06) (VR4) (EXC PPV) |
2007-2009 |
01 |
|
| 002 |
11569711 |
ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA)
|
2007-2009 |
02 |
|
| 003 |
11519537 |
БОЛТ, HEX HD, W/CON WA, M12X1.75X40.8, 25.6 THD, 35 O.D., 10.9, GMW3359 (RR BPR IMP BAR) |
|
2007-2009 |
04 |
| 004 |
11569711 |
ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA)
|
2007-2009 |
02 |
|
| 005 |
11561075 |
BOLT-HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR)
|
2007-2009 |
06 |
|
| 006 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR W/H PNL LNR)
|
2007-2009 |
04 |
|
| 007 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR W/H PNL LNR (PUSH IN))
|
2007-2009 |
02 |
|
| 008 |
11569711 |
ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA SI SUPT)
|
2007-2009 |
06 |
|
| 009 |
15912685 |
BRACKET, RR BPR FASCIA SUPT
| CK107 (06) |
2007-2009 |
01 |
|
| 009 |
25906986 |
BRACKET, RR BPR FASCIA SUPT
| CK107 (06) |
2007-2009 |
01 |
|
| 010 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA SI SUPT)
|
2007-2009 |
06 |
|
| 011 |
15950573 |
HARNESS, RR OBJECT SEN WRG |
CK107 (06) (BPH, UD7, VGE, X88) (EXC T89, Y91) |
2007-2009 |
01 |
| 012 |
15239247 |
SENSOR KIT, RR OBJECT (INCLS 14) (PRIMED) (W/O HOUSING)
| CK1, 2 |
2007-2009 |
04 |
|
| 013 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (BPH, UD7, VGE, X88) (EXC T89, Y91) |
2007-2009 |
01 |
|
| 013 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1)
| CK107 (06) (BPH, UD7, VGE, X88) (EXC T89, Y91) |
2007-2009 |
01 |
|
| 013 |
15817520 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (INBOARD) (*KIT1) (7.831) |
CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91, STZ) |
2007-2008 |
01 |
| 013 |
15817520 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (INBOARD) (*KIT1) |
CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91, STZ) |
2007-2008 |
01 |
| 013 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91) |
2007-2008 |
01 |
|
| 013 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC STZ, T89, Y91) |
2008-2008 |
01 |
|
| 013 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91) |
2007-2008 |
01 |
|
| 013 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (OUTBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC STZ, T89, Y91) |
2008-2008 |
01 |
|
| 013 |
15817522 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (INBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91) |
2007-2009 |
01 |
|
| 013 |
15817522 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 20) (INBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91) |
2007-2008 |
01 |
|
| 014 |
|
RETAINER, RR OBJECT SEN (PART OF 12) (*KIT1) |
|
2007-2008 |
|
| 015 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR WHL OPG RR FLARE)
|
2007-2009 |
06 |
|
| 016 |
15044603 |
БОЛТ, RR WHL OPG RR FLARE (M6 X 1.0 X 21 MM) (M6 X 1.0 X 21 MM) (8.228)
| CK1, 2 (06) (BPH, VGE) |
2007-2009 |
06 |
|
| 017 |
15945364 |
FLARE, RR WHL OPG RR (PAINT TO MATCH)
| CK107 (06) (BPH, B71, X88) |
2007-2009 |
01 |
|
| 017 |
15945365 |
FLARE, RR WHL OPG RR (PAINT TO MATCH) |
CK107 (06) (BPH, B71, X88) |
2007-2009 |
01 |
| 018 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR W/H PNL LNR)
|
2007-2009 |
02 |
|
| 019 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR BPR FASCIA (PUSH IN))
|
2007-2009 |
02 |
|
| 021 |
15811584 |
COVER, RR BPR FASCIA ACC HOLE (PART OF 20) (PAINT TO MATCH)
| CK1, 2 (06) (EXC Y91) |
2007-2009 |
01 |
|
| 022 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR BPR FASCIA)
|
2007-2009 |
04 |
|
| 023 |
11562024 |
RETAINER, PUSH IN, 7.5X36.5, FITS 6.35 HOLE IN 2.29-18.34 THK PNL (RR BPR FASCIA (PUSH IN))
|
2007-2009 |
02 |
|
| 025 |
15228708 |
LABEL, TRLR HITCH INFO (PART OF 1) |
CK1, 2 (06) |
2007-2009 |
01 |
| 026 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR)
| CK1, 2 (06-36) (Z82) (EXC PPV) |
2008-2009 |
01 |
|
| 027 |
25894906 |
BRACKET, RR BPR IMP BAR (PART OF 1)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 028 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 1)
|
2007-2009 |
02 |
|
| K01 |
19116085 |
SENSOR KIT, RR OBJECT (INCLS 12-14) (PRIMED) (W/HOUSING)
| CK1 |
2007-2009 |
04 |
|
