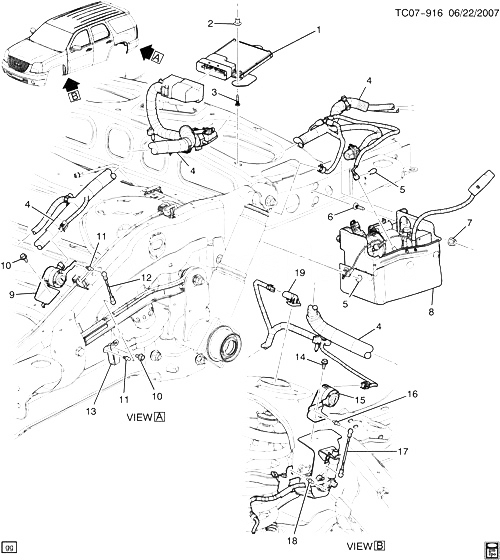

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25971217 |
MODULE, ELEK SUSP CONT (INCLS 2, 3)
| CK1 (06-36) (Z55) |
2008-2009 |
01 |
|
| 001 |
25971218 |
MODULE, ELEK SUSP CONT (INCLS 2, 3) (LABELED 25971218) |
CK1 (06-36) (Z95) |
2008-2009 |
01 |
| 002 |
|
ГАЙКА, ELEK SUSP CONT MDL (PART OF 1) |
|
2008-2008 |
|
| 003 |
|
БОЛТ, ELEK SUSP MDL (PART OF 1) |
|
2008-2008 |
|
| 004 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) (INCLS 5, 19) |
|
2007-2009 |
|
| 005 |
|
RETAINER, AUTO LVL CONT AIR CMPR TUBE (PART OF 4) |
|
2008-2008 |
|
| 006 |
|
БОЛТ, AUTO LVL CONT AIR CMPR BR (PART OF 8) |
|
2008-2008 |
|
| 007 |
|
ГАЙКА, AUTO LVL CONT AIR CMPR (PART OF 8) |
|
2008-2008 |
|
| 008 |
|
COMPRESSOR, AUTO LVL CONT AIR (INCLS 6, 7) (СМ. ГРУППУ 07.000 LEVEL CONTROL COMPRESSOR/AUTOMATIC FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 009 |
15128648 |
ДАТЧИК, ELEK SUSP RR POSN (INCLS 11-13)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 009 |
15128649 |
ДАТЧИК, ELEK SUSP RR POSN (INCLS 11-13)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 010 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) |
|
2007-2009 |
04 |
| 011 |
|
STUD, ELEK SUSP RR POSN SEN LINK BALL (PART OF 9, 13) |
|
2008-2008 |
|
| 012 |
15815642 |
LINK, ELEK SUSP RR POSN SEN (PART OF 9) |
CK1 (06-36) (Z55, Z95) |
2008-2009 |
02 |
| 013 |
22189896 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 9) (INCLS 11) (ELEK SUSP RR POSN)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 013 |
22189897 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 9) (INCLS 11) (ELEK SUSP RR POSN)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 014 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) |
|
2007-2009 |
02 |
| 015 |
15098628 |
ДАТЧИК, ELEK SUSP FRT POSN (INCLS 16, 17)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 015 |
15098629 |
ДАТЧИК, ELEK SUSP FRT POSN (INCLS 16, 17)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 016 |
|
STUD, ELEK SUSP FRT POSN SEN LINK BALL (PART OF 15) |
|
2008-2008 |
|
| 017 |
15815637 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 15) |
CK1 (06-36) (Z55, Z95) |
2008-2009 |
02 |
| 018 |
11609404 |
STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) |
CK1 (06-36) (Z55, Z95) |
2008-2009 |
02 |
| 019 |
19180262 |
CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (PART OF 4) (GRAY) (2-WAY MALE) (90DEG COUPLING) (7.450)
| CK1, 2, 3 |
2007-2009 |
04 |
|
