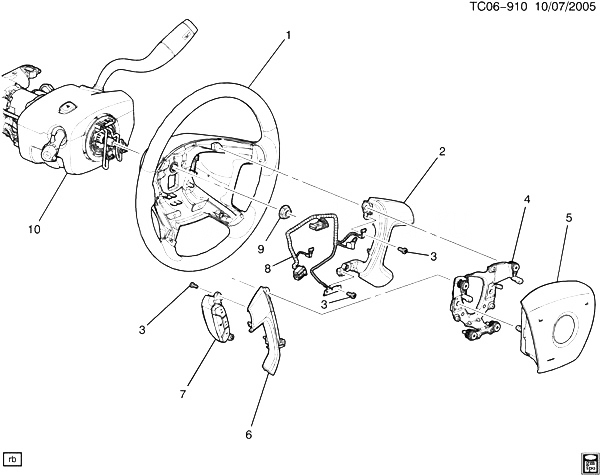

(TC06-910) - 2007-2009 CK1,2,3 РУЛЕВОЕ КОЛЕСО (LEATHER WRAPPED NP5, EXC ACCESSORY CONTROLS UK3) CHEVROLET TAHOE HYBRID (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15917920 WHEEL, STRG (INCLS 2-4, 6-8) (EBONY) CK1, 2 (06-36) (K34, NP5, X88, 19I, 31I) (EXC BPH, UK3) 2007-2008 01
001 15917921 WHEEL, STRG (INCLS 2-4, 6-8) (TITANIUM) CK1, 2 (06-36) (K34, NP5, X88, 83I) (EXC BPH, UK3) 2008-2008 01
001 25776310 WHEEL, STRG (INCLS 2-4, 6-8) (EBONY) CK1, 2 (06-36) (BPH, K34, NP5, X88, 19I, 22I, 84I) (EXC UK3) 2008-2008 01
002 15255097 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
002 15255102 COVER, STRG WHL LWR (PART OF 1) (TRINITY) CK1 2007-2009 01
002 15844710 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
002 25824700 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
002 25826421 COVER, STRG WHL LWR (PART OF 1) (SOLITARE) CK1 2008-2009 01
003 15257875 БОЛТ, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) CK1, 2, 3 2007-2009 04
004 15255031 CONTACT, STRG WHL СИГНАЛ (PART OF 1) CK1, 2, 3 2007-2009 01
005 25847290 MODULE, STRG WHL INFL RST (EBONY) (W/EMBLEM) (DUAL LEVEL) (16.712) CK1, 2 (06-36) (X88, 19I, 22I, 31I, 84I) 2007-2008 01
005 25847291 MODULE, STRG WHL INFL RST (TITANIUM) (DUAL LEVEL) (16.712) CK1 (X88, 83I) 2007-2009 01
006 15255034 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
006 15844709 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
006 25824698 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
008 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) 2007-2009
009 11609658 ГАЙКА, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518) CK1, 2, 3 2007-2009 01
009 11609659 ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917) CK1, 2, 3 2007-2008 01
010 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) 2007-2009
