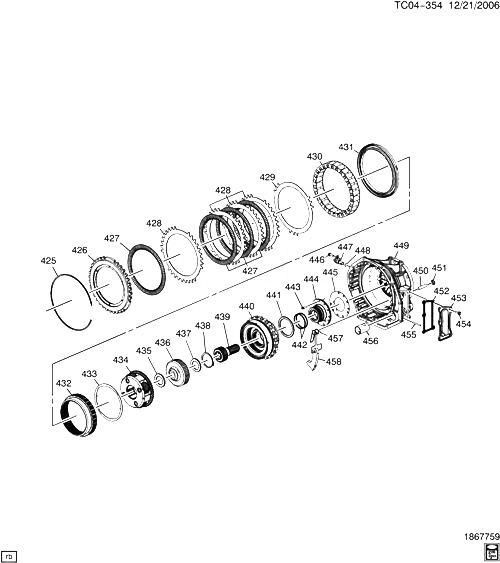

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 425 |
|
RING, HYBRID LOW, 1-2 CLU PSTN RET (*KIT3, KIT4) |
|
2008-2009 |
|
| 426 |
29544383 |
PLATE, HYBRID LOW, 1-2 CLU BKG |
CK1 (M99) |
2008-2009 |
01 |
| 427 |
|
PLATE, HYBRID LOW, 1-2 CLU (*KIT1, KIT2) |
|
2008-2009 |
|
| 428 |
|
PLATE, HYBRID LOW, 1-2 CLU (*KIT1, KIT2) |
|
2008-2009 |
|
| 429 |
29544379 |
PLATE, HYBRID LOW, 1-2 CLU (WAVED) |
CK1 (M99) |
2008-2009 |
01 |
| 430 |
29544329 |
ПРУЖИНА, HYBRID LOW, 1-2 CLU RTN |
CK1 (M99) |
2008-2009 |
01 |
| 431 |
29543571 |
PISTON, HYBRID LOW, 1-2 CLU |
CK1 (M99) |
2008-2009 |
01 |
| 432 |
29544444 |
GEAR, INTL (3RD POSN) (ACDelco #29544444) |
CK1 (M99) |
2008-2009 |
01 |
| 433 |
29546432 |
WASHER, INTL GR THR (3RD POSN) (PLASTIC) |
CK1 (M99) |
2008-2009 |
01 |
| 433 |
29546434 |
WASHER, INTL GR THR (3RD POSN) (STEEL) |
CK1 (M99) |
2008-2009 |
01 |
| 434 |
29546438 |
CARRIER, SUN GR (3RD POSN) |
CK1 (M99) |
2008-2008 |
01 |
| 435 |
29543560 |
BEARING, OUTPUT SHF THR (4.158) |
CK1 (M99) |
2008-2009 |
01 |
| 436 |
29543514 |
HUB, HYBRID DIR, 2-3-4 CLU (MCHG) |
CK1 (M99) |
2008-2009 |
01 |
| 437 |
29543560 |
BEARING, OUTPUT SHF THR (4.158) |
CK1 (M99) |
2008-2009 |
01 |
| 438 |
|
RING, OUTPUT SHF RET (*KIT3, KIT4) |
|
2008-2009 |
|
| 439 |
29543904 |
SHAFT, OUTPUT |
C1 (M99) |
2008-2009 |
01 |
| 440 |
29543540 |
HOUSING, HYBRID DIR, 2-3-4 CLU |
CK1 (M99) |
2008-2009 |
01 |
| 441 |
08678211 |
BEARING, HYBRID DIR, 2-3-4 CLU HSG THR (BETWEEN FWD CLU HSG SUPPORT) (4.164) (ACDelco #8678211) |
CK1 (M99) |
2008-2009 |
01 |
| 442 |
|
RING, HYBRID DIR, 2-3-4 CLU HSG SEAL (*KIT3) |
|
2008-2009 |
|
| 443 |
29544441 |
БОЛТ, HYBRID DIR, 2-3-4 CLU SUPT |
CK1 (M99) |
2008-2009 |
09 |
| 444 |
29543756 |
SUPPORT, HYBRID DIR, 2-3-4 CLU |
CK1 (M99) |
2008-2009 |
01 |
| 445 |
|
ПРОКЛАДКА, HYBRID DIR, 2-3-4 CLU SUPT (*KIT3) |
|
2008-2009 |
|
| 446 |
29543503 |
БОЛТ, VEH SPD SEN (4.295) |
CK1 (M99) |
2008-2009 |
01 |
| 446 |
29543503 |
БОЛТ, VEH SPD SEN (4.295) |
CK1 (M99) |
2008-2009 |
01 |
| 447 |
29543820 |
ДАТЧИК, A/TRNS OUTPUT SPD (INCLS 448) (4.337) |
CK1 (M99) |
2008-2009 |
01 |
| 447 |
29543820 |
ДАТЧИК, A/TRNS OUTPUT SPD (INCLS 448) |
CK1 (M99) |
2008-2009 |
01 |
| 448 |
29545073 |
SEAL, A/TRNS OUTPUT SPD SEN (O RING) (PART OF 447) (*KIT3) (ACDelco #29545073) |
CK1 (M99) |
2008-2009 |
01 |
| 449 |
29544365 |
CASE, A/TRNS RR |
C1 (M99) |
2008-2008 |
01 |
| 450 |
|
SHAFT, PARK PAWL (PART OF 458) |
|
2008-2009 |
|
| 451 |
|
PLUG, PARK PAWL SHF HOLE (PART OF 458) (*KIT3) |
|
2008-2009 |
|
| 452 |
29543587 |
ПРОКЛАДКА, PARK PAWL CVR |
CK1 (M99) |
2008-2009 |
01 |
| 453 |
29543586 |
COVER, PARK PAWL |
CK1 (M99) |
2008-2009 |
01 |
| 454 |
29543503 |
БОЛТ, PARK PAWL CVR |
CK1 (M99) |
2008-2009 |
05 |
| 455 |
24226102 |
PIN, PARK PAWL ACTR GDE (PART OF 458) (*KIT3) |
CK1 (M99) |
2008-2009 |
01 |
| 456 |
|
GUIDE, PARK PAWL ACTR (PART OF 458) |
|
2008-2009 |
|
| 457 |
|
ПРУЖИНА, PARK PAWL (PART OF 458) |
|
2008-2009 |
|
| 458 |
19168290 |
PAWL KIT, PARK (INCLS 450, 451, 455-457) (ACDelco #19168290) |
CK1 (M99) |
2008-2009 |
01 |
| K01 |
29544380 |
PLATE, HYBRID LOW, 1-2 CLU (INCLS 427, 428) |
CK1 (M99) |
2008-2009 |
01 |
| K02 |
19168274 |
PLATE KIT, CLU (INCLS 427, 428) (4.265) |
CK1 (M99) |
2008-2009 |
01 |
| K03 |
19168289 |
CASE KIT, A/TRNS (INCLS 425, 438, 442, 445, 448, 451, 455, ALSO ITEM 20 GASKET ON TC04-347) |
CK1 (M99) |
2008-2009 |
01 |
| K04 |
19168285 |
RING KIT, RET (INCLS 425, 438) |
CK1 (M99) |
2008-2009 |
01 |
