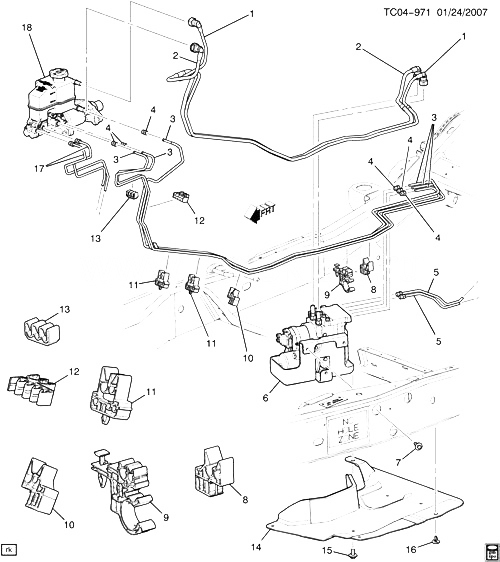

(TC04-971) - 2008-2009 CK107(06) ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ ЧАСТЬ 1 (J92) CHEVROLET TAHOE HYBRID (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15775166 HOSE, BRK M/CYL RSVR CK107 (06) (J92) 2008-2009 01
002 15775165 HOSE, BRK M/CYL RSVR CK107 (06) (J92) 2008-2009 01
003 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) 2008-2009 AR
004 11562075 ГАЙКА, RR BRK FRT PIPE (M12X1.5X17) (INV FLARE) CK1, 2, 3 (JD9, JF3, JF7, JH6, JH7, J92) 2008-2009 01
005 PIPE, RR BRK FRT (SEE GEROUP 04.000 ТОРМОЗНАЯ МАГИСТРАЛЬ/ПРОМЕЖУТОЧНАЯ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
006 MODULE, ELEK BRK CONT (W/ BRKT HYD BOOS EMU ECU) (СМ. ГРУППУ 04.000 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
007 11589407 БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) 2008-2009 03
008 11570012 CLIP, FRT BRK PIPE (GRAY) (CLIP HOLDS FIVE TUBES) CK107 (06) (J92) 2008-2009 01
009 11570010 CLIP, FRT BRK PIPE (HOLDS 6 TUBES 2 HARNESS, FITS 8.0 DIA HOLE IN 2.5 THK PNL) CK107 (06) (J92) 2008-2009 01
010 11570013 CLIP, FRT BRK PIPE (BLACK) (CLIP HOLDS FIVE TUBES) CK107 (06) (J92) 2008-2009 01
011 11570009 CLIP, FRT BRK PIPE (FIT 8.0 DIA HOLE IN 4.2 THK PNL) (HOLDS 12.7, 9.52, 7.75, 6.75 DIA LINES, ) CK107 (06) (J92) 2008-2009 02
012 11570011 CLIP, FRT BRK PIPE (CLIP HOLDS SIX TUBES) CK107 (06) (J92) 2008-2009 01
013 11562394 CLIP, FRT BRK PIPE CK107 (06) (J92) 2008-2009 01
014 25863031 SHIELD, ELEK BRK CONT MDL SPH (TWO-MODE HYBRID) CK1 (06) (HP2) 2008-2008 01
015 11518341 БОЛТ, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (ELEK BRK CONT MDL SPH SHLD) 2008-2009 03
016 11589295 RETAINER, ELEK BRK CONT RLY BRKT (PUSH ON) (PUSH PIN RETAINER) (FITS 10.5 HOLE, 3-6.0 THK PNL) (8.950) CK1 (06) (HP2) 2008-2009 03
017 PIPE, FRT BRK (СМ. ГРУППУ 04.000 ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ ЧАСТЬ 2 FOR DETAILED ILLUSTRATED VIEW) 2008-2009
018 CYLINDER, BRK MAS (W/ BRK PED TRAV SEN PUSH ROD) (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) 2008-2009
