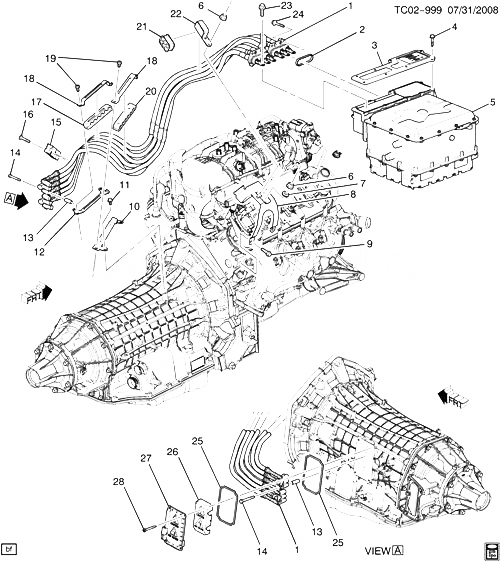

(TC02-999) - 2008 CK107(06) ЭЛЕКТРОПРОВОДКА ГЕНЕРАТОРА-3 PHASE (HYBRID HP2) CHEVROLET TAHOE HYBRID (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24245203 CABLE, DRV MOT GEN PWR INV MDL (3 PHASE) (INCLS 2, 10, 12-22, 24-28) CK1 (M99) 2008-2009 01
002 19168301 SEAL, DRV MOT GEN PWR INV MDL CBL TERM EXT BOLT (PART OF 1) (TERM EXT BOLT) CK1 (M99) 2008-2009 02
003 24243399 COVER, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (INCLS 4) CK1 (HP2) 2008-2009 01
004 24243398 БОЛТ, DRV MOT GEN PWR INV MDL CBL CVR (PART OF 3) CK1 (HP2) 2008-2009 05
005 12624430 MODULE, DRV MOT GEN PWR INV (W/ 2ND MPU) (СМ. ГРУППУ 02.000 МОДУЛЬ УПРАВЛЕНИЯ/DRIVE MOTOR FOR DETAILED ILLUSTRATED VIEW) CK1 (HP2) 2008-2009 01
006 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DRV MOT GEN POWR INV MDL CBL BRKT) 2008-2009 02
007 24246179 INSULATOR, DRV MOT PWR INV MDL CBL TERM EXT (PART OF 8) CK1 (HP2) 2008-2009 01
008 24246180 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (INCLS 7) CK1 (HP2) 2008-2009 01
009 11515765 БОЛТ, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (DRV MOT GEN POWR INV MDL CBL BRKT) 2008-2009 02
010 19168304 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (RH BOTTOM) (PART OF 1) (RH BOTTOM) CK1 (M99) 2008-2009 01
011 29544413 БОЛТ, DRV MOT GEN PWR INV MDL CBL RET (DL CBL RET) CK1 (M99) 2008-2009 04
012 19168303 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (LH BOTTOM) (PART OF 1) CK1 (M99) 2008-2009 01
013 BOLT KIT, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (PART OF 1) 2008-2008
014 БОЛТ, DRV MOT GEN PWR INV MDL CBL TERM INSUL BLK (PART OF 1) 2008-2008
015 19181269 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (PART OF 1) (INCLS 16) (NEAR TRANS) C1 (M99) 2008-2009 01
016 БОЛТ, DRV MOT GEN PWR INV MDL (3 PHASE) CABLE (PART OF 1, 15) 2008-2008
017 19168307 RETAINER, DRV MOT GEN PWR INV MDL CBL (LH BRKT) (PART OF 1) CK1 (M99) 2008-2009 02
018 19168305 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (PART OF 1) (RH/LH TOP) CK1 (M99) 2008-2009 01
019 19168302 БОЛТ, DRV MOT GEN POWR INV MDL CBL BRKT (PART OF 1) (L CBL BRKT) CK1 (M99) 2008-2009 02
020 19168306 RETAINER, DRV MOT GEN PWR INV MDL CBL (RH BRKT) (PART OF 1) CK1 (M99) 2008-2008 02
021 19168308 RETAINER, DRV MOT GEN PWR INV MDL CBL (FLEX CBL BRKT) (PART OF 1) CK1 (M99) 2008-2009 01
022 19168309 BRACKET, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (PART OF 1) (NEAR АККУМУЛЯТОР) C1 (M99) 2008-2009 01
023 11588711 БОЛТ, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (DRV MOT GEN PWR INV MDL (3 PHASE) CABLE) 2008-2009 06
024 19168310 БОЛТ, DRV MOT GEN PWR INV MDL CBL TERM EXT (PART OF 1) CK1 (M99) 2008-2009 04
025 19168300 SEAL, DRV MOT GEN PWR INV MDL CBL HSG CVR (PART OF 1) (HSG CVR) CK1 (M99) 2008-2009 02
026 29544326 COVER, DRV MOT PWR INV MDL CBL TERM EXT BOLT PROTV (PART OF 1) CK1 (M99) 2008-2009 01
027 29544327 COVER, DRV MOT GEN PWR INV MDL (3 PHASE) CBL (PART OF 1) CK1 (M99) 2008-2009 01
028 19168311 БОЛТ, DRV MOT GEN PWR INV MDL (3 PHASE) CABLE (PART OF 1) CK1 (M99) 2008-2009 04
