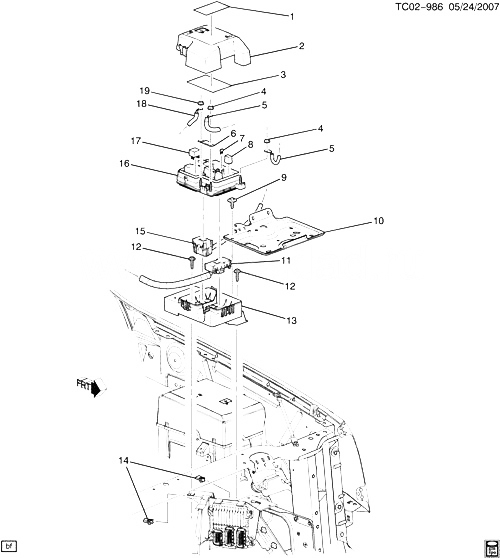

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15930926 |
LABEL, BAT INFO (PART OF 2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 002 |
25801752 |
COVER, ENG WRG HARN J/BLK (INCLS 1, 3) |
CK1 (06) (HP2) |
2008-2008 |
01 |
| 003 |
25859530 |
LABEL, FUSE BLK (PART OF 2) (8.808) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 003 |
25859530 |
LABEL, FUSE BLK (PART OF 2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX BAT POS CBL)
|
2008-2009 |
02 |
|
| 005 |
|
CABLE, AUX BAT POS (СМ. ГРУППУ 02.000 ПРОВОДА АККУМУЛЯТОРА FOR DETAILED ILLUSTRATED VIEW) (LABELED 25927555) |
|
2008-2009 |
|
| 006 |
19177465 |
FUSE, (PART OF 16) (200 AMP MEGA FUSE.) |
CK1 (06-43) (LFA, HP2) |
2008-2009 |
01 |
| 007 |
88909753 |
FUSE, MINI, 10 AMP, RED (PART OF 16) |
|
2008-2009 |
01 |
| 007 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 16) (ACDelco #ATM15-25)
|
2008-2009 |
07 |
|
| 007 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 16) (ACDelco #ATM25-25)
|
2008-2009 |
01 |
|
| 008 |
|
FUSE, 40AMP, LOW PROFILE J CASE, GREEN (PART OF 16) |
|
2008-2009 |
AR |
| 008 |
|
FUSE, 60AMP, LOW PROFILE J CASE, YELLOW (PART OF 16) |
|
2008-2009 |
04 |
| 009 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ENG WRG HARN FUSE BLK BRKT)
|
2008-2009 |
01 |
|
| 010 |
25826079 |
TRAY, BAT (SECONDARY)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 011 |
|
HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 012 |
11610199 |
БОЛТ, HEX W/CON WA, M6X1X30, 21 THD, 17 OD, 8.8, GMW3359 (ENG WRG HARN FUSE BLK BRKT)
|
2008-2009 |
02 |
|
| 013 |
25865973 |
BRACKET, ENG WRG HARN J/BLK |
CK1 (06) (LFA, HP2) |
2008-2008 |
01 |
| 014 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (СМ. ГРУППУ 03.000 E.C.M. МОДУЛЬ И ЖГУТ ПРОВОДОВ FOR DETAILED ILLUSTRATED VIEW)
|
2008-2009 |
03 |
|
| 015 |
|
HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 016 |
25867571 |
BLOCK, ACSRY WRG JUNC (INCLS 6-8, 17) |
CK1 (06) (LFA, HP2) |
2008-2008 |
01 |
| 017 |
12177236 |
RELAY, FAN CONT (PART OF 16) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C)
| CK1, 2 (06) |
2008-2009 |
02 |
|
| 017 |
14100455 |
RELAY, FAN CONT (5-TERMINAL, BLACK) (PART OF 16) (2.510) (ACDelco #15-8426) |
CK1 (06) (LFA, HP2) |
2008-2008 |
03 |
| 017 |
15328865 |
RELAY, FAN CONT (PART OF 16) (BLACK) (SPDT 280 MINI.) (DAESUNG) (ACDelco #D1724A) |
CK1 (06-36) |
2008-2009 |
01 |
| 018 |
|
CABLE, BAT POS (СМ. ГРУППУ 02.000 ПРОВОДА АККУМУЛЯТОРА FOR DETAILED ILLUSTRATED VIEW) (2.215) |
|
2008-2009 |
|
| 019 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL)
|
2008-2009 |
01 |
|
