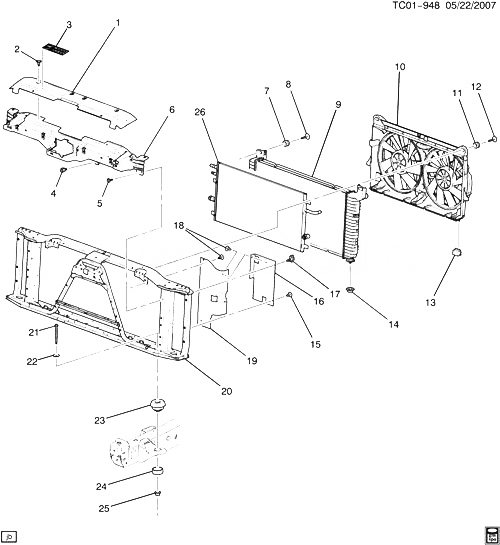

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25976455 |
BAFFLE, RAD AIR UPR (INCLS 2, 3)
| CK1, 2 (06-36) (X88, Z88) |
2008-2009 |
01 |
|
| 002 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (PART OF 1)
|
2008-2009 |
06 |
|
| 003 |
|
LABEL, A/C REFRIG WRNG (PART OF 1) |
|
2008-2009 |
|
| 004 |
22581725 |
CLIP, КАПОТ PRIM LAT REL CBL (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145)
| CK1, 2 |
2008-2009 |
03 |
|
| 005 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 6) |
|
2008-2009 |
08 |
| 006 |
15865945 |
BRACKET, RAD GRL UPR (INCLS 5)
| CK1, 2 (06-36) (X88) |
2008-2009 |
01 |
|
| 007 |
89019152 |
INSULATOR, RAD UPR (PART OF 9) |
CK1 (LFA, M99) |
2008-2009 |
02 |
| 008 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) |
|
2008-2009 |
02 |
| 009 |
|
RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) (INCLS 7, 14) |
|
2008-2009 |
|
| 010 |
|
FAN, ENG COOL (W/ SHRD) (СМ. ГРУППУ 01.000 ВЕНТИЛЯТОР ОХЛАЖДЕНИЯ ДВИГАТЕЛЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 011 |
15780790 |
INSULATOR, ENG COOL FAN SHRD (UPPER)
| CK1 |
2008-2009 |
02 |
|
| 012 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (ENG COOL FAN) |
|
2008-2009 |
02 |
| 013 |
15780791 |
INSULATOR, ENG COOL FAN SHRD (LOWER)
| CK1 |
2008-2009 |
03 |
|
| 014 |
89019121 |
MOUNT, RAD LWR (PART OF 9) |
CK1 |
2008-2009 |
02 |
| 015 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RAD AIR BFL (PUSH IN))
|
2008-2009 |
02 |
|
| 016 |
10392941 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2008-2009 |
01 |
| 016 |
10392942 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2008-2009 |
01 |
| 017 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (WRG HARN)
|
2008-2009 |
01 |
|
| 018 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 19)
|
2008-2009 |
04 |
|
| 019 |
15208496 |
BAFFLE, RAD AIR (INCLS 18) |
CK1, 2 (06-36) (LC9, LFA, LMG, LY2, LY5, LY6, L76, L92) |
2008-2008 |
01 |
| 019 |
15870606 |
BAFFLE, RAD AIR (INCLS 18) |
CK1 (LFA) |
2008-2009 |
01 |
| 020 |
|
SUPPORT, RAD (СМ. ГРУППУ 01.000 RADIATOR SUPPORT FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2009 |
|
| 021 |
11562547 |
БОЛТ, HFH, M12X1.75X135, 100 THD, 24.7 OD, GMW25 (10.9) STL, GM 7112M, MACH (BODY MT) |
|
2008-2009 |
02 |
| 022 |
11562546 |
WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) |
|
2008-2009 |
02 |
| 023 |
15837581 |
CUSHION, BODY BOLT UPR FRT (VIOLET) (1.270)
| CK107 (06) |
2008-2009 |
02 |
|
| 024 |
15201791 |
CUSHION, BODY BOLT LWR FRT (71MM OD)
| CK107, 209 (06) |
2008-2009 |
02 |
|
| 025 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (BODY MT) (8.917)
|
2008-2009 |
02 |
|
| 026 |
25867738 |
RADIATOR, GEN CONT MDL COOL |
CK1 (LFA, M99) |
2008-2009 |
01 |
