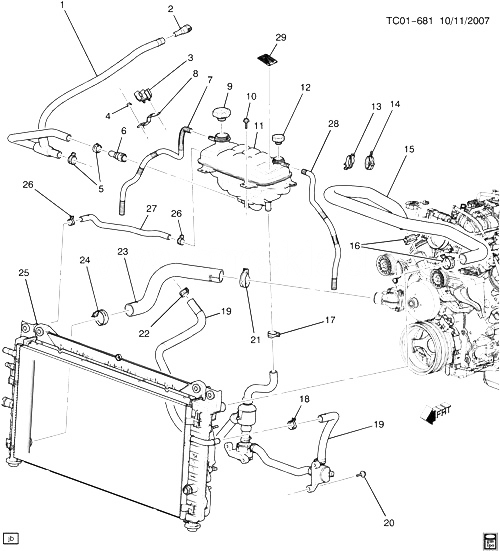

(TC01-681) - 2008 CK107(06) ШЛАНГИ РАДИАТОРА ЧАСТЬ 1 (LFA/6.0-5, HYBRID HP2) CHEVROLET TAHOE HYBRID (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25805078 HOSE, RAD SURGE TK OTLT (INCLS 2, 6) CK1 (LFA) 2008-2009 01
002 25956573 CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) CK1 (LFA) 2008-2009 01
003 15050765 CLIP, HTR HOSE (PART OF 8) (73.0MM WIDE) CK1, 2, 3 2008-2009 01
004 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT) 2008-2009 01
005 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PCV OIL SEP HOSE) 2008-2009 02
006 25956573 CONNECTOR, RAD SURGE TK OTLT HOSE (PART OF 1) CK1 (LFA) 2008-2009 01
007 25880382 HOSE, RAD SURGE TK OVFL (W/CLIPS) (ENGINE) CK1 (LFA) 2008-2009 01
008 15826978 BRACKET, HTR HOSE CLIP (INCLS 3) CK1 (LFA) 2008-2009 01
009 15075118 CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) CK1, 2, 3 2008-2009 01
010 22728347 БОЛТ, ENG COOL FAN SHRD CK1 2008-2009 06
011 19130061 TANK, RAD SURGE CK1 (LFA) 2008-2009 01
012 15076936 CAP, GEN CONT MDL COOL TK (W/LABEL) CK1 (HP2) 2008-2009 01
013 11518559 CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (RAD INL HOSE) 2008-2009 02
014 15159494 CLIP, RAD INL HOSE (PUSH-IN CLIP 37-44 DIA 12.8 DIA) CK1 (LFA) 2008-2009 02
015 25880389 HOSE, RAD INL CK1 (LFA) 2008-2009 01
016 11518559 CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (RAD INL HOSE) 2008-2009 02
017 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 19) (8.948) 2008-2009 01
018 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (GEN CONT MDL COOL PMP HOSE) (8.948) 2008-2009 02
019 15293032 PUMP, GEN CONT MDL COOL (INCLS 17) (СМ. ГРУППУ 01.000 ШЛАНГИ РАДИАТОРА, ЧАСТЬ 2 FOR DETAILED ILLUSTRATED VIEW) (PUMP ONLY) CK1 (LFA) 2008-2009 02
019 25880378 PUMP, GEN CONT MDL COOL (INCLS 17) (СМ. ГРУППУ 01.000 ШЛАНГИ РАДИАТОРА, ЧАСТЬ 2 FOR DETAILED ILLUSTRATED VIEW) (В СБОРЕ) CK1 (LFA) 2008-2009 02
020 БОЛТ, GEN CONT MDL COOL PMP BRKT 2008-2009
020 22728347 БОЛТ, GEN CONT MDL COOL PMP BRKT (1.277) CK1 2008-2009 04
021 11562099 CLAMP-SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) 2008-2009 01
022 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (GEN CONT MDL COOL TK HOSE) 2008-2009 02
023 19130015 HOSE, RAD OTLT (INCLS 21, 24) CK1 (LFA) 2008-2009 01
024 11562099 CLAMP-SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (PART OF 23) 2008-2009 01
025 15293038 RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) CK1 (LFA, M99) 2008-2008 01
026 15734741 CLAMP - SPRINGBAND. 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (RAD SURGE TK INL HOSE) 2008-2009 02
027 25880386 HOSE, RAD SURGE TK INL CK1 (LFA) 2008-2009 01
028 25880382 HOSE, RAD SURGE TK OVFL (W/CLIPS) (ENGINE) CK1 (LFA) 2008-2009 01
029 25802205 LABEL, RAD SURGE TK CAUTION CK1 (LFA) 2008-2009 01
