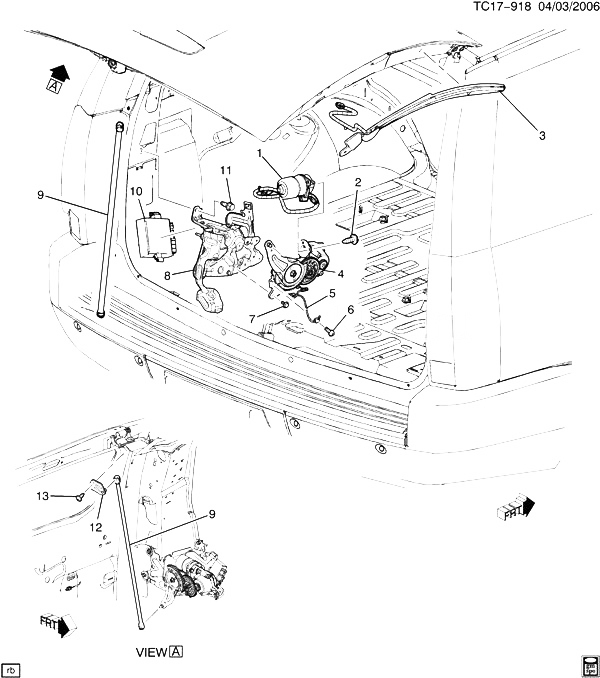

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25882453 |
MOTOR, L/GATE CLOSE ACTR (INCLS 2) (PART OF 4) (HIGH FREQUENCY) (12.243) |
CK1, 2 (06) (E61) |
2010-2013 |
01 |
| 002 |
11562045 |
BOLT, L/GATE CLOSE ACTR MOT (PART OF 1, 4) |
CK1, 2 (06) (E61) |
2007-2013 |
03 |
| 003 |
25778508 |
SENSOR, L/GATE SI (ANTI-PINCH) (W/RETAINERS) |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 003 |
22840998 |
SENSOR, L/GATE SI (ANTI-PINCH) (W/RETAINERS) |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 004 |
20821239 |
MODULE, L/GATE CLOSE ACTR MOT CONT (INCLS 1, 2, 5-8) |
CK1, 2 (06) (E61) |
2010-2013 |
01 |
| 005 |
15299399 |
SWITCH, L/GATE ACTR (INCLS 6) (PART OF 4) (12.243) (ACDelco #15299399) |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 006 |
|
BOLT, L/GATE REL SW (PART OF 4, 5) |
|
2007-2013 |
|
| 007 |
11562045 |
BOLT, L/GATE CLOSE ACTR MOT (PART OF 4) |
CK1, 2 (06) (E61) |
2007-2013 |
03 |
| 008 |
15810321 |
BRACKET, L/GATE CLOSE ACTR (PART OF 4) |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 009 |
15836293 |
ROD, L/GATE ACTR |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 010 |
20821156 |
MODULE, ACSRY L/GATE CONT (REQUIRES SOFTWARE PROGRAM AND CALIBRATION) (12.243) (ACDelco #20821156) |
CK1, 2 (06) (E61) |
2009-2013 |
01 |
| 011 |
11609410 |
BOLT, HFH, M8X1.25X25, 10.9, GMW3179 (L/GATE CLOSE ACTR) (0.056) |
|
2007-2013 |
03 |
| 012 |
15173772 |
BRACKET, L/GATE ACTR ROD |
CK1, 2 (06) (E61) |
2007-2013 |
01 |
| 013 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (L/GATE ACTR ROD BRKT) |
|
2007-2013 |
02 |
