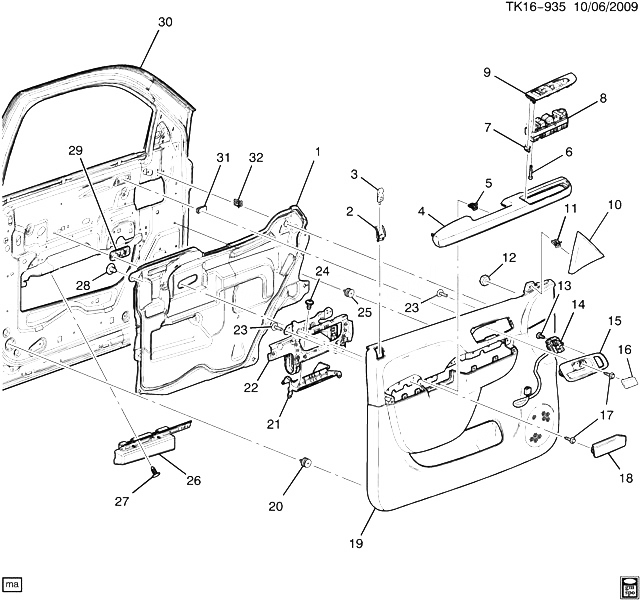

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25889237 |
DEFLECTOR, FRT S/D WAT (PART OF 19) |
CK1 (06-36) (YE9) |
2010-2013 |
01 |
| 002 |
|
COVER, FRT S/D LKG ROD OPG (PART OF 19) |
|
2010-2013 |
|
| 003 |
15844617 |
KNOB, FRT S/D LKG ROD (CASHMERE) |
CK1, 2, 3 (33I) |
2010-2013 |
02 |
| 003 |
15844618 |
KNOB, FRT S/D LKG ROD (TITANIUM) |
CK1, 2, 3 (83I, 88I) (EXC WJ5) |
2010-2013 |
02 |
| 003 |
15844616 |
KNOB, FRT S/D LKG ROD (EBONY) |
CK1, 2, 3 (19I, 85I) |
2012-2013 |
02 |
| 004 |
|
ARMREST, FRT S/D (PART OF 19) (INCLS 5) |
|
2010-2013 |
|
| 005 |
|
RETAINER, FRT S/D A/RST (PART OF 4, 19) |
|
2010-2013 |
|
| 006 |
|
BOLT, FRT S/D WDO SW BZL (PART OF 9) |
|
2010-2013 |
|
| 007 |
10410811 |
CLIP, FRT S/D C/LP (PART OF 9) (10.777) |
CK1, 2, 3 |
2010-2013 |
02 |
| 008 |
20835553 |
SWITCH, DR LK SI WDO (PART OF 9) (NEEDS TO BE PROGRAMMED) (ACDelco #20835553) |
CK1, 2 (06-36) (DL3, X88, Z88) |
2010-2013 |
01 |
| 008 |
20835552 |
SWITCH, DR LK SI WDO (PART OF 9) (ACDelco #20835552) |
CK1, 2 (06-36) (DL8, DPN, X88, Z88) |
2010-2013 |
01 |
| 009 |
20980430 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (METAL BRUSH) |
CK1, 2 (06-36) (DL8, DPN, X88, 19I, 33I, 83I) (EXC BPH, SLT, T1U) |
2010-2013 |
01 |
| 009 |
20980431 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) |
CK1, 2 (06-36) (DL8, DPN, T1U, X88, 19I, 33I, 83I) (EXC BPH, SLT) |
2010-2013 |
01 |
| 009 |
20980431 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) |
CK1, 2 (06-36) (DL8, DPN, SLT, X88, 19I, 33I, 83I) (EXC BPH) |
2010-2013 |
01 |
| 009 |
20980434 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) |
CK1, 2 (06-36) (DL3, STZ, X88, 19I, 33I, 83I) |
2010-2013 |
01 |
| 009 |
20980434 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) |
CK1, 2 (06-36) (DL3, SLT, X88, 19I, 33I, 83I) (EXC BPH, STZ) |
2010-2013 |
01 |
| 009 |
20980434 |
PLATE, FRT S/D ACSRY SW MT (INCLS 6-8) (WALNUT) |
CK1, 2 (06-36) (DL3, T1U, X88, 19I, 33I, 83I) (EXC BPH, SLT, STZ) |
2010-2013 |
01 |
| 010 |
25857291 |
PANEL, FRT S/D UPR FRT TR (INCLS 11) (TITANIUM) |
CK1, 2 (06-36) (X88, Z88, 83I) |
2010-2013 |
01 |
| 010 |
25857289 |
PANEL, FRT S/D UPR FRT TR (INCLS 11) (EBONY) |
CK1, 2 (06-36) (X88, Z88, 19I) |
2010-2013 |
01 |
| 010 |
25857290 |
PANEL, FRT S/D UPR FRT TR (INCLS 11) (CASHMERE) |
CK1 (06-36) (X88, Z88, 33I) |
2010-2013 |
01 |
| 011 |
25870922 |
RETAINER, FRT S/D UPR FRT T/PNL (PART OF 10) |
CK1, 2, 3 |
2010-2013 |
02 |
| 013 |
15905947 |
BOLT, FRT S/D T/PNL (PART OF 19) |
CK1, 2, 3 |
2010-2013 |
02 |
| 014 |
25829779 |
SWITCH, D/SEAT HTR (PART OF 19) |
CK1, 2 (06-36) (A95, KA1) |
2012-2013 |
01 |
| 015 |
15947937 |
HANDLE, FRT S/D I/S (PART OF 19) (TITANIUM) (W/CHROME REL HDL) (W/HOLE FOR HEATED SEAT SWITCH) |
CK1, 2 (06) (AZ3, A95, X88, Z88, 83I) (EXC Y91) |
2010-2013 |
01 |
| 015 |
15947936 |
HANDLE, FRT S/D I/S (PART OF 19) (EBONY) (W/CHROME REL HDL) (W/HOLE FOR HEATED SEAT SWITCH) |
CK1, 2 (06-36) (A95, KA1, 19I) |
2012-2013 |
01 |
| 015 |
15947938 |
HANDLE, FRT S/D I/S (PART OF 19) (CASHMERE) (W/CHROME REL HDL) (W/HOLE FOR HEATED SEAT SWITCH) |
CK1, 2 (06-36) (A95, KA1, 33I) |
2013-2013 |
01 |
| 016 |
25897907 |
COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) |
CK1, 2 (06-36) (33I) |
2010-2013 |
01 |
| 016 |
25897906 |
COVER, FRT S/D I/S HDL BZL FIN (EBONY) |
CK1, 2 (06) (19I) |
2010-2013 |
01 |
| 016 |
25897908 |
COVER, FRT S/D I/S HDL BZL FIN (TITANIUM) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 017 |
11570136 |
BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) |
|
2010-2013 |
06 |
| 018 |
20934187 |
COVER, FRT S/D T/PNL (EBONY) |
CK1 (06-36) (19I) |
2010-2013 |
02 |
| 018 |
20934189 |
COVER, FRT S/D T/PNL (TITANIUM) |
CK1 (06-36) (83I) |
2010-2013 |
02 |
| 018 |
22874310 |
COVER, FRT S/D T/PNL (CASHMERE) |
CK1 (06-36) (33I, 39I) |
2010-2013 |
02 |
| 019 |
22818517 |
PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12-15, 20-25, 28, 32) (EBONY) |
CK1, 2 (06-36) (A95, 19I, KA1) |
2012-2013 |
01 |
| 019 |
20954919 |
PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12-15, 20-25, 28, 32) (TITANIUM) |
CK1 (06) (A95, KA1, 83I) |
2012-2013 |
01 |
| 019 |
20954920 |
PANEL, FRT S/D TR (INCLS 1, 2, 4, 5, 12-15, 20-25, 28, 32) (CASHMERE) |
CK1, 2 (06-36) (A95, KA1, 33I) |
2012-2013 |
01 |
| 020 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 19) |
|
2010-2013 |
07 |
| 021 |
|
COVER, FRT S/D A/RST OPG (PART OF 19) |
|
2010-2013 |
|
| 022 |
|
BRACKET, FRT S/D A/RST (PART OF 19) |
|
2010-2013 |
|
| 023 |
11569994 |
BOLT, FRT S/D I/S HDL (PART OF 19) (M4.2X1.41X16) (16.115) |
CK1, 2 (06-36) (AZ3, A95) |
2010-2013 |
02 |
| 024 |
11589177 |
BOLT, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (PART OF 19) |
|
2010-2013 |
AR |
| 025 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 19) |
|
2010-2013 |
04 |
| 026 |
20928037 |
ABSORBER, FRT S/D OTR PNL ENGY (INCLS 27) |
CK1, 2 (EXC E29) |
2011-2013 |
01 |
| 027 |
01605396 |
RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (PART OF 26) |
|
2010-2013 |
AR |
| 028 |
15952332 |
RETAINER, FRT S/D WAT DFL (PART OF 19) (15MM) (16.165) |
CK1, 2, 3 |
2010-2013 |
03 |
| 029 |
11570280 |
NUT, FRT S/D TR PNL |
CK1, 2, 3 |
2010-2013 |
01 |
| 030 |
|
DOOR, FRT SI (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 031 |
11609385 |
NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D I/S HDL) |
|
2010-2013 |
02 |
| 032 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 19) |
|
2010-2013 |
01 |
