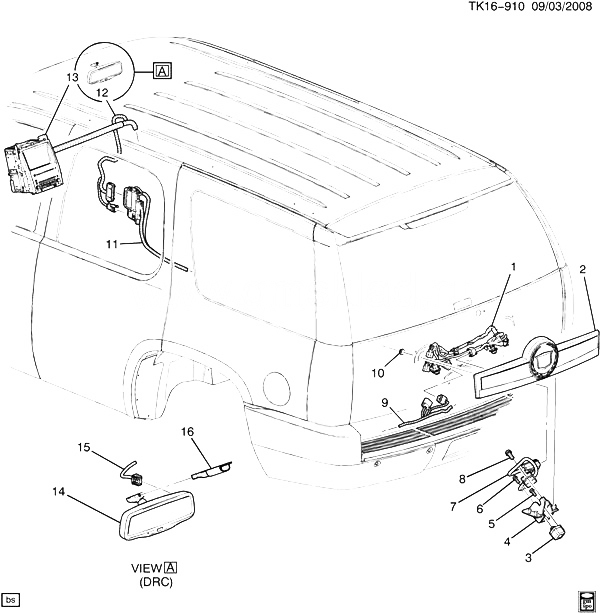

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG |
CK1, 2 (06) (UVC, X88) (EXC HP2) |
2009-2013 |
01 |
| 001 |
25923762 |
HARNESS, RR LIC PLT LP WRG |
CK1, 2 (06) (HP2, UVC, X88) |
2009-2013 |
01 |
| 002 |
|
APPLIQUE, L/GATE CTR (SEE GROUP 17.000 LIFTGATE HARDWARE/CENTER APPLIQUE FOR DETAILED ILLUSTRATED VIEW) (INCLS 3-8) (CHROME) (INCLS CAMERA) |
|
2009-2013 |
|
| 003 |
|
CAMERA, RR VIEW DRVR INFO (PART OF 2) |
|
2012-2013 |
|
| 004 |
|
BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (PART OF 2) |
|
2012-2013 |
|
| 005 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2012-2013 |
|
| 006 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2012-2013 |
|
| 007 |
|
HARNESS, VIDEO DISPLAY (PART OF 2) |
|
2012-2013 |
|
| 008 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2012-2013 |
|
| 009 |
|
HARNESS, L/GATE WRG (SEE GROUP 02.000 WIRING HARNESS/LIFTGATE FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 010 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2009-2013 |
04 |
| 011 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 012 |
|
HARNESS, I/P WRG HARN EXTN (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 013 |
|
RADIO, AM/FM STEREO NAVN (SEE GROUP 09.000 RADIO MOUNTINGS FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 014 |
20945096 |
MIRROR, I/S RR VIEW (10.185) |
CK1, 2, 3 (DRC) (EXC UE1) |
2013-2013 |
01 |
| 014 |
20945097 |
MIRROR, I/S RR VIEW (10.185) |
CK1, 2, 3 (DRC, UE1) |
2013-2013 |
01 |
| 015 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUTRATED VIEW) |
|
2012-2013 |
|
| 016 |
15779345 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN ISRVM HDLNG TRIM) |
CK1, 2, 3 |
2009-2013 |
01 |
