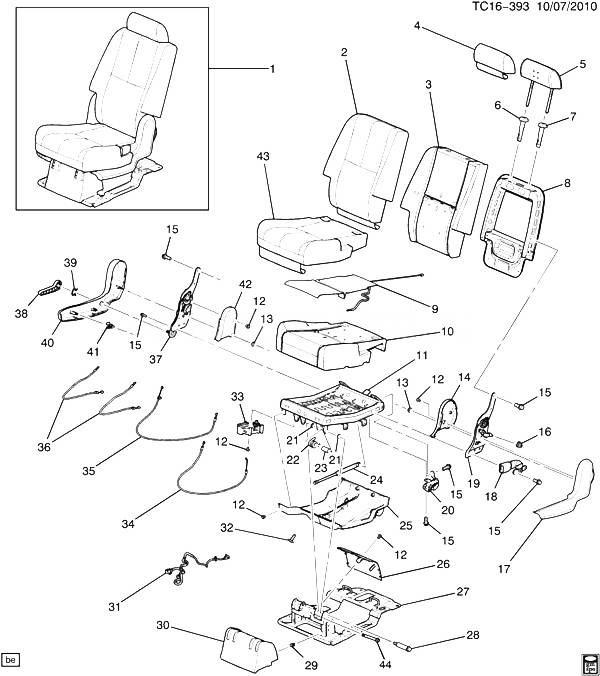

(TC16-393) 2008-2013 CK107(06) ЗАДНЕЕ СИДЕНЬЕ/BENCH-40% SIDE (AM8, POWER FOLDING ARS, EXC HYBRID HP2) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20841914 SEAT, RR (EBONY) CK107 (06) (AM8, 19C, 5T5) 2011-2013 01
001 20841972 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, 193) (EXC KA6, KB6, Y91) 2011-2013 01
001 20841973 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, 333) (EXC KA6, KB6, Y91) 2011-2013 01
001 20841974 SEAT, RR (TITANIUM) CK107 (06) (AM8, ARS, 833) (EXC KA6, KB6, Y91) 2011-2013 01
001 20842067 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, KA6, KB6, 336) (EXC Y91) 2011-2013 01
001 20842068 SEAT, RR (TITANIUM) CK107 (06) (AM8, ARS, KA6, KB6, 836) (EXC Y91) 2011-2013 01
001 20842137 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, KB6, 196) (EXC KA6, Y91) 2011-2013 01
001 20842138 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, KB6, 336) (EXC KA6, Y91) 2011-2013 01
001 20842139 SEAT, RR (TITANIUM) CK107 (06) (AM8, ARS, KB6, 836) (EXC KA6, Y91) 2011-2013 01
001 20842256 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, KA6, 193) (EXC KB6, Y91) 2011-2013 01
001 20842257 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, KA6, 333) (EXC KB6, Y91) 2011-2013 01
001 20842258 SEAT, RR (TITANIUM) CK107 (06) (AM8, ARS, KA6, 833) (EXC KB6, Y91) 2011-2013 01
001 20842454 SEAT, RR (EBONY) CK107 (06) (AM8, 19C) (EXC 5T5) 2011-2013 01
001 20842455 SEAT, RR (CASHMERE) CK107 (06) (AM8, 33C) 2011-2013 01
001 20842066 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, KA6, KB6, 196) (EXC Y91) 2011-2013 01
001 20842066 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, AX4, KA6, KB6, 336, 836) (EXC Y91) (EXPORT) 2011-2013 01
002 25931397 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) 2009-2013 01
002 25931398 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
002 15865525 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 193) (EXC KB6) 2009-2013 01
002 15865526 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC KB6) 2009-2013 01
002 15865527 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC KB6) 2009-2013 01
002 15914204 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
002 20905045 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
002 20905046 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
002 25931396 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AM8, KA6, KB6, 196) 2011-2013 01
002 25931396 COVER, R/SEAT BK (EBONY) CK107 (06) (AM8, KA6, KB6, 336, 836) 2011-2013 01
003 15291598 PAD, R/SEAT BK CK1, 2 (06) (AM8) 2007-2013 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2008-2013
005 20960659 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2011-2013 02
005 20960660 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK1, 2 (06) (AM8, 33C) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AM8, KB6, 196) (EXC Y91) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107, 109, 2 (06) (AM8, 193) (EXC KB6, Y91) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107, 109, 2 (06) (AM8, 19C, 5T5) 2011-2013 02
005 20960666 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AM8, KB6, 336) (EXC HP2, Y91) 2011-2013 02
005 20960666 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107, 109, 2 (06) (AM8, 333) (EXC KB6, Y91) 2011-2013 02
005 20960667 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107, 109, 2 (06) (AM8, 833) (EXC KB6, Y91) 2011-2013 02
005 20960667 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107 (06) (AM8, KB6, 836) (EXC HP2, Y91) 2011-2013 02
008 15269763 FRAME, R/SEAT BK CK1, 2 (06) (AM8) 2007-2013 01
009 15824761 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2013 01
010 15291600 PAD, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
011 15269765 FRAME, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2013 01
012 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2013 09
013 11562384 NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2013 02
015 11562378 BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 12
016 20963265 KNOB, R/SEAT LAT (EBONY) (INNER) CK1, 2 (06) 2011-2013 02
018 19121596 BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 01
018 19121595 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AM8, 33I, 39I) 2009-2013 01
018 19121593 BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 01
020 15275888 LATCH, R/SEAT RSR (O/B) CK107 (06) (AM8) 2007-2013 02
021 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AM8) 2007-2013 08
024 15275905 STRUT, R/SEAT (USED ON 40% SIDE) CK1, 2 (06) (AM8) 2007-2013 02
024 15930099 STRUT, R/SEAT (USED ON 60% SIDE) CK1, 2 (06) (AM8) 2007-2013 01
025 22772251 PANEL, R/SEAT CUSH TR (EBONY) CK107 (06) (AM8, 336, 836) 2011-2013 01
025 22772251 PANEL, R/SEAT CUSH TR (EBONY) CK107 (06) (AM8, 19I) (EXC HP2) 2012-2013 01
025 22772252 PANEL, R/SEAT CUSH TR (CASHMERE) CK107 (06) (AM8, 33I, 39I) (EXC HP2) 2012-2013 01
025 22772253 PANEL, R/SEAT CUSH TR (TITANIUM) CK107 (06) (AM8, 83I) (EXC HP2) 2010-2013 01
027 22741877 RISER, R/SEAT CK107 (06) (AM8) (EXC HP2) 2007-2013 01
029 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 30) 2008-2013
030 15279599 COVER, R/SEAT RSR FIN (INCLS 29) (EBONY) (FRONT) CK107 (06) (AM8, 19I) 2007-2013 01
030 15279600 COVER, R/SEAT RSR FIN (INCLS 29) (CASHMERE) (FRONT) CK107 (06) (AM8, 33I, 39I) 2007-2013 01
030 15279601 COVER, R/SEAT RSR FIN (INCLS 29) (TITANIUM) (FRONT) CK107 (06) (AM8, 83I) 2007-2013 01
031 15843761 HARNESS, ST RECL WRG (ELEMENT) (LH AND RH) CK107, 109, 2 (06) (AM8, ARS, 193, 333, 833) (EXC KA6, KB6, Y91) 2009-2013 02
031 15843761 HARNESS, ST RECL WRG (ELEMENT) (LH AND RH) CK107, 109, 2 (06) (AM8, ARS, KB6, 196, 336, 836) (EXC KA6, Y91) 2009-2013 02
031 15843763 HARNESS, ST RECL WRG (ELEMENT) CK107, 109, 2 (06) (AM8, ARS, KA6) (EXC Y91) 2007-2013 01
032 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2013 02
032 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AM8, 19I) 2007-2013 02
032 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (33I, 39I) 2007-2013 02
032 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK107 (06) (AM8, 336, 836) 2011-2013 02
033 15824750 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AM8, ARS) 2007-2013 01
034 15942228 CABLE, R/SEAT BK LAT CK1, 2 (06) (AM8, ARS) 2007-2013 01
034 15942229 CABLE, R/SEAT BK LAT CK1, 2 (06) (AM8, ARS) 2007-2013 02
038 15279429 HANDLE, R/SEAT RECL (INCLS 39) (TITANIUM) CK1, 2 (06) (83I) 2007-2013 01
038 25858446 HANDLE, R/SEAT RECL (INCLS 39) (COCOA) CK1 (06) (AM8, 41I) 2009-2013 01
038 15279419 HANDLE, R/SEAT RECL (INCLS 39) (EBONY) CK1, 2 (06) (19I) 2007-2013 01
038 15279420 HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) CK1, 2 (06) (33I) 2007-2013 01
038 15279420 HANDLE, R/SEAT RECL (INCLS 39) (CASHMERE) CK1 (06) (39I) 2007-2013 01
039 RETAINER, R/SEAT ADJR RLR (PART OF 38) 2008-2013
041 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 17, 40) 2008-2013
043 25931403 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, KB6, 336) 2009-2013 01
043 25931404 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) 2009-2013 01
043 15865714 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) 2009-2013 01
043 15865715 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) 2009-2013 01
043 15865716 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) 2009-2013 01
043 15914208 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C, 5T5) 2009-2013 01
043 20905039 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 19C) (EXC 5T5) 2010-2013 01
043 20905040 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 33C) 2010-2013 01
043 25931402 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, KA6, KB6, 196) 2011-2013 01
043 25931402 COVER, R/SEAT CUSH (EBONY) CK107 (06) (AM8, KA6, KB6, 336, 836) 2011-2013 01
044 11570031 PIN, R/SEAT HGE (6 X 1 X 78) CK1, 2 (06) 2007-2013 01
044 11570032 PIN, R/SEAT HGE (6 X 1 X 98) CK1, 2 (06) 2007-2013 01
