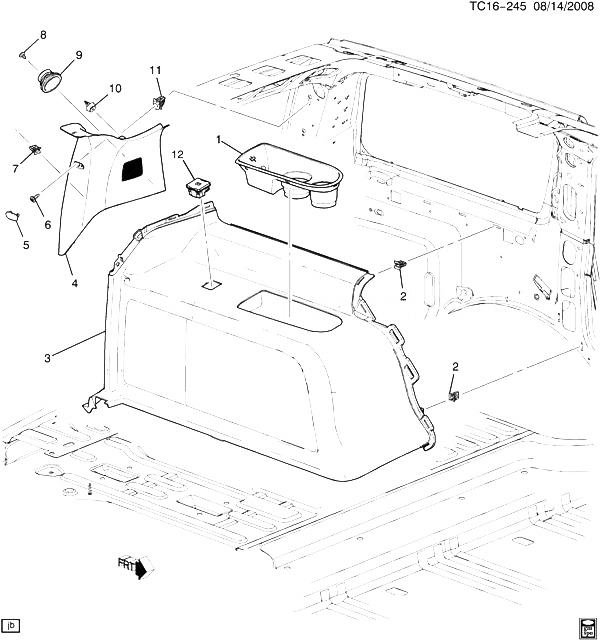

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15838270 |
HOLDER, R/SEAT CUP (PART OF 3) (TITANIUM) |
CK107 (06) (83I) |
2008-2013 |
01 |
| 001 |
15838268 |
HOLDER, R/SEAT CUP (PART OF 3) (EBONY) |
CK107 (06) (19I) |
2009-2013 |
01 |
| 001 |
15838269 |
HOLDER, R/SEAT CUP (PART OF 3) (CASHMERE) |
CK107 (06) (33I, 39I) |
2009-2013 |
01 |
| 002 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 3) |
|
2008-2013 |
07 |
| 003 |
22847098 |
PANEL, BODY SI TR (INCLS 1, 2, 12) (CASHMERE) (INCLS LOW VOLTAGE PWR OUTLET 13332854) |
CK107 (06) (HP2, 33I) |
2012-2013 |
01 |
| 003 |
22847099 |
PANEL, BODY SI TR (INCLS 1, 2, 12) (TITANIUM) (INCLS LOW VOLTAGE PWR OUTLET 13332854) |
CK107 (06) (HP2, 83I) |
2012-2013 |
01 |
| 003 |
22847100 |
PANEL, BODY SI TR (INCLS 1, 2, 12) (EBONY) (INCLS LOW VOLTAGE PWR OUTLET 13332854) |
CK107 (06) (HP2, X88, Z88, 19I) (EXC Y91) |
2012-2013 |
01 |
| 004 |
15862682 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-11) (CASHMERE) (W/O SPKR) (MOLDING ONLY) |
CK1, 2 (06) (33I) (EXC E61) |
2009-2013 |
01 |
| 004 |
15863084 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-11) (GRAY) (W/SPKR) |
CK1, 2 (06) (UQA, 19I, 83I) (EXC E61, STZ, Y91) |
2009-2013 |
01 |
| 004 |
15863085 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-11) (CASHMERE) (W/SPKR) |
CK1, 2 (06) (UQA, 33I) (EXC E61, STZ, Y91) |
2009-2013 |
01 |
| 004 |
15862681 |
MOLDING, BODY RR COR UPR GARN (INCLS 5-11) (GRAY) (W/O SPKR) (MOLDING ONLY) |
CK1, 2 (06) (19I, 83I) (EXC E61) |
2009-2013 |
01 |
| 005 |
15278015 |
PLUG, BODY RR COR UPR GARN MLDG (PART OF 4) (LT CHASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
02 |
| 005 |
15278014 |
PLUG, BODY RR COR UPR GARN MLDG (PART OF 4) (GRAY) |
CK1, 2 (06) (UQ3, UQA, 19I, 83I) |
2009-2013 |
02 |
| 006 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 4) |
|
2008-2013 |
01 |
| 007 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 4) |
|
2008-2013 |
02 |
| 008 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 4) |
|
2008-2013 |
01 |
| 009 |
15186673 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (PART OF 4) (ACDelco #15186673) |
CK1, 2 (06) (UQA) (EXC Y91) |
2008-2013 |
02 |
| 009 |
15186672 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (PART OF 4) (ACDelco #15186672) |
CK1 (06) (UQA, UQS, Y91) |
2008-2013 |
02 |
| 010 |
11561654 |
RETAINER, BODY RR COR G/MLDG (PART OF 4) (PLAIN) (BIRDS BEAK SINGLE) (FITS 8.5 DIA HOLE) (12.800) |
CK1, 2 (06) |
2008-2013 |
06 |
| 011 |
11609651 |
RETAINER, BODY RR COR G/MLDG (PART OF 4) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) |
CK1, 2 (06) |
2008-2013 |
02 |
| 012 |
20919910 |
RECEPTACLE, ACSRY PWR (PART OF 3) (BLACK) (110V HIGH VOLTAGE PWR OTLT (HVPO)) |
CK107 (06) (HP2, X88, Z75, Z88) |
2012-2013 |
01 |
| 012 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 3) (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
CK1, 2 (06-36) (X88, Z88) |
2008-2013 |
02 |
