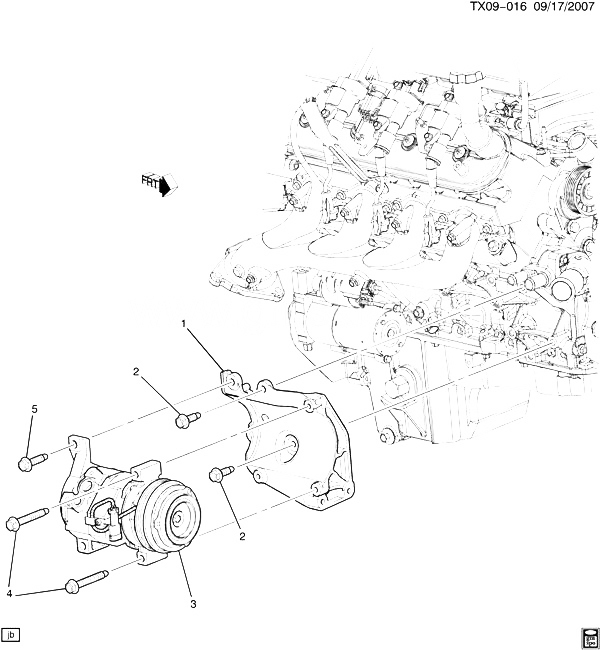

(TX09-016) 2012-2013 CK1 КРЕПЛЕНИЕ КОМПРЕССОРА КОНДИЦИОНЕРА (L20/4.8A,LMG/5.3-0,LC9/5.3-7,L9H/6.2-2,L94/6.2F) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12554026 BRACKET, A/C CMPR CK1, 2, 3 (LC9, LMG, L20, L9H, L94, L96, CJ2, CJ3, C67) 2011-2013 01
002 11515767 BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BRKT) (T/W 12345493) 2009-2013 03
003 COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) (8.0 OZ. OIL SERVICE COMP KIT) 2009-2013
004 11516109 BOLT, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/C CMPR) 2009-2013 03
005 11516503 BOLT, HFH, M10X1.5X45, 33 THD, P-PT, 9.8, 7114M (A/C CMPR) 2009-2013 01
