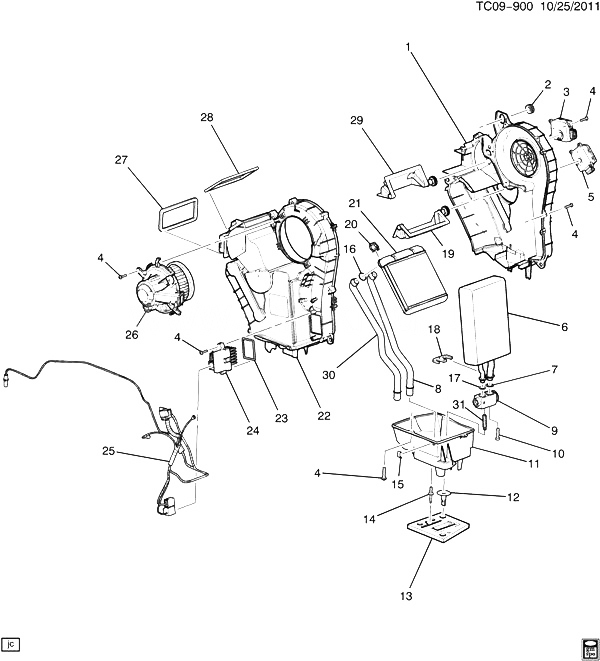

(TC09-900) 2007-2013 CK107(06) ОСУШИТЕЛЬ И ОБОГРЕВАТЕЛЬ КОНДИЦИОНЕРА ДОПОЛНИТЕЛЬНЫЙ (C69) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15920869 CASE, AUX A/C EVPR BLO (OUTER) CK107 (06) (CJ2, CJ3, C69) 2008-2013 01
002 15232221 BUSHING, A/C EVPR CASE CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
003 15887322 ACTUATOR, MODE VLV (ACDelco #15-73644) CK107 (06) (CJ2, CJ3, C69) 2009-2013 01
004 11562121 BOLT, AUX A/C EVPR BLO CASE CK107 (06) (CJ2, CJ3, C69) 2007-2013 24
005 15887322 ACTUATOR, TEMP VLV (AUX) (ACDelco #15-73644) CK107 (06) (CJ2, CJ3, C69) 2009-2013 01
006 20859526 EVAPORATOR, AUX A/C (ACDelco #15-63347) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
007 02724952 SEAL, AUX A/C EVPR OTLT TUBE (5/8) (CONTAINS 2 SEALS) (9.222) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
008 15892073 TUBE, HTR CORE (AUX) (INLET) (ACDelco #15892073) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
009 25994366 VALVE, AUX A/C EVPR THERMAL EXPN (ACDelco #15-51146) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
010 11562123 BOLT, A/C EVPR TXV (PAN HEAD, M5X35, 8.8 STL) CK107 (06) (CJ2, CJ3, C69) 2007-2013 02
011 15232211 CASE, AUX A/C EVPR BLO LWR CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
012 15189481 VALVE, AUX A/C EVPR BLO MDL DRN (ACDelco #15-5420) CK1, 2 (06) (CJ2, CJ3, C69) 2007-2013 01
013 15921035 SEAL, AUX HTR CASE (ACDelco #15-33736) CK107 (06) (CJ2, CJ3, C69) 2008-2013 01
014 11562120 STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) CK107 (06) (CJ2, CJ3, C69) 2007-2013 02
015 11562122 CLIP, A/C EVPR CASE (11X6.35) (9.215) CK107 (06) (CJ2, CJ3, C69) 2007-2013 09
016 15798231 SEAL, HTR INL OTLT PIPE (O-RING) CK107 (06) (CJ2, CJ3, C69) 2007-2013 02
017 52474373 SEAL, AUX A/C EVPR INL TUBE (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (9.222) (ACDelco #15-31055) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
018 15892072 PLATE, A/C EVPR INL TUBE BRKT BKG CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
019 15920866 VALVE, TEMP (ACDelco #15-50766) CK107 (06) (CJ2, CJ3, C69) 2008-2013 01
020 22782134 CLIP, HTR CORE CK1, 2, 3 2007-2013 02
021 15232212 CORE, AUX HTR (ACDelco #15-63346) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
022 15920868 CASE, AUX A/C EVPR BLO CK107 (06) (CJ2, CJ3, C69) 2008-2013 01
023 SEAL, AUX BLO CONT (PART OF 24) 2007-2013
024 13501703 MODULE, BLO MOT CONT (INCLS 23) (9.169) (ACDelco #15-81638) CK107 (06) (CJ2, CJ3, C69) 2009-2013 01
025 22895261 HARNESS, AUX HTR A/C WRG (GM PN 22816193 ON BLO MOT) (FOR 1ST DES SEE 22839382) CK107 (06) (CJ2, CJ3, C69) (2ND DES) 2013-2013 01
025 25811506 HARNESS, AUX HTR A/C WRG (GM PN 15920865 ON BLO MOT) (FOR 2ND DES SEE 22895261) CK107 (06) (CJ2, CJ3, C69) (1ST DES) 2013-2013 01
026 15920865 MOTOR, AUX BLO (ACDelco #15-81062) (W/15920865 ON BLO MOT) (2ND DES 22816193) CK107 (06) (CJ2, CJ3, C69) (1ST DES) 2013-2013 01
026 15920865 MOTOR, AUX BLO (8.855) (ACDelco #15-81062) (W/15920865 ON BLO MOT) (2ND DES 22816193) CK107 (06) (CJ2, CJ3, C69) (1ST DES) 2013-2013 01
026 22816193 MOTOR, AUX BLO (ACDelco #15-81781) (W/22816193 ON BLO MOT) (1ST DES 15920865) CK107 (06) (CJ2, CJ3, C69) (2ND DES) 2013-2013 01
026 22816193 MOTOR, AUX BLO (8.855) (ACDelco #15-81781) (W/22816193 ON BLO MOT) (1ST DES 15920865) CK107 (06) (CJ2, CJ3, C69) (2ND DES) 2013-2013 01
027 15920871 SEAL, AUX HTR AIR OTLT (ACDelco #15920871) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
028 15814847 SEAL, AUX A/C EVPR BLO MDL OTLT DUCT (ACDelco #15814847) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
029 15920867 VALVE, MODE (AUX) (ACDelco #15-50767) CK107 (06) (CJ2, CJ3, C69) 2008-2013 01
030 15892074 TUBE, HTR CORE (AUX) (OUTLET) (ACDelco #15892074) CK107 (06) (CJ2, CJ3, C69) 2007-2013 01
031 11609953 STUD, A/C EVPR TXV (M8X1.25X11.5, M8X1.25X24, 46 TL, STAINLESS) (3.275) CK107 (06) (CJ2, CJ3, C69) 2007-2013 02
