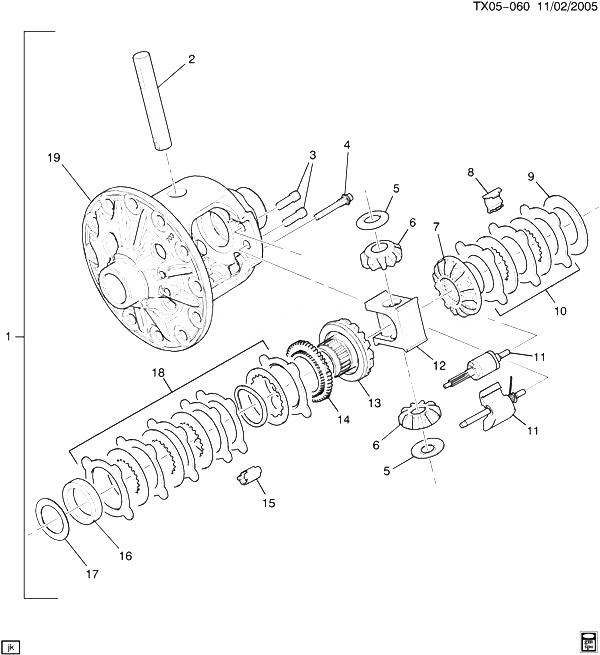

(TX05-060) 2009-2013 CK1(06-36) ОСЬ ЗАДНЯЯ В СБОРЕ 9.50 RING GEAR PART 2 DIFFERENTIAL/LOCKING(AXN,G80) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
012 88983792 BLOCK, LKG DIFF THR (BROWN) (40.79 MM) CK1 2011-2013 01
012 88983793 BLOCK, LKG DIFF THR (YELLOW) (40.89 MM) CK1 2011-2013 01
012 88983794 BLOCK, LKG DIFF THR (ORANGE) (41.00 MM) CK1 2011-2013 01
012 88983795 BLOCK, LKG DIFF THR (PINK) (41.10 MM) CK1 2011-2013 01
012 88983796 BLOCK, LKG DIFF THR (GREEN) (41.20 MM) CK1 2011-2013 01
013 GEAR, LKG DIFF SI (CAM FACED) (*KIT1) 2009-2013
014 12471411 CAM, LKG DIFF CK1 2007-2013 01
015 15599623 GUIDE, LKG DIFF CLU DISC (PART OF 18) (WIDTH .93 INCH) CK1 (G80) 2007-2013 04
016 00462786 SLEEVE, LKG DIFF SI GR THR CK1 (G80) 2007-2013 01
017 00462769 WASHER, LKG DIFF CLU DISC THR (.027 THK) CK1 (G80) 2007-2013 01
017 00462770 WASHER, LKG DIFF CLU DISC THR (.037 THK) CK1 (G80) 2007-2013 01
017 00462771 WASHER, LKG DIFF CLU DISC THR (.042 THK) CK1 (G80) 2007-2013 01
017 00462772 WASHER, LKG DIFF CLU DISC THR (.048 THK) CK1 (G80) 2007-2013 01
017 14039035 WASHER, LKG DIFF CLU DISC THR (.022 THK) CK1 (G80) 2007-2013 01
017 14039036 WASHER, LKG DIFF CLU DISC THR (.032 THK) CK1 (G80) 2007-2013 01
017 14039037 WASHER, LKG DIFF CLU DISC THR (.040 THK) CK1 (G80) 2007-2013 01
017 14039038 WASHER, LKG DIFF CLU DISC THR (.044 THK) CK1 (G80) 2007-2013 01
017 14039039 WASHER, LKG DIFF CLU DISC THR (.052 THK) CK1 (G80) 2007-2013 01
018 12471408 DISC SET, LKG DIFF CLU (INCLS 15) (EATON EDS-29566) CK1 (AXN, G80) 2007-2013 01
019 CASE, DIFF 2009-2013
K01 12471409 GEAR KIT, DIFF SI PINION (INCLS 6, 7, 13) CK1 (G80) 2007-2013 01
001 22849885 DIFFERENTIAL, (INCLS 2-19) (W/GEARS) CK1 2007-2013 01
001 22849885 DIFFERENTIAL, (INCLS 2-19) (W/GEARS) (5.510) CK1 2007-2013 01
002 14039025 SHAFT, DIFF P/GR (144.78 MM) CK1 (G80) 2007-2013 01
003 14048409 BUSHING, LKG DIFF LOCKOUT (30MM) (EATON EDS-98648) CK1 (G80) 2007-2013 02
004 12337979 BOLT, DIFF P/GR SHF (LOCK) (M10X1.5X59) (CONTAINS 10 LOCK SCREWS) CK1, 2, 3 2007-2013 01
005 14039026 WASHER, DIFF P/GR THR (DOME STYLE) CK1 (G80) 2007-2013 02
006 GEAR, DIFF PINION (*KIT1) 2009-2013
007 GEAR, LKG DIFF SI (SPLINED) (*KIT1) 2009-2013
008 00462787 GUIDE, LKG DIFF CLU DISC (PART OF 10) (WIDTH .71 INCH) CK1 (G80) 2007-2013 04
009 15599626 SHIM, DIFF SI GR (.010 THK) CK1 (G80) 2007-2013 01
009 15599627 SHIM, DIFF SI GR (.015 THK) CK1 (G80) 2007-2013 01
009 15599628 SHIM, DIFF SI GR (.020 THK) CK1 (G80) 2007-2013 01
009 15599629 SHIM, DIFF SI GR (.025 THK) CK1 (G80) 2007-2013 01
009 15599630 SHIM, DIFF SI GR (.030 THK) CK1 (G80) 2007-2013 01
009 15599631 SHIM, DIFF SI GR (.035 THK) CK1 (G80) 2007-2013 01
009 15599632 SHIM, DIFF SI GR (.040 THK) CK1 (G80) 2007-2013 01
009 15599633 SHIM, DIFF SI GR (.045 THK) CK1 (G80) 2007-2013 01
010 12471390 DISC SET, LKG DIFF CLU (INCLS 8) (EATON EDS-29565) CK1 (AXN, G80) 2007-2013 01
011 12471530 GOVERNOR KIT, LKG DIFF (EATON EDS-29672) (INCLS BRKT) CK1 2013-2013 01
012 12471393 BLOCK, LKG DIFF THR (PURPLE) (1.322 THK) CK1 (G80) 2007-2013 01
012 12471394 BLOCK, LKG DIFF THR (WHITE) (1.326 THK) CK1 (G80) 2007-2013 01
012 12471395 BLOCK, LKG DIFF THR (BROWN) (1.330 THK) CK1 (G80) 2007-2013 01
012 12471396 BLOCK, LKG DIFF THR (YELLOW) (1.334 THK) CK1 (G80) 2007-2013 01
012 12471397 BLOCK, LKG DIFF THR (ORANGE) (1.338 THK) CK1 (G80) 2007-2013 01
012 12471398 BLOCK, LKG DIFF THR (PINK) (1.342 THK) CK1 (G80) 2007-2013 01
012 12471399 BLOCK, LKG DIFF THR (GREEN) (1.346 THK) CK1 (G80) 2007-2013 01
012 88983789 BLOCK, LKG DIFF THR (BLUE) (40.49 MM) CK1 2011-2013 01
012 88983790 BLOCK, LKG DIFF THR (PURPLE) (40.59 MM) CK1 2011-2013 01
012 88983791 BLOCK, LKG DIFF THR (WHITE) (40.69 MM) CK1 2011-2013 01
