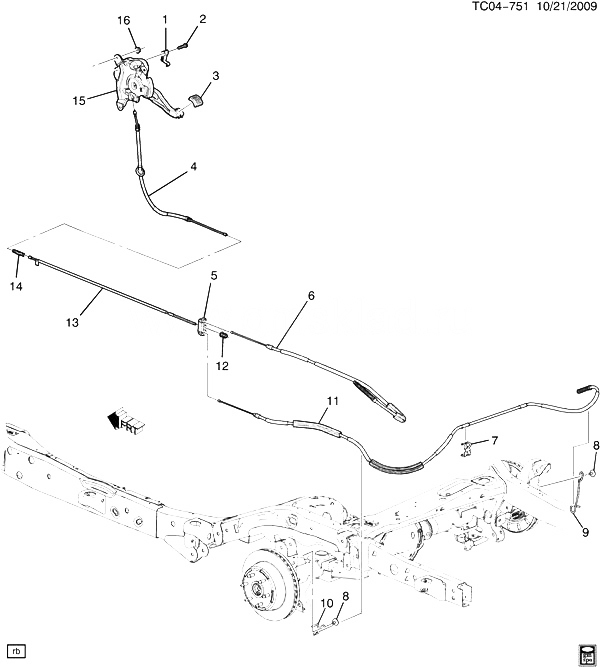

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25972876 |
SWITCH, PARK BRK (PART OF 15) (ACDelco #25972876) |
CK1 (JD9, JF3, JF7, J92) |
2010-2013 |
01 |
| 002 |
09418944 |
SCREW, HWH, SELF TAP, #10-16X1, 3/8 O.D., M6010M, ZN (PART OF 15) |
|
2009-2013 |
01 |
| 003 |
15298817 |
PAD, PARK BRK LVR PED (PART OF 15) |
CK1 |
2009-2013 |
01 |
| 004 |
|
CABLE, PARK BRK FRT (PART OF 15) |
|
2010-2013 |
|
| 005 |
|
EQUALIZER, PARK BRK CBL (PART OF 13) |
|
2010-2013 |
|
| 006 |
22851203 |
CABLE, PARK BRK RR (ACDelco #22851203) |
CK1 (06-36) |
2010-2013 |
01 |
| 007 |
15043173 |
CLIP, PARK BRK RR CBL (STEEL) (W/O HOLE) (W/3 OPENINGS) |
CK1 (06-36) |
2009-2013 |
02 |
| 008 |
11517560 |
SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (PARK BRK RR CBL GDE) |
|
2009-2013 |
02 |
| 009 |
15782541 |
GUIDE, PARK BRK RR CBL (RH REAR FRAME RAIL) |
CK1 (06-36) |
2009-2013 |
01 |
| 010 |
15049571 |
GUIDE, PARK BRK RR CBL (FRONT) |
CK1 (06-36) |
2009-2013 |
01 |
| 011 |
22851204 |
CABLE, PARK BRK RR (ACDelco #22851204) |
CK1 (06-36) |
2010-2013 |
01 |
| 012 |
11571172 |
NUT, PARK BRK CBL EQLZR (PART OF 13) (M6X1.0X22.35) |
CK1, 2, 3 |
2009-2013 |
01 |
| 013 |
25838763 |
CABLE, PARK BRK INTER (INCLS 5, 12, 14) (ACDelco #25838763) |
CK107 (06) |
2010-2013 |
01 |
| 014 |
|
CONNECTOR, PARK BRK CBL (PART OF 13) |
|
2010-2013 |
|
| 015 |
20970871 |
MODULE, PARK BRK CONT (INCLS 1-4) |
CK1 (JD9, JF3, JF7, J92) |
2010-2013 |
01 |
| 016 |
11516780 |
NUT, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917) |
|
2009-2013 |
03 |
