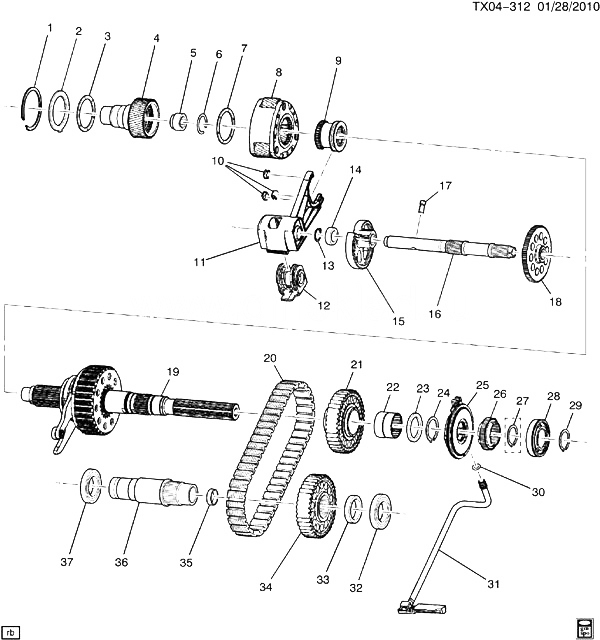

(TX04-312) 2008-2013 K1,2 РАЗДАТОЧНАЯ КОРОБКА (NQH) PART 2 INTERNAL COMPONENTS (MP 3023/3024) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19132997 RING, TRFER CASE HIGH/LOW PLNT CARR RET (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 2ND DES SEE 15547397) K1, 2, 3 (NQG, NQH) (1ST DES) 2007-2013 01
001 15547397 RING, TRFER CASE HIGH/LOW PLNT CARR RET (3 13/16 O.D. X 41/64 THK) (ACDelco #15547397) (FOR 2007-2013 BK1 NQG NQH ONLY-REF TSB 12-04-21-001 BEFORE ORDERING) (FOR 1ST DES SEE 19132997) K1, 2, 3 (NQG, NQH) (2ND DES) 2007-2013 01
002 19132996 PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFORE ORDERING (FOR 2ND DES SEE 19300745) K1 (MYC, M30, M99, NQG, NQH) (1ST DES) 2007-2013 01
002 19132996 PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFORE ORDERING (FOR 2ND DES SEE 19300745) K1 (MYC, M30, NQG, NQH) (1ST DES) 2007-2013 01
002 19300745 PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFOREORDERING (FOR 1ST DES SEE 19132996) K1 (MYC, M30, M99, NQG, NQH) (2ND DES) 2007-2013 01
002 19300745 PLATE, TRFER CASE HIGH/LOW LKG (REF TSB 12-04-001 BEFOREORDERING (FOR 1ST DES SEE 19132996) K1 (MYC, M30, NQG, NQH) (2ND DES) 2007-2013 01
003 19300746 WASHER, TRFER CASE PLNT CARR SUN GR THR (FOR 2007-2013 BK1 NQG NQH FNA X0175 ONLY REF TSB 12-04-21-001 BEFORE ORDERING (FOR 1ST DES SEE 19132995) K1 (MYC, M30, NQH) (2ND DES) 2007-2013 01
003 19132995 WASHER, TRFER CASE PLNT CARR SUN GR THR (FOR 2007-2013 BK1 NQG NQH FNA X0175 ONLY REF TSB 12-04-21-001 BEFORE ORDERING (FOR 2ND DES SEE 19300746) K1 (MYC, M30, NQH) (1ST DES) 2007-2013 02
004 19132978 SHAFT, TRFER CASE INPUT (INCLS 5) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299088) K1 (MYC, NQG, NQH) (1ST DES) 2012-2013 01
004 19299088 SHAFT, TRFER CASE INPUT (INCLS 5) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19132978) K1 (MYC, NQH, NQG) (2ND DES) 2009-2013 01
005 19132983 BEARING, TRFER CASE INPUT SHF PILOT (PART OF 4) K1 (NQH) 2007-2013 01
006 RING, TRFER CASE INPUT SHF PILOT BRG RET 1 2008-2013
007 19300746 WASHER, TRFER CASE PLNT CARR SUN GR THR (FOR 2007-2013 BK1 NQG NQH FNA X0175 ONLY REF TSB 12-04-21-001 BEFORE ORDERING (FOR 1ST DES SEE 19132995) K1 (MYC, M30, NQH) (2ND DES) 2007-2013 01
007 19132995 WASHER, TRFER CASE PLNT CARR SUN GR THR (FOR 2007-2013 BK1 NQG NQH FNA X0175 ONLY REF TSB 12-04-21-001 BEFORE ORDERING (FOR 2ND DES SEE 19300746) K1 (MYC, M30, NQH) (1ST DES) 2007-2013 02
008 19299090 CARRIER, TRFER CASE HIGH/LOW PLNT (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19132986) K1 (MYC, NQG, NQH) 2013-2013 01
008 19132986 CARRIER, TRFER CASE HIGH/LOW PLNT (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299090) K1 (MYC, NQG, NQH) (1ST DES) 2013-2013 01
009 19299092 CLUTCH, TRFER CASE HIGH/LOW (4.532) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19260068) K1 (MYC, NQG, NQH) (2ND DES) 2013-2013 01
009 19299093 CLUTCH, TRFER CASE HIGH/LOW (4.532) (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 1ST DES SEE 19260067) K1 (NQH) (2ND DES) 2013-2013 01
009 19260067 CLUTCH, TRFER CASE HIGH/LOW (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299093) K1 (NQH) (1ST DES) 2013-2013 01
009 19260068 CLUTCH, TRFER CASE HIGH/LOW (REF TSB 12-04-21-001A FOR DES STORY BEFORE ORDERING) (FOR 2ND DES SEE 19299092) K1 (MYC, NQG, NQH) (1ST DES) 2013-2013 01
010 19133033 PAD, TRFER CASE HIGH/LOW SHFT FORK (PART OF 11) K1, 2 (NQH) 2008-2013 03
011 19133031 FORK, TRFER CASE HIGH/LOW SHFT (INCLS 10) K1, 2 (NQH) 2008-2013 01
012 19133034 SPRING, TRFER CASE HIGH/LOW SHFT FORK K1, 2 (NQH) 2008-2013 01
013 19133027 RING, TRFER CASE TWO/FOUR WHL DRV ACTR CAM RET K1 (NQH) 2007-2013 01
014 19133028 SPACER, TRFER CASE TWO/FOUR WHL DRV ACTR CAM K1, 2 (NQH) 2008-2013 01
015 19133029 CAM, TRFER CASE TWO/FOUR WHL DRV ACTR K1, 2 (NQH) 2008-2013 01
016 19133025 SHAFT, TRFER CASE TWO/FOUR WHL DRV ACTR K1 (NQH) 2007-2013 01
017 19133202 PIN KIT, TRFER CASE HIGH/LOW SHFT FORK K1, 2 (NQH) 2008-2013 01
018 19133138 GEAR, TRFER CASE TWO/FOUR WHL DRV ACTR SHF K1, 2 (NQH) 2008-2013 01
019 SHAFT, TRFER CASE RR OUTPUT (SEE GROUP 04.000 TRANSFER CASE-CLUTCH COMPONENTS FOR DETAILED ILLUSTRATED VIEW) 2008-2013
020 19133129 CHAIN, TRFER CASE TWO/FOUR WHL DRV (7/16X1.25X84) K1 (NQH) 2007-2013 01
021 19133205 SPROCKET KIT, TRFER CASE FRT OUTPUT SHF DRV K1 (NQH) 2007-2013 01
022 19133111 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT K1 (NQG, NQH) 2013-2013 02
023 19133112 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT (REAR) K1, 2 (NQH) 2008-2013 01
024 19133113 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET K1 (NQG, NQH) 2007-2013 01
025 19133114 PUMP, TRFER CASE OIL K1 (NQH) 2007-2013 01
026 19133124 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (CODE FP) (ACDelco #19133124) K1 (MYC, NQH) 2009-2013 01
026 19133124 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (CODE FP) (4.329) (ACDelco #19133124) K1 (MYC, NQH) 2009-2013 01
027 19133125 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (ACDelco #19133125) K1 (MYC, M30, NQH) 2009-2013 02
028 19133127 BEARING, TRFER CASE RR OUTPUT SHF RR (ACDelco #19133127) K1 (NQH) 2011-2013 01
029 19133125 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (ACDelco #19133125) K1 (MYC, M30, NQH) 2009-2013 02
030 19133122 SEAL, TRFER CASE O/PMP SUC PIPE (PART OF 31) K1 (NQH) 2007-2013 01
031 19133120 PIPE, TRFER CASE O/PMP SUC (INCLS 30) K1 (NQG, NQH) 2007-2013 01
032 19133136 BEARING, TRFER CASE FRT OUTPUT SHF RR (ACDelco #19133136) K1, 2 (NQH) 2007-2013 01
033 19169064 SPACER, TRFER CASE FRT OUTPUT SHF DRVN SPKT K1, 2 (NQH) 2008-2013 01
034 19133134 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN K1 (NQH) 2007-2013 01
035 12473236 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (4.510) K1, 2 (NQH) 2008-2013 01
036 19259180 SHAFT, TRFER CASE FRT OUTPUT (REPL T/W 19259182) K1 (NQH) 2007-2013 01
037 19133136 BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #19133136) K1, 2 (NQH) 2007-2013 01
