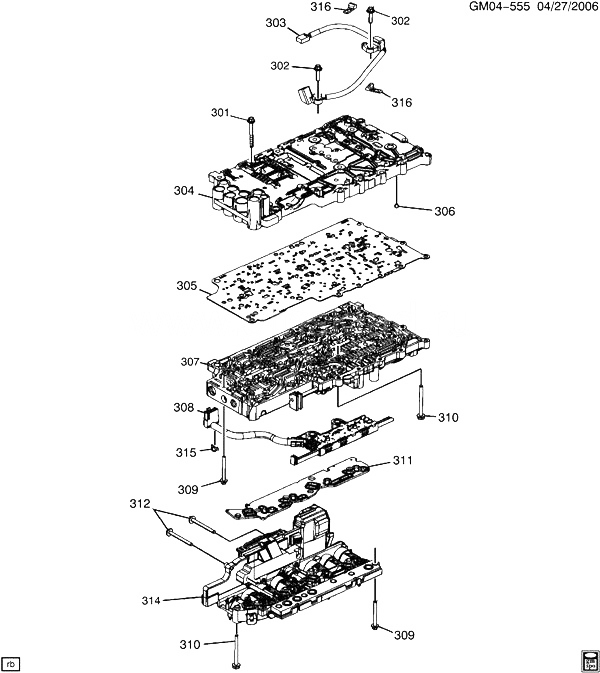

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 301 |
24227130 |
BOLT, C/VLV UPR BODY (M5X0.8X36) |
CK1 (MYC) |
2007-2013 |
12 |
| 302 |
24225398 |
BOLT, A/TRNS INPUT OUTPUT SPD SEN (M6 X 1.0 X 20) |
CK1, 2, 3 |
2007-2013 |
02 |
| 303 |
24265536 |
SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (KIT/UNIGEAR/STEP) (4.329) (ACDelco #24265536) |
CK1 (MYC) |
2013-2013 |
01 |
| 303 |
24265536 |
SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (KIT/UNIGEAR/STEP) (ACDelco #24265536) |
CK1 (MYC) |
2013-2013 |
01 |
| 304 |
24240961 |
BODY, C/VLV UPR (ACDelco #24240961) |
CK1 (MYC) |
2010-2013 |
01 |
| 305 |
24261077 |
PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) |
CK1 (MYC) |
2010-2013 |
01 |
| 306 |
96020431 |
VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) |
CK1 (MYC) |
2007-2013 |
07 |
| 307 |
24251431 |
BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) |
CK1 (MYC) |
2010-2013 |
01 |
| 308 |
24242938 |
SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) |
CK1 (MYC) |
2007-2013 |
01 |
| 309 |
24240848 |
BOLT, C/VLV LWR BODY (MX50.8X45.0) |
CK1 (MYC) |
2007-2013 |
10 |
| 310 |
24224822 |
BOLT, C/VLV LWR BODY (M5X0.8X55) |
CK1 (MYC) |
2007-2013 |
06 |
| 311 |
24236934 |
PLATE KIT, CONT SOL VLV FLTR (ACDelco #24236934) |
CK1, 2, 3 (MYC) |
2007-2013 |
01 |
| 312 |
24240845 |
BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) |
CK1 (MYC) |
2007-2013 |
02 |
| 314 |
24257213 |
VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS TCM (NOT A CONTROL VAL VE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS) (CODE 2D2A, 3DHA) |
CK1 (MYC) |
2013-2013 |
01 |
| 315 |
24236233 |
CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) |
CK1, 2, 3 |
2007-2013 |
01 |
| 316 |
24236504 |
CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) |
CK1, 2, 3 |
2009-2013 |
02 |
| 316 |
24265080 |
CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (BLACK) (UNIGEAR) |
CK1 (MYC) |
2012-2013 |
02 |
