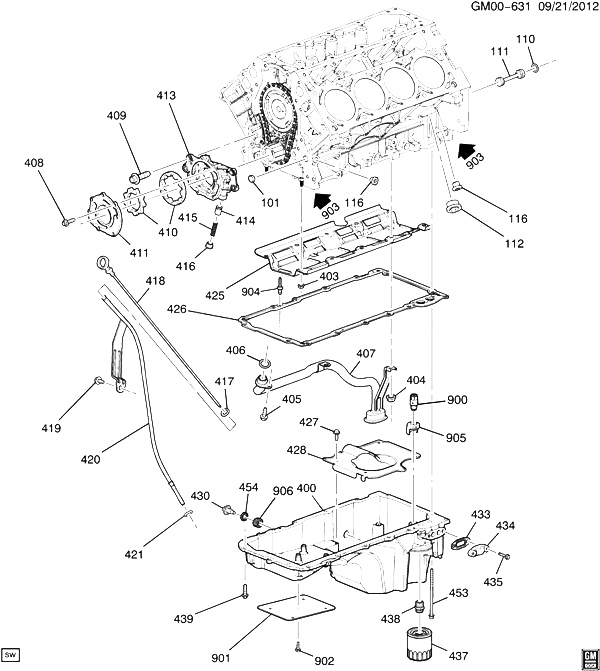

(GM00-631) 2011-2013 CK1 ДВИГАТЕЛЬ В СБОРЕ-5.3L V8 PART 4 МАСЛЯНЫЙ НАСОС, ПОДДОН И СОПРЯЖЕННЫЕ ДЕТАЛИ (LMG/5.3-0) CHEVROLET TAHOE (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
453 12554990 BOLT, OIL PAN (RR POSITIONS) (PART OF 400) (M6X1.0X136) CK1 (LC9, LMG) 2011-2013 02
454 12616850 SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 430) CK1 (LMG, LC9) 2011-2013 01
900 12608835 VALVE, OIL PRESS RLF (PART OF 400) CK1 (LC9, LMG) 2011-2013 01
901 12633653 DEADENER, OIL PAN (PART OF 400) CK1 (LMG) 2011-2013 01
902 11589241 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) 2011-2013 04
903 12346004 SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (OIL PAN) (ACDelco #10-2008) 2011-2013 AR
904 12558759 RIVET, OIL PAN GSKT CK1 (LMG, LC9) 2011-2013 02
905 12639759 DEFLECTOR, OIL PRESS RLF VLV (PART OF 400) CK1 (LMG, LC9, LZ1, L20) 2011-2013 01
906 11503302 INSERT, OIL PAN DRN PLUG THD CK1 (LC9, LMG, L9H, L94, MYC) 2011-2013 01
101 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2011-2013 01
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2011-2013
111 12573460 PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) CK1 (LMG) 2011-2013 01
112 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK OIL GAL) (8.971) 2011-2013 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2011-2013 02
400 12640746 PAN, OIL (INCLS BAFFLE, BOLTS, PLUG, DEADENER, GASKET, VALVE, FITTING, SEAL (EXC SWITCH) (INCLS 426-428, 430, 433-435, 438, 439, 453, 454, 900-902, 905) CK1 (LMG) 2011-2013 01
403 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (CR/SHF OIL DFL) 2011-2013 08
404 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (O/PMP SUC PIPE) 2011-2013 02
405 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (O/PMP SUC PIPE) 2011-2013 01
406 12584922 SEAL, O/PMP SUC PIPE (O RING) (PART OF 407) (ORANGE) (19.63MM I.D., 4.32MM THICKNESS) (TEFLON COATED) (1.724) CK1 (LC9, LMG) 2011-2013 01
407 12608579 SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) CK1 (LC9, LMG) 2011-2013 01
408 11519133 BOLT, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) 2011-2013 07
409 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP) 2011-2013 04
410 GEAR SET, O/PMP (PART OF 413) 2011-2013
411 COVER, O/PMP (PART OF 413) 2011-2013
413 12586665 PUMP, OIL (INCLS 408, 410, 411, 414-416) CK1 (LMG) 2011-2013 01
414 VALVE, OIL PRESS RLF (PART OF 413) 2011-2013
415 SPRING, OIL PRESS RLF VLV (PART OF 413) 2011-2013
416 PLUG, OIL PRESS RLF VLV BORE (PART OF 413) 2011-2013
417 24504031 SEAL, OIL LVL IND (O RING) (PART OF 418) (RED) CK1 (LMG) 2011-2013 01
418 12622055 INDICATOR, OIL LVL (INCLS 417) CK1 (LMG, LC9) 2011-2013 01
419 11588736 BOLT, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (OIL LVL IND TUBE) 2011-2013 01
420 12609269 TUBE, OIL LVL IND (INCL SEAL) (INCLS 421) CK1 (LMG) 2011-2013 01
421 24504031 SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (RED) CK1 (LMG) 2011-2013 01
425 12611129 DEFLECTOR, CR/SHF OIL CK1 (LMG, LC9) 2011-2013 01
426 12612350 GASKET, OIL PAN (PART OF 400) CK1 (LMG, LC9) 2011-2013 01
427 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) 2011-2013 04
428 BAFFLE, OIL PAN (PART OF 400) 2011-2013
430 11562588 PLUG, OIL PAN DRN (PART OF 400) (INCLS 454) (M12X1.75X25) (W/SEAL) (EXC MAGNET) CK1 (LMG, LC9, LU3) 2011-2013 01
433 12611384 GASKET, OIL PAN CVR (USE T/W 11588714 BOLT QTY 02) (PART OF 400) CK1 (LMG, LC9) 2011-2013 01
434 12577903 COVER, OIL PAN (PART OF 400) CK1 (LC9, LMG) 2011-2013 01
435 11588714 BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 400) 2011-2013 02
437 89017524 FILTER, OIL (W/O TOP MOUNTED FILTER BYPASS VALVE) (ACDelco #PF48) (DURAGUARD) CK1 (LMG) 2011-2013 01
438 12600225 FITTING, OIL FLTR (PART OF 400) CK1 (LC9, LMG) 2011-2013 01
439 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400) 2011-2013 13
