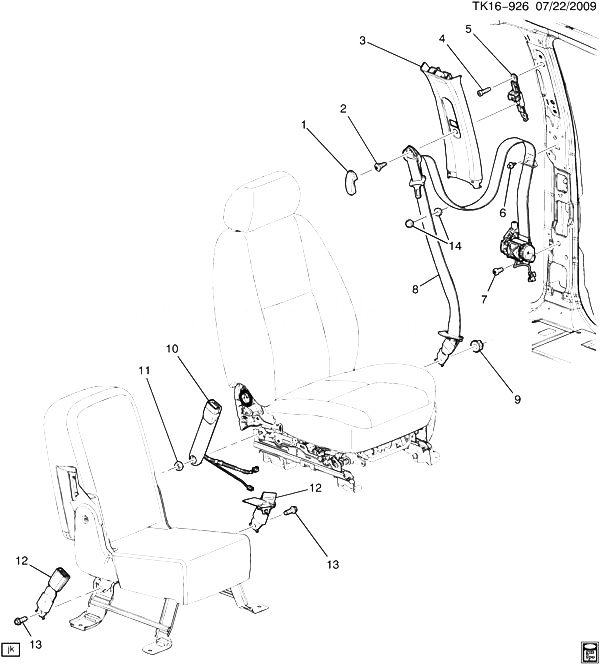

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15257724 |
COVER, P/SEAT SHLDR BELT GDE ADJR OPG (GRAY) |
CK1, 2 (06-36) (19I, 83I) |
2010-2013 |
01 |
| 001 |
25831268 |
COVER, D/SEAT SHLDR BELT GDE ADJR OPG (LINEN) |
CK1 (41I) |
2010-2013 |
01 |
| 001 |
25831268 |
COVER, P/SEAT SHLDR BELT GDE ADJR OPG (LINEN) |
CK1 (41I) |
2010-2013 |
01 |
| 001 |
15257724 |
COVER, D/SEAT SHLDR BELT GDE ADJR OPG (GRAY) |
CK1, 2 (06-36) (19I, 83I) |
2010-2013 |
01 |
| 001 |
15257726 |
COVER, D/SEAT SHLDR BELT GDE ADJR OPG (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2012-2013 |
01 |
| 001 |
15257726 |
COVER, P/SEAT SHLDR BELT GDE ADJR OPG (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2012-2013 |
01 |
| 002 |
|
BOLT, D/SEAT SHLDR BELT RETR ANC PLT (PART OF 8) |
|
2010-2013 |
|
| 002 |
|
BOLT, P/SEAT SHLDR BELT RETR ANC PLT (PART OF 8) |
|
2010-2013 |
|
| 003 |
|
MOLDING, CTR PLR UPR GARN (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) (GRAY) |
|
2010-2013 |
|
| 004 |
|
BOLT, D/SEAT SHLDR BELT GDE (PART OF 5) |
|
2010-2013 |
|
| 004 |
|
BOLT, P/SEAT SHLDR BELT GDE (PART OF 5) |
|
2010-2013 |
|
| 005 |
25901990 |
ADJUSTER, D/SEAT SHLDR BELT GDE (INCLS 4) (LINEN) |
CK1 (41I) |
2010-2013 |
01 |
| 005 |
25901990 |
ADJUSTER, P/SEAT SHLDR BELT GDE (INCLS 4) (LINEN) |
CK1 (41I) |
2010-2013 |
01 |
| 005 |
25901985 |
ADJUSTER, D/SEAT SHLDR BELT GDE (INCLS 4) (GRAY) |
CK1, 2 (06-36) (19I, 83I) |
2010-2013 |
01 |
| 005 |
25901985 |
ADJUSTER, P/SEAT SHLDR BELT GDE (INCLS 4) (GRAY) |
CK1, 2 (06-36) (19I, 83I) |
2010-2013 |
01 |
| 005 |
25901987 |
ADJUSTER, D/SEAT SHLDR BELT GDE (INCLS 4) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2012-2013 |
01 |
| 005 |
25901987 |
ADJUSTER, P/SEAT SHLDR BELT GDE (INCLS 4) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2012-2013 |
01 |
| 006 |
|
RETAINER, D/SEAT BELT (PUSH ON) (PART OF 8) |
|
2010-2013 |
|
| 006 |
|
RETAINER, P/SEAT BELT (PUSH ON) (PART OF 8) |
|
2010-2013 |
|
| 007 |
11609471 |
BOLT, D/SEAT BELT (RETR SI) (PART OF 8) (M12X1.75X28) (14.875) |
CK1, 2, 3 (03-06-36-43) |
2010-2013 |
01 |
| 007 |
11609471 |
BOLT, P/SEAT BELT RETR (PART OF 8) (M12X1.75X28) (14.875) |
CK1, 2, 3 |
2010-2013 |
|
| 008 |
19258508 |
BELT KIT, P/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (EBONY) |
CK1 (06-36) (X88, Z88, 19I) (EXC AX4, HP2) |
2011-2012 |
01 |
| 008 |
19258509 |
BELT KIT, P/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (CASHMERE) |
CK1 (06-36) (X88, Z88, 33I, 39I) (EXC AX4, HP2) |
2011-2012 |
01 |
| 008 |
19258510 |
BELT KIT, P/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (TITANIUM) |
CK1 (06) (83I) (EXC AX4) |
2011-2012 |
01 |
| 008 |
19258512 |
BELT KIT, P/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (COCOA) |
CK1 (06) (41I) (EXC AX4) |
2011-2012 |
01 |
| 008 |
19258519 |
BELT KIT, D/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (EBONY) |
CK1 (06-36) (X88, Z88, 19I) (EXC AX4, HP2) |
2011-2012 |
01 |
| 008 |
19258520 |
BELT KIT, D/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (CASHMERE) |
CK1 (06-36) (X88, Z88, 33I, 39I) (EXC AX4, HP2) |
2011-2012 |
01 |
| 008 |
19258521 |
BELT KIT, D/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (TITANIUM) |
CK1 (06-36) (83I) (EXC AX4, HP2) |
2011-2012 |
01 |
| 008 |
19258523 |
BELT KIT, D/SEAT (RETR SI) (W/PRE-TENSR) (INCLS 2, 6, 7, 14) (COCOA) |
CK1 (06) (41I) (EXC AX4) |
2011-2012 |
01 |
| 008 |
20899406 |
RETRACTOR, F/SEAT BELT (RETR SI) (EBONY) |
K1 (06) (AX4, 19I) (EXPORT) |
2010-2012 |
01 |
| 008 |
20899407 |
RETRACTOR, F/SEAT BELT (RETR SI) (CASHMERE) |
K1 (06) (AX4, 39I) (EXPORT) |
2010-2012 |
01 |
| 008 |
20899448 |
RETRACTOR, F/SEAT BELT (RETR SI) (CASHMERE) |
K1 (06) (AX4, 39I) (EXPORT) |
2010-2012 |
01 |
| 008 |
20899447 |
BELT, P/SEAT (RETR SI) (W/ TENSR) (INCLS 2, 6, 7, 14) (EBONY) |
K1 (06) (AX4, 19I) (EXPORT) |
2010-2012 |
01 |
| 008 |
22856522 |
RETRACTOR, F/SEAT BELT (RETR SI) (EBONY) (W/PRETENSIONER) |
CK1 (06) (AX4, 19I) (EXPORT) |
2010-2013 |
01 |
| 008 |
22856557 |
RETRACTOR, F/SEAT BELT (RETR SI) (COCOA) (W/PRETENSIONER) |
K1 (06) (AX4, 41I) (EXPORT) |
2010-2013 |
01 |
| 008 |
22856524 |
RETRACTOR, F/SEAT BELT (RETR SI) (COCOA) (W/PRETENSIONER) |
K1 (06) (AX4, 41I) (EXPORT) |
2010-2012 |
01 |
| 009 |
15035434 |
NUT, D/SEAT BELT (RETR SI) (M10X1.5X10.8) (FLANGE NUT) (16.679) |
CK1, 2 |
2010-2013 |
01 |
| 009 |
15035434 |
NUT, P/SEAT BELT (RETR SI) (M10X1.5X10.8) (FLANGE NUT) (16.679) |
CK1, 2 |
2010-2013 |
01 |
| 010 |
19121539 |
BELT KIT, D/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AN3, 83I) |
2010-2013 |
01 |
| 010 |
19168663 |
BELT KIT, D/SEAT (BKL SI) (TITANIUM) |
CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) |
2010-2012 |
01 |
| 010 |
19121538 |
BELT KIT, D/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (A95, 31I, 33I) |
2010-2013 |
01 |
| 010 |
19121539 |
BELT KIT, D/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AZ3, 83I) |
2010-2013 |
01 |
| 010 |
19121539 |
BELT KIT, D/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AG2, AL0, A95, 833) (EXC HP2) |
2010-2013 |
01 |
| 010 |
19121543 |
BELT KIT, P/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AN3, 83I) |
2010-2013 |
01 |
| 010 |
19121543 |
BELT KIT, P/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AZ3, 83I) |
2010-2013 |
01 |
| 010 |
19121543 |
BELT KIT, P/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06-36) (AG2, AL0, A95, 83I) (EXC HP2) |
2010-2013 |
01 |
| 010 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (AE7, 19I, 88I) |
2010-2013 |
01 |
| 010 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AL0, AZ3, 19I) |
2010-2013 |
01 |
| 010 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AN3, 19I) |
2010-2013 |
01 |
| 010 |
19121541 |
BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AL0, A95, 19I) (EXC HP2) |
2010-2013 |
01 |
| 010 |
19121538 |
BELT KIT, D/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AZ3, 33I) |
2010-2013 |
01 |
| 010 |
19121537 |
BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AZ3, 19I) |
2010-2013 |
01 |
| 010 |
19121537 |
BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06-36) (AN3, 19I) |
2010-2013 |
01 |
| 010 |
19121538 |
BELT KIT, D/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AN3, 33I, 39I) |
2012-2013 |
01 |
| 010 |
19121542 |
BELT KIT, P/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AL0, AZ3, 33I) |
2012-2013 |
01 |
| 010 |
19121542 |
BELT KIT, P/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AL0, A95, 33I) |
2012-2013 |
01 |
| 010 |
19121542 |
BELT KIT, P/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06-36) (AL0, AN3, 33I, 39I) |
2012-2013 |
01 |
| 010 |
19121537 |
BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) |
CK1, 2 (06) (A95, 19I) |
2012-2013 |
01 |
| 011 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT BELT (BKL SI)) (ACDelco #11517996) |
|
2010-2013 |
AR |
| 011 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT BELT (BKL SI)) (ACDelco #11517996) |
|
2010-2013 |
AR |
| 012 |
19177727 |
BELT KIT, F/SEAT CTR (TITANIUM) (BKL/LAT) |
CK1, 2 (06) (AZ3, 83I) |
2010-2013 |
01 |
| 012 |
19177725 |
BELT KIT, F/SEAT CTR (EBONY) (BKL/LAT) |
CK1, 2 (06-36) (AZ3, 19I) |
2010-2013 |
01 |
| 012 |
19177726 |
BELT KIT, F/SEAT CTR (CASHMERE) (BKL/LAT) |
CK1, 2 (06) (AZ3, AL0, 33I) |
2012-2013 |
01 |
| 013 |
12473319 |
BOLT, F/CTR SEAT BELT BKL (M12X1.75X37) (HEX) (OUTER) (16.682) |
CK1, 2, 3 |
2010-2013 |
01 |
| 014 |
19121446 |
STOP KIT, BELT LAT (RETR SI) (PART OF 8) (EBONY) (14.875) |
CK1, 2, 3 (19I, 85I, 88I) |
2010-2013 |
01 |
| 014 |
19121443 |
STOP KIT, BELT LAT (RETR SI) (PART OF 8) (TITANIUM) (14.875) |
CK1, 2, 3 (83I) |
2012-2013 |
01 |
| 014 |
19121445 |
STOP KIT, BELT LAT (RETR SI) (PART OF 8) (CASHMERE) (14.875) |
CK1, 2, 3 (33I, 39I) |
2012-2013 |
01 |
| 014 |
19207765 |
STOP KIT, BELT LAT (RETR SI) (PART OF 8) (COCOA) (14.875) |
CK1 (41I) |
2012-2013 |
01 |
