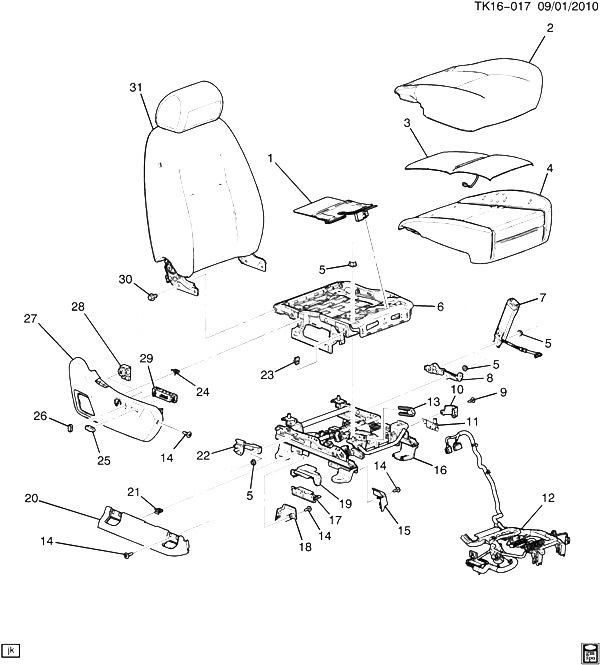

(TK16-017) 2010-2013 CK1,2(06-36) СИДЕНЬЕ ПАССАЖИРА/BUCKET-CUSHION (AN3, EXC HEATED/VENTED HNE,KB6) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20919641 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 4) CK1, 2, 3 (EXC KB6) 2010-2013 01
002 20779855 COVER, P/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) CK1, 2, 3 (AN3, 193) 2010-2013 01
002 20779857 COVER, P/SEAT CUSH (TITANIUM) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) CK1, 2, 3 (AN3, 833, 843) 2010-2013 01
002 20779856 COVER, P/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) CK1, 2, 3 (AN3, 333) 2010-2013 01
003 20792748 HEATER, P/SEAT CUSH CK1, 2, 3 (AN3) (EXC KB6) 2010-2013 01
004 25864494 PAD, P/SEAT CUSH (PART OF 1) CK1, 2 (06) (AN3) (EXC KB6) 2010-2013 01
005 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) (ACDelco #11517996) 2010-2013 09
006 22781429 FRAME, P/SEAT CUSH CK1, 2, 3 2010-2013 01
007 19121543 BELT KIT, P/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AN3, 83I) 2010-2013 01
007 19121541 BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) CK1, 2 (06-36) (AN3, 19I) 2010-2013 01
007 19121542 BELT KIT, P/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AL0, AN3, 33I, 39I) 2012-2013 01
008 25916855 BRACKET, P/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 2010-2013 01
009 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2010-2013 06
010 20958089 COVER, AIRBAG P/SEAT POSN SEN CK1, 2 (06-36) 2010-2013 01
011 25954737 SENSOR, AIRBAG P/SEAT POSN CK1, 2 (06-36) (AL0, AN3, 19I, 33I, 83I) (EXC Y91) 2010-2013 01
012 22781385 HARNESS, P/SEAT ADJR WRG CK1, 2 (06-36) (AL0, AN3, 193, 333, 833) (EXC Y91) 2012-2013 01
014 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2010-2013 05
015 15243860 COVER, P/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2010-2013 01
015 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2010-2013 01
015 15243859 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
016 22756843 ADJUSTER, P/SEAT (POWER 6-WAY) CK1, 2, 3 (AN3) 2011-2013 01
017 15827135 BRACKET, P/SEAT FRT (FOR HD VEHICLES) CK1, 2, 3 2012-2013 01
018 15243869 COVER, P/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
018 15243870 COVER, P/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
018 15243871 COVER, P/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2010-2013 01
019 20970793 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88) (EXC Y91) 2011-2013 01
020 15232589 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 21) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
020 15232590 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 21) (CASHMERE) (OUTBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
020 15232591 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 21) (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2010-2013 01
021 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 20) 2010-2013 01
022 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 2010-2013 01
023 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2010-2013 02
024 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 27) 2010-2013 03
025 10325879 KNOB, P/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I, 33I, 83I) 2012-2013 01
026 15222985 KNOB, F/SEAT BK RECL (TITANIUM) (11.377) CK1, 2, 3 (83I) 2010-2013 02
026 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (33I) 2010-2013 02
027 15232567 COVER, P/SEAT ADJR FIN (INCLS 24) (EBONY) (POWER) CK1, 2 (06-36) (AN3, 19I) 2010-2013 01
027 15232568 COVER, P/SEAT ADJR FIN (INCLS 24) (CASHMERE) (POWER) CK1, 2 (06-36) (AN3, 33I, 39I) 2010-2013 01
027 15232569 COVER, P/SEAT ADJR FIN (INCLS 24) (TITANIUM) (POWER) CK1, 2 (06-36) (AN3, 83I) 2010-2013 01
028 25926719 SWITCH, P/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD FORWD ONLY) CK1, 2, 3 (193) 2010-2012 01
028 25926718 SWITCH, P/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD FORWD ONLY) (11.378) CK1, 2 (06-36) (AL0, AN3, 193, 333, 833) (EXC KB6, Y91, Z03) 2012-2013 01
028 25926719 SWITCH, P/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD FORWD ONLY) CK1 (19I, 312) 2012-2012 01
029 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) (11.558) CK1, 2, 3 2010-2013 01
030 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2010-2013 08
031 PAD, P/SEAT BK (SEE GROUP 16.000 PASSENGER SIDE/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) 2010-2013
