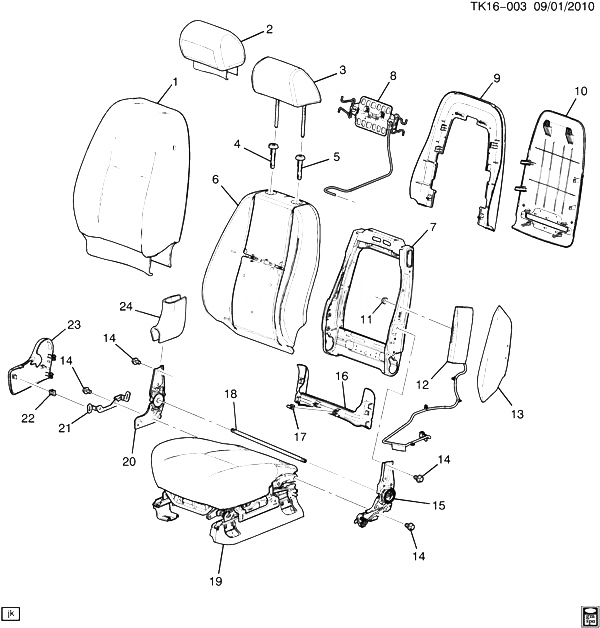

(TK16-003) 2012-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-BACK (A95) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20904122 COVER, D/SEAT BK (CASHMERE) CK1, 2 (06-36) (A95, 33C) 2010-2013 01
001 20843355 COVER, D/SEAT BK (EBONY) CK1, 2 (06-36) (AL0, A95, 19C) 2010-2013 01
001 20772421 COVER, D/SEAT BK (TITANIUM) CK1, 2 (06-36) (AG2, AL0, A95, 833) 2011-2013 01
001 20772419 COVER, D/SEAT BK (EBONY) CK1, 2 (06-36) (AG2, AL0, A95, 193) 2011-2013 01
001 20987367 COVER, D/SEAT BK (CASHMERE) CK1, 2 (06) (AG2, A95, 333) 2010-2013 01
002 COVER, D/SEAT H/RST (PART OF 3) 2012-2013
003 20998437 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (A95, 19C) 2010-2013 01
003 20998438 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1, 2, 3 (A95, 33C) 2011-2013 01
003 20998441 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2, 3 (A95, 193, 196, 853) (EXC HP2) 2011-2013 01
003 20998442 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1, 2, 3 (A95, 333) 2012-2013 01
003 20998443 RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (A95, 836) (EXC HP2) 2012-2013 01
003 20998443 RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) CK1, 2, 3 (A95, 833) 2012-2013 01
004 20912675 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2, 3 (33I, 39I) 2010-2013 02
004 15279347 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2, 3 (19I) 2010-2013 02
004 20912676 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2010-2013 02
005 20912679 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I) 2010-2013 02
005 20912680 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (33I, 39I) 2010-2013 02
005 15279353 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2010-2013 02
006 20772086 PAD, D/SEAT BK CK1, 2 (06-36) (A95) 2011-2013 01
007 22856907 FRAME, D/SEAT BK (INCLS 8, 15, 18, 20) CK1, 2 (06-36) (AG2, AL0, A95, 193, 333, 833) 2012-2013 01
007 20951086 FRAME, D/SEAT BK (INCLS 8, 15, 18, 20) (W/MAN RECLINERS MAN LUMBAR USE W/SIAB) CK1, 2 (06-36) (AG2, AL0, A95, 19C, 33C) 2011-2013 01
008 20824567 LUMBAR SUB, D/SEAT (PART OF 7) CK1, 2 (06-36) (AG2, AL0, A95, 19C, 33C) 2012-2013 01
008 20824567 LUMBAR SUB, D/SEAT (PART OF 7) CK1, 2 (06) (AG2, AL0, A95, 193, 333, 833) 2012-2013 01
009 20823362 BEZEL, F/SEAT BK OPG RR CK1, 2, 3 2010-2013 01
010 20926189 PANEL, D/SEAT BK FIN (CASHMERE) CK1, 2 (06-36) (AG2, AL0, A95, 33C) 2011-2013 01
010 20926188 PANEL, D/SEAT BK FIN (EBONY) (CLOTH) (W/CLOTH MAP POCKET) CK1, 2 (06-36) (AG2, AL0, A95, 19C) 2010-2013 01
010 20926204 PANEL, D/SEAT BK FIN (CASHMERE) (W/MAP POCKET) CK1, 2 (06-36) (AG2, AL0, A95, 333) 2011-2013 01
010 20926205 PANEL, D/SEAT BK FIN (TITANIUM) (W/MAP POCKET) CK1, 2 (06-36) (AG2, AL0, A95, 833) 2011-2013 01
010 20926203 PANEL, D/SEAT BK FIN (EBONY) (W/MAP POCKET) (VINYL) CK1, 2 (06-36) (AE7, AZ3, A95, 19V, 193) 2010-2013 01
011 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT) 2010-2013 07
012 22755968 AIRBAG, D/SEAT SI CK1, 2 (06-36) 2012-2013 01
013 20824892 GUIDE, D/SEAT SI AIRBAG CK1, 2, 3 2010-2013 01
014 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2010-2013 08
015 RECLINER, D/SEAT OTR (PART OF 7) 2012-2013
016 15827131 COVER, F/SEAT RSR FIN (INCLS 17) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I) 2010-2013 02
016 15827129 COVER, F/SEAT RSR FIN (INCLS 17) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2, 3 (19I, 88I) 2010-2013 02
016 15827130 COVER, F/SEAT RSR FIN (INCLS 17) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2, 3 (33I, 39I) 2010-2013 02
017 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 16) 2010-2013 04
018 RECLINER, D/SEAT (PART OF 7) 2012-2013
019 PAD, D/SEAT CUSH (SEE GROUP 16.000 DRIVER SEAT/BUCKET-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2010-2013
020 RECLINER, D/SEAT INR (PART OF 7) 2012-2013
021 25934810 BRACKET, D/SEAT RECL (I/B) CK1, 2, 3 2010-2013 01
022 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 23) 2010-2013 02
023 15243824 COVER, D/SEAT INR RECL FIN (INCLS 22) (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2013 01
023 15243825 COVER, D/SEAT INR RECL FIN (INCLS 22) (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2010-2013 01
023 15243823 COVER, D/SEAT INR RECL FIN (INCLS 22) (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2011-2013 01
024 15855909 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% LH) CK1, 2, 3 2010-2013 02
024 15855911 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% RH) CK1, 2, 3 2010-2013 02
