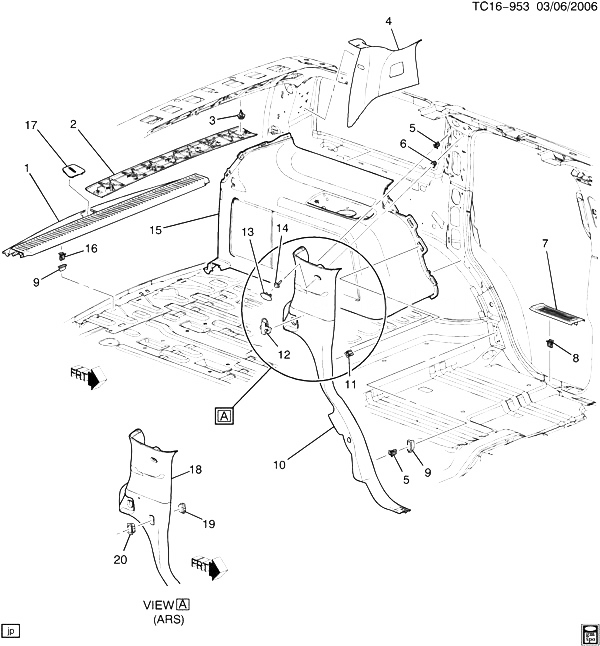

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931759 |
PLATE, R/FLR RR TR (INCLS 16) (TITANIUM) |
CK1, 2 (06) (83I) (EXC Y91) |
2007-2013 |
01 |
| 001 |
15931760 |
PLATE, R/FLR RR TR (INCLS 16) (EBONY) |
CK1, 2 (06) (19I) (EXC Y91) |
2009-2013 |
01 |
| 001 |
15931758 |
PLATE, R/FLR RR TR (INCLS 16) (CASHMERE) |
CK1, 2 (06) (33I) (EXC Y91) |
2009-2013 |
01 |
| 002 |
15905684 |
MOLDING, BK BODY OPG GARN (INCLS 3) (CASHMERE) |
CK1, 2 (06) (33I) |
2009-2013 |
01 |
| 002 |
15905681 |
MOLDING, BK BODY OPG GARN (INCLS 3) (GRAY) |
CK1, 2 (06) (X88, Z88, 19I, 83I) |
2009-2013 |
01 |
| 003 |
11561654 |
RETAINER, CTR PLR G/MLDG (PART OF 2) (PLAIN) (BIRDS BEAK SINGLE) (FITS 8.5 DIA HOLE) (12.800) |
CK1, 2 (06-36) (X88, Z88) |
2007-2013 |
04 |
| 004 |
|
MOLDING, BODY RR COR UPR GARN (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10, 18) |
|
2007-2013 |
10 |
| 006 |
11609651 |
CLIP, BODY L/PLR G/MLDG (PART OF 10, 18) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) |
CK1, 2 (06) |
2007-2013 |
02 |
| 007 |
15873279 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (06) (STZ, 33I) |
2009-2013 |
02 |
| 007 |
15873281 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) |
CK107 (06) (STZ, X88, 19I) |
2009-2013 |
02 |
| 007 |
15873280 |
PLATE, RR S/D SILL TR (INCLS 8) (TITANIUM) |
CK107 (06) (STZ, 83I) |
2009-2013 |
02 |
| 007 |
25977910 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (06) (X88, Z88, 33I) (EXC STZ, Y91) |
2009-2013 |
02 |
| 007 |
25977911 |
PLATE, RR S/D SILL TR (INCLS 8) (TITANIUM) |
CK107 (06) (X88, Z88, 83I) (EXC STZ, Y91) |
2009-2013 |
02 |
| 007 |
25977912 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) |
CK107 (06) (X88, Z88, 19I) (EXC STZ, Y91) |
2009-2013 |
02 |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7) |
|
2007-2013 |
04 |
| 009 |
15043000 |
PLUG, R/CMPT SILL TR PLT HOLE (38.0 X 17.0 X 18.0MM) (OBLONG) (16.600) |
CK1, 2 (06) |
2007-2013 |
10 |
| 010 |
20986791 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (DUAL TONE PART) (GRANITE OPAL UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871307) |
CK107 (06) (19I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986792 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (DUAL TONE PART) (GRANITE CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871308) |
CK107 (06) (39I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986794 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (DUAL TONE PART)CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871310) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986795 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) (DUAL TONE PART) (GRANITE OPAL UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871311) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986796 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (DUAL TONE PART) (GRAY UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871312) |
CK107 (06) (19I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986797 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (DUAL TONE PART) (CASHMERE GRANITE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871313) |
CK107 (06) (39I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
22871305 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986789) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871306 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986790) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871307 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986791) |
CK107 (06) (19I) (EXC ARS, ULT) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871308 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986792) |
CK107 (06) (39I) (EXC ARS) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871311 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986795) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871312 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (EBONY) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986796) |
CK107 (06) (19I) (EXC ARS, ULT) (2ND DES) |
2012-2012 |
01 |
| 010 |
22871313 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986797) |
CK107 (06) (39I) (EXC ARS) (2ND DES) |
2012-2012 |
01 |
| 010 |
20986789 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (DUAL TONE PART) (CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871305) |
CK107 (06) (X88, Z88, 33I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
20986790 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (TITANIUM) (DUAL TONE PART) (GRANITE OPAL UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871306) |
CK107 (06) (X88, Z88, 83I) (EXC ARS) (1ST DES) |
2012-2012 |
01 |
| 010 |
22871310 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14) (CASHMERE) (DUAL TONE PART)CASHMERE UPR) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986794) |
CK107 (06) (X88, Z88, 33I) (2ND DES) |
2012-2012 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10, 18) |
|
2007-2013 |
08 |
| 012 |
15214080 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 18) (TITANIUM) |
CK1, 2 (06) (X88, Z88, 83I) |
2007-2013 |
02 |
| 012 |
15214081 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 18) (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
02 |
| 012 |
15214079 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 18) (CASHMERE) |
CK1, 2, 3 (X88, Z88, 33I, 39I) |
2012-2013 |
02 |
| 013 |
15278077 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (X88, Z88, 33I) |
2009-2013 |
01 |
| 013 |
15278078 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (X88, Z88, 33I) |
2009-2013 |
01 |
| 013 |
15278075 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (GRAY) |
CK107 (06) (19I, 83I) |
2009-2013 |
01 |
| 013 |
15278076 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (GRAY) |
CK107 (06) (19I, 83I) |
2009-2013 |
01 |
| 013 |
15278083 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (39I) |
2009-2013 |
01 |
| 013 |
15278084 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 18) (CASHMERE) |
CK107 (06) (39I) |
2009-2013 |
01 |
| 014 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 10, 18) (8.977) |
|
2007-2013 |
02 |
| 015 |
|
PANEL, BODY SI TR (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) (EBONY) (INCLS HIGH VOLTAGE PWR OUTLET 25858121) |
|
2007-2013 |
|
| 016 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) |
|
2007-2013 |
10 |
| 017 |
15274516 |
COVER, L/GATE LK STKR (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
01 |
| 017 |
20986776 |
COVER, L/GATE LK STKR (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
01 |
| 017 |
20986777 |
COVER, L/GATE LK STKR (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2013 |
01 |
| 018 |
15900736 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (FOR VEHICLES LOCATED IN CHINA) (TITANIUM LWR, GRAY UPR) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2012 |
01 |
| 018 |
15900735 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLE LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2012 |
01 |
| 018 |
15900741 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) |
CK107 (06) (ARS, X88, Z88, 33I) |
2009-2012 |
01 |
| 018 |
15900742 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (FOR VEHICLES LOCATED IN CHINA) (TITANIUM LWR, GRAY UPR) |
CK107 (06) (ARS, X88, Z88, 83I) |
2007-2012 |
01 |
| 018 |
15900737 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (FOR VEHICLES LOCATED IN CHINA) (EBONY LWR, GRAY UPR) |
CK107 (06) (ARS, 19I) |
2009-2012 |
01 |
| 018 |
15900743 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (FOR VEHICLES LOCATED IN CHINA) (EBONY LWR, GRAY UPR) |
CK107 (06) (ARS, 19I) |
2009-2012 |
01 |
| 018 |
15900738 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) |
CK107 (06) (ARS, 39I) |
2009-2012 |
01 |
| 018 |
15900744 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) |
CK107 (06) (ARS, 39I) |
2009-2012 |
01 |
| 018 |
22837613 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (FOR VEHICLES NOT LOCATED IN CHINA) (EBONY LWR, GRAY UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871317) |
CK107 (06) (ARS, 19I) (EXC ULT) (1ST DES) |
2012-2012 |
01 |
| 018 |
22837618 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (FOR VEHICLES NOT LOCATED IN CHINA) (EBONY LWR, GRAY UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871322) |
CK107 (06) (ARS, 19I) (EXC ULT) (1ST DES) |
2012-2012 |
01 |
| 018 |
22871315 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (FOR VEHICLES BUILT ON/AFTER 11/21/11) (FOR 1ST DES SEE 22837611) |
CK107 (06) (ARS, X88, Z88, 33I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871316 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837612) |
CK107 (06) (ARS, X88, Z88, 83I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871317 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (DUAL TONE PART) (GRANITE OPEL UPR) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837613) |
CK107 (06) (ARS, 19I) (EXC ULT) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871318 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (DUAL TONE PART)CASHMERE UPR) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837614) |
CK107 (06) (ARS, 39I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871320 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837616) |
CK107 (06) (ARS, X88, Z88, 33I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871321 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837617) |
CK107 (06) (ARS, X88, Z88, 83I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871322 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (EBONY) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837618) |
CK107 (06) (ARS, 19I) (EXC ULT) (2ND DES) |
2012-2012 |
01 |
| 018 |
22871323 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 22837619) |
CK107 (06) (ARS, 39I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22837612 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (FOR VEHICLES NOT LOCATED IN CHINA) (TITANIUM LWR, GRAY UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871316) |
CK107 (06) (ARS, X88, Z88, 83I) (1ST DES) |
2012-2012 |
01 |
| 018 |
22837616 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871320) |
CK107 (06) (ARS, X88, Z88, 33I) (1ST DES) |
2012-2012 |
01 |
| 018 |
22837617 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (TITANIUM) (FOR VEHICLES NOT LOCATED IN CHINA) (TITANIUM LWR, GRAY UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871321) |
CK107 (06) (ARS, X88, Z88, 83I) (1ST DES) |
2012-2012 |
01 |
| 018 |
22837619 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871323) |
CK107 (06) (ARS, 39I) (1ST DES) |
2012-2012 |
01 |
| 018 |
22871310 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (DUAL TONE PART)CASHMERE UPR) (USED ON VEH BUILT ON OR AFTER 11/21/11) (FOR 1ST DES SEE 20986794) |
CK107 (06) (X88, Z88, 33I) (2ND DES) |
2012-2012 |
01 |
| 018 |
22837614 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) |
CK107 (06) (ARS, 39I) |
2009-2012 |
01 |
| 018 |
22837611 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (FOR VEHICLES BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871315) |
CK107 (06) (ARS, X88, Z88, 33I) (1ST DES) |
2012-2012 |
01 |
| 018 |
22837614 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-14, 19, 20) (CASHMERE) (FOR VEHICLES NOT LOCATED IN CHINA) (CASHMERE LWR, CASHMERE UPR) (USED ON VEH BUILT PRIOR TO 11/21/11) (FOR 2ND DES SEE 22871318) |
CK107 (06) (ARS, 39I) (1ST DES) |
2012-2012 |
01 |
| 019 |
10388598 |
SWITCH, R/SEAT ADJR (PART OF 18) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2013 |
01 |
| 019 |
15113408 |
SWITCH, R/SEAT ADJR (PART OF 18) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2013 |
01 |
| 020 |
15214083 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (TITANIUM) |
CK1, 2 (06) (ARS, X88, Z88, 83I) |
2007-2013 |
02 |
| 020 |
15214084 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (EBONY) |
CK1, 2 (06) (ARS, 19I) |
2009-2013 |
02 |
| 020 |
15214082 |
BEZEL, BODY L/PLR G/MLDG (PART OF 18) (CASHMERE) |
CK1, 2 (06) (ARS, 33I, 39I) |
2007-2013 |
02 |
