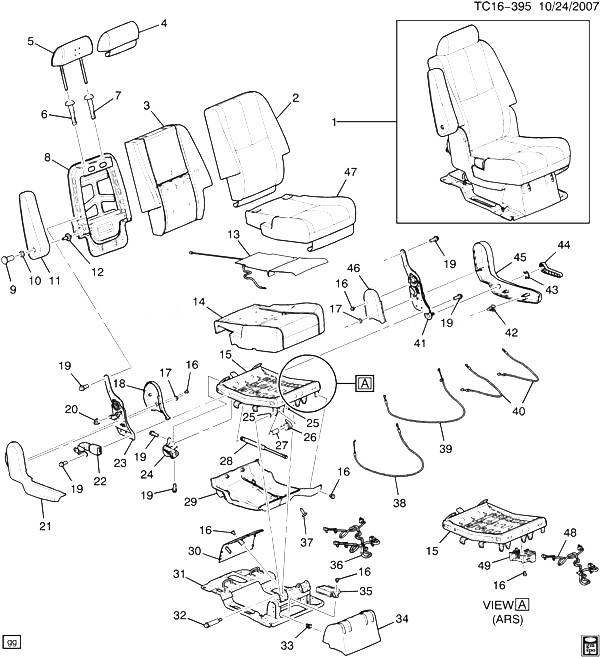

(TC16-395) 2007-2013 CK107(06) ЗАДНЕЕ СИДЕНЬЕ/BUCKET-LH (BUCKET AL4) CHEVROLET TAHOE (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
048 15843763 HARNESS, ST RECL WRG (ELEMENT) CK107, 109, 2 (06) (AL4, ARS, KA6) (EXC Y91) 2007-2013 01
049 15275906 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AL4) 2007-2013 01
001 20841918 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, 193) (EXC ARS, KA6, KB6, Y91) 2011-2013 01
001 20841919 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, 333) (EXC ARS, KA6, KB6, Y91) 2011-2013 01
001 20841920 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, 833) (EXC ARS, KA6, KB6, Y91) 2011-2013 01
001 20841935 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, 193) (EXC KA6, KB6, Y91) 2011-2013 01
001 20841936 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, 333) (EXC KA6, KB6, Y91) 2011-2013 01
001 20841937 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, ARS, 833) (EXC KA6, KB6, Y91) 2011-2013 01
001 20842026 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, KA6, KB6, 196) (EXC Y91) 2011-2013 01
001 20842027 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, KA6, KB6, 336) (EXC Y91) 2011-2013 01
001 20842028 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, ARS, KA6, KB6, 836) (EXC Y91) 2011-2013 01
001 20842098 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, KB6, 196) (EXC KA6, Y91) 2011-2013 01
001 20842099 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, KB6, 336) (EXC KA6, Y91) 2011-2013 01
001 20842100 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, ARS, KB6, 836) (EXC KA6, Y91) 2011-2013 01
001 20842721 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, KA6, 193) (EXC KB6, Y91) 2011-2013 01
001 20842722 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, KA6, 333) (EXC KB6, Y91) 2011-2013 01
001 20842723 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, ARS, KA6, 833) (EXC KB6, Y91) 2011-2013 01
001 20960327 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, 193) (EXC KA6, KB6, Y91) 2011-2013 01
002 15865718 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AL4, 193) 2007-2013 01
002 25931422 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2013 01
002 25931423 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AL4, KA6, KB6, 336) 2009-2013 01
002 25931424 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AL4, KA6, KB6, 836) 2009-2013 01
002 15865719 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AL4, 333) 2009-2013 01
002 15865720 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AL4, 833) 2009-2013 01
003 15291601 PAD, R/SEAT BK CK1, 2 (06) (AL4) 2007-2013 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2007-2013
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK1, 2 (06) (AL4, 193) (EXC KB6, Y91) 2011-2013 02
005 20960665 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, ARS, KB6, 196) (EXC Y91) 2011-2013 02
005 20960666 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107, 109, 2 (06) (AL4, 333) (EXC KB6, Y91) 2011-2013 02
005 20960666 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107, 109, 2 (06) (AL4, KB6, 336) (EXC Y91) 2011-2013 02
005 20960667 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107, 109, 2 (06) (AL4, 833) (EXC KB6, Y91) 2011-2013 02
005 20960667 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107, 109, 2 (06) (AL4, KB6, 836) (EXC Y91) 2011-2013 02
005 15865813 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, ARS, 193) (EXC KA6, KB6, Y91) 2011-2013 02
006 20912675 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (33I) 2007-2013 02
006 20912675 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (39I) 2007-2013 02
006 20912677 GUIDE, R/SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (AL4, 41I) 2008-2013 02
006 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2 (06) (19I) 2007-2013 02
006 20912676 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06) (83I) 2007-2013 02
007 20912679 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (AL4, 19I) 2007-2013 02
007 20912680 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06) (33I, 39I) 2007-2013 02
007 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2, 3 (83I) 2007-2013 02
007 25851751 GUIDE, R/SEAT H/RST (COCOA) (W/O BUTTON) CK1 (06-36) (41I) 2008-2013 02
008 15269768 FRAME, R/SEAT BK (BUILT 6/6/12 AND PRIOR) (FOR 2ND DES SEE 22939878) CK107, 109, 2 (06) (AL4, ARS, KB6, 196, 336, 836) (EXC Y91) (1ST DES) 2012-2012 01
008 22939878 FRAME, R/SEAT BK (BUILT JUNE 6 2012 AND AFTER) (FOR 1ST DES SEE 15269768) CK107, 109, 2 (06) (AL4, 193, 333, 833) (EXC Y91) (2ND DES) 2012-2012 01
008 22939878 FRAME, R/SEAT BK (BUILT JUNE 6 2012 AND AFTER) (FOR 1ST DES SEE 15269768) CK107, 109, 2 (06) (AL4, ARS, KB6, 196, 336, 836) (EXC Y91) (2ND DES) 2012-2012 01
008 15269768 FRAME, R/SEAT BK (BUILT 6/6/12 AND PRIOR) (FOR 2ND DES SEE 22939878) CK107, 109, 2 (06) (AL4, 193, 333, 833) (EXC Y91) (1ST DES) 2011-2012 01
008 22939878 FRAME, R/SEAT BK (BUILT 6/7/12 AND AFTER) (FOR 1ST DES SEE 15269768) CK107, 109, 2 (06) (AL4, 193, 333, 833) (EXC Y91) 2012-2012 01
009 15279691 CAP, R/SEAT ACTR FIN CVR BOLT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 02
009 25858335 CAP, R/SEAT ACTR FIN CVR BOLT (COCOA) CK1, 2 (06) (AL4, 41I) 2008-2013 02
009 15279689 CAP, R/SEAT ACTR FIN CVR BOLT (EBONY) CK1, 2 (06) (AL4, 19I) 2009-2013 02
009 15279690 CAP, R/SEAT ACTR FIN CVR BOLT (CASHMERE) CK1, 2 (06) (AL4, 33I, 39I) 2007-2013 02
010 11570119 NUT, R/SEAT A/RST (T/W 11570115 STUD) CK1, 2 (06) (AL4) 2007-2013 02
011 22785442 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 196) 2009-2013 01
011 22785443 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AL4, 333, 336) 2009-2013 01
011 22785444 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 836) 2009-2013 01
011 22785442 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 193) 2007-2013 01
011 22785444 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 833) 2007-2013 01
012 11570115 STUD, R/SEAT A/RST (T/W 11570119 NUT) CK1, 2 (06) (AL4) 2007-2013 02
013 20792750 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2013 01
014 15291603 PAD, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2013 01
015 15269770 FRAME, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2013 01
016 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2013 09
017 11562384 NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2013 02
018 15280108 COVER, R/SEAT RECL INR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I) 2009-2013 01
018 15280109 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
018 15280110 COVER, R/SEAT RECL INR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2013 01
018 25858339 COVER, R/SEAT RECL INR FIN (COCOA) (INNER) CK1 (06) (AL4, 41I) (EXC AX4) 2008-2013 01
019 11562378 BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 12
020 20963265 KNOB, R/SEAT LAT (EBONY) (INNER) CK1, 2 (06) 2011-2013 02
021 15279714 COVER, R/SEAT RECL INR FIN (INCLS 42) (EBONY) (OUTER) CK107 (06) (AL4, 19I) 2009-2013 01
021 15279715 COVER, R/SEAT RECL INR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
021 15279716 COVER, R/SEAT RECL INR FIN (INCLS 42) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2013 01
021 25858338 COVER, R/SEAT RECL INR FIN (INCLS 42) (COCOA) (OUTER) CK1 (06) (AL4, 41I) (EXC AX4) 2008-2013 01
022 19121601 BELT KIT, R/SEAT (BKL SI) (EBONY) CK1, 2 (06) (AL4, 19I) 2007-2013 01
022 19121604 BELT KIT, R/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 01
022 19121603 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AL4, 33I, 39I) 2009-2013 01
023 25896461 RECLINER, R/SEAT INR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2008-2013 01
024 15275890 LATCH, R/SEAT RSR (O/B) CK107 (06) (AL4, 415) 2009-2013 02
024 15275886 LATCH, R/SEAT RSR (O/B) CK107 (06) (AL4, 39I) 2008-2013 02
024 15275886 LATCH, R/SEAT RSR (O/B) CK107 (06) (AL4, 19I, 33I, 83I) 2009-2013 02
025 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AL4) 2007-2013 08
026 15275901 SPRING, R/SEAT RECL (TUMBLE) CK1, 2 (06) (AL4) 2007-2013 02
027 15275903 SPRING, R/SEAT RECL (MANDREL) CK1, 2 (06) (AL4) 2007-2013 02
028 15275905 STRUT, R/SEAT (USED ON BOTH LH/RH) CK1, 2 (06) (AL4) 2007-2013 02
029 22772263 PANEL, R/SEAT CUSH TR (EBONY) CK107 (06) (AL4, 19I) 2007-2013 01
029 22772264 PANEL, R/SEAT CUSH TR (CASHMERE) CK107 (06) (AL4, 33I, 39I) 2012-2013 01
029 22772265 PANEL, R/SEAT CUSH TR (TITANIUM) CK107 (06) (AL4, 833) 2012-2013 01
029 22906166 PANEL, R/SEAT CUSH TR CK107 (06) (AL4, 41I) 2011-2013 01
030 15280128 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK107 (06) (AL4, 19I) 2007-2013 01
030 15280129 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 33I, 39I) 2007-2013 01
030 15280130 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK107 (06) (AL4, 83I) 2007-2013 01
030 25858341 COVER, R/SEAT RSR FIN (COCOA) (REAR) CK1 (06) (AL4, 41I) 2008-2013 01
031 22741880 RISER, R/SEAT CK107 (06) (AL4, 193, 333, 833) 2011-2013 01
032 11562379 BOLT, R/SEAT HGE (M10X1.5X92) CK1, 2, 3 (AL4) 2007-2013 02
033 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 34) 2007-2013
034 15279599 COVER, R/SEAT RSR FIN (INCLS 33) (EBONY) (FRONT) CK107 (06) (AL4, 19I) 2007-2013 02
034 15279600 COVER, R/SEAT RSR FIN (INCLS 33) (CASHMERE) (FRONT) CK107 (06) (AL4, 33I, 39I) 2007-2013 02
034 15279601 COVER, R/SEAT RSR FIN (INCLS 33) (TITANIUM) (FRONT) CK107 (06) (AL4, 83I) 2007-2013 02
035 25891512 MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.558) CK1, 2 2007-2012 01
037 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 02
037 25858342 PIN, R/SEAT H/RST ADJ ROD LAT (COCOA) CK1 (06) (AL4, 41I) 2008-2013 02
037 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AL4, 19I) 2009-2013 02
037 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (33I, 39I) 2007-2013 02
038 25816415 CABLE, R/SEAT BK LAT (OUTBOARD MASTER SYNC) CK1, 2 (06) (AL4) 2007-2013 02
039 25816416 CABLE, R/SEAT LAT (INBOARD) (INBOARD MASTER SYNC) CK1, 2 (06) (AL4) 2007-2013 02
040 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AL4) 2007-2013 02
041 25896459 RECLINER, R/SEAT OTR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2007-2013 01
042 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 21, 45) 2007-2013
043 RETAINER, R/SEAT ADJR RLR (PART OF 44) 2007-2013
044 15279416 HANDLE, R/SEAT RECL (INCLS 43) (TITANIUM) CK1, 2 (06) (83I) 2007-2013 01
044 25858332 HANDLE, R/SEAT RECL (INCLS 43) (COCOA) CK1 (06) (AL4, 41I) 2008-2013 01
044 15279414 HANDLE, R/SEAT RECL (INCLS 43) (EBONY) CK1, 2 (06) (19I) 2007-2013 01
044 15279415 HANDLE, R/SEAT RECL (INCLS 43) (CASHMERE) CK1, 2 (06) (33I) 2007-2013 01
044 15279415 HANDLE, R/SEAT RECL (INCLS 43) (CASHMERE) CK1 (06) (39I) 2007-2013 01
045 15279694 COVER, R/SEAT RECL OTR FIN (INCLS 42) (EBONY) (OUTER) CK107 (06) (AL4, 19I) 2010-2013 01
045 15279695 COVER, R/SEAT RECL OTR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
045 15279696 COVER, R/SEAT RECL OTR FIN (INCLS 42) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2013 01
045 25858336 COVER, R/SEAT RECL OTR FIN (INCLS 42) (COCOA) (OUTER) CK1 (06) (AL4, 41I) (EXC AX4) 2008-2013 01
046 15279704 COVER, R/SEAT RECL OTR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I) 2010-2013 01
046 15279705 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
046 15279706 COVER, R/SEAT RECL OTR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2013 01
046 25858337 COVER, R/SEAT RECL OTR FIN (COCOA) (INNER) CK1 (06) (AL4, 41I) (EXC AX4) 2008-2013 01
047 25931428 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2013 01
047 25931429 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, KB6, 336) (EXC Y91) 2009-2013 01
047 25931430 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, KA6, KB6, 836) 2009-2013 01
047 15865726 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, 193) (EXC KB6) 2009-2013 01
047 15865727 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, 333) (EXC KB6) 2009-2013 01
047 15865728 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) (EXC KB6) 2009-2013 01
047 15865727 COVER, R/SEAT CUSH (CASHMERE) CK107 (06) (AL4, 336) (EXC KB6) 2009-2013 01
