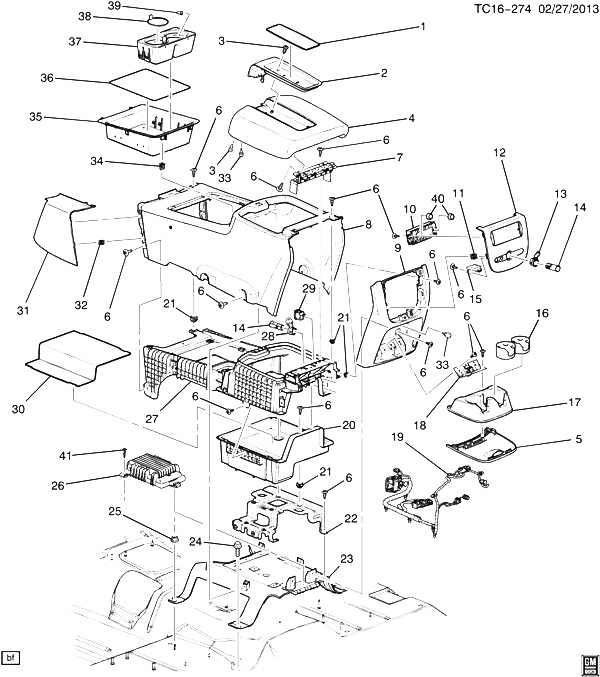

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15946301 |
LINER, F/FLR CNSL F/CMPT (PART OF 2, 4, 8) |
CK1, 2 (06) (D07) |
2010-2013 |
01 |
| 002 |
15134814 |
PUSHBUTTON, F/FLR CNSL COMPT DR LAT (INCLS 1) (PART OF 4, 8) (EBONY) |
CK1, 2, 3 (D07) (EXC Y91) |
2010-2013 |
01 |
| 003 |
|
BOLT, F/FLR CNSL COMPT (PART OF 4, 8) |
|
2010-2013 |
|
| 004 |
15217112 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (PART OF 8) (CASHMERE) |
CK1, 2, 3 (D07, 33I) (EXC GAT, X31, Y91) |
2011-2013 |
01 |
| 004 |
15217113 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (PART OF 8) (TITANIUM) |
CK1, 2, 3 (D07, 83I) (EXC GAT, X31, Y91) |
2011-2013 |
01 |
| 004 |
15217111 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (PART OF 8) (EBONY) |
CK1, 2 (06) (D07, UK6, UQA, UQ3, 19I) (EXC Y91) |
2011-2013 |
01 |
| 005 |
15217105 |
PANEL, F/FLR CNSL R/CMPT DR (EBONY) |
CK1, 2, 3 (D07, 19I) |
2010-2013 |
01 |
| 005 |
15217106 |
PANEL, F/FLR CNSL R/CMPT DR (CASHMERE) |
CK1, 2, 3 (D07, 33I, 39I) |
2010-2013 |
01 |
| 005 |
15217107 |
PANEL, F/FLR CNSL R/CMPT DR (TITANIUM) |
CK1, 2, 3 (D07, 83I) |
2012-2013 |
01 |
| 006 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 8) |
|
2010-2013 |
AR |
| 007 |
15134813 |
HINGE, F/FLR CNSL COMPT DR (PART OF 4, 8) (COMPARTMENT DOOR HINGE) |
CK1, 2, 3 |
2010-2013 |
01 |
| 008 |
20943679 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, UK6, UQA, USR, 19I) (EXC KA6, STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943680 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (CASHMERE) |
CK1, 2 (06) (D07, UK6, UQA, USR, 33I) (EXC KA6, STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943681 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (TITANIUM) |
CK1, 2 (06) (D07, UK6, UQA, USR, 83I) (EXC KA6, STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943747 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, UK6, UQA, USR, 83I) (EXC KA6, STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943779 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, KA6, UK6, USR, 19I) (EXC STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943780 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (CASHMERE) |
CK1, 2 (06) (D07, KA6, UK6, USR, 33I) (EXC STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943781 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (TITANIUM) |
CK1, 2 (06) (D07, KA6, UK6, USR, 83I) (EXC STZ, U42, Y91) |
2011-2013 |
01 |
| 008 |
20943691 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, UK6, UQ3, USR, 19I) (EXC KA6, U42, UQA, Y91) |
2010-2013 |
01 |
| 008 |
20943693 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (TITANIUM) |
CK1, 2 (06) (D07, UK6, UQ3, USR, 83I) (EXC KA6, U42, Y91) |
2010-2013 |
01 |
| 008 |
20943830 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (CASHMERE) |
CK1, 2 (06) (D07, UK6, UQA, USR, US8, UUJ, UYS, U42, 33I) (EXC KA6, STZ, Y91) |
2012-2013 |
01 |
| 008 |
20943831 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (TITANIUM) |
CK1, 2 (06) (D07, UK6, UQA, USR, US8, UUJ, UYS, U42, 83I) (EXC KA6, STZ, Y91) |
2012-2013 |
01 |
| 008 |
20943845 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, KA6, UK6, UQA, USR, US8, UUJ, UYS, U42, 19I) (EXC STZ, UL8, Y91) |
2012-2013 |
01 |
| 008 |
20943846 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (CASHMERE) |
CK1, 2 (06) (D07, KA6, UK6, UQA, USR, US8, UUJ, UYS, U42, 33I) (EXC STZ, Y91) |
2012-2013 |
01 |
| 008 |
20943847 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (TITANIUM) |
CK1, 2 (06) (D07, KA6, UK6, UQA, USR, US8, UUJ, UYS, U42, 83I) (EXC STZ, Y91) |
2012-2013 |
01 |
| 008 |
20943692 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (CASHMERE) |
CK1, 2 (06) (D07, UK6, UQ3, USR, 33I) (EXC KA6, U42, Y91) |
2010-2013 |
01 |
| 008 |
20943829 |
COMPARTMENT, F/FLR (INCLS 1-4, 6, 7, 19, 20, 22, 23, 26-30, 33, 41) (EBONY) |
CK1, 2 (06) (D07, UK6, UQA, USR, US8, UUJ, UYS, U42, 19I) (EXC KA6, STZ, Y91) |
2012-2013 |
01 |
| 009 |
15217103 |
PANEL, F/FLR FRT CNSL RR TR (TITANIUM) |
CK1 (06-36) (83I) |
2010-2013 |
01 |
| 009 |
15217102 |
PANEL, F/FLR FRT CNSL RR TR (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2012-2013 |
01 |
| 009 |
15217101 |
PANEL, F/FLR FRT CNSL RR TR (EBONY) |
CK1, 2 (06) (D07, 19I) |
2011-2013 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (SEE GROUP 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15881861) |
CK1, 2 (06) (D07, UK6) (EXC KA6, Y91) |
2010-2013 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (SEE GROUP 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (INCLS KNOBS) (2.560) (ACDelco #15886277) |
CK1, 2 (06) (D07, KA6, UK6) (EXC Y91) |
2010-2013 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (SEE GROUP 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (INCLS KNOBS) (ACDelco #15886277) |
CK1, 2 (06) (D07, KA6, UK6) (EXC Y91) |
2010-2013 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (SEE GROUP 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (2.560) (ACDelco #15881861) |
CK1, 2 (06) (D07, UK6) (EXC KA6, Y91) |
2010-2013 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12) |
|
2010-2013 |
05 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (NO AUDIO JACKS) |
CK1, 2 (06) (D07, U2K, UQA, UL8, UQ3) |
2010-2013 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13-15) (EBONY) (1 VIDEO 2 AUDIO JACKS) |
CK1, 2 (06) (D07, UQA, USR, U42) (EXC UL8) |
2010-2013 |
01 |
| 013 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 12) (EBONY) (INCLS COVER) |
CK1, 2 (06) (D07) |
2010-2013 |
01 |
| 014 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 12) (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
CK1, 2 (06-36) (X88, Z88) |
2010-2013 |
02 |
| 014 |
20919910 |
RECEPTACLE, ACSRY PWR (PART OF 12) (BLACK) (110V HIGH VOLTAGE PWR OTLT (HVPO)) |
CK107 (06) (HP2, X88, Z75, Z88) |
2012-2013 |
01 |
| 015 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (PART OF 12) (ACDelco #10375379) |
CK1, 2 (06) |
2010-2013 |
01 |
| 016 |
25793661 |
LINER, F/FLR CNSL RR CUP HLDR (W/FINGERS) |
CK1, 2, 3 (X88, Z88) |
2010-2013 |
01 |
| 017 |
15134819 |
HOLDER, F/FLR RR CNSL CUP |
CK1, 2, 3 (D07) |
2010-2013 |
01 |
| 018 |
15134821 |
HINGE, F/FLR CNSL COMPT DR (REAR CUPHOLDER DOOR HINGE) |
CK1, 2, 3 |
2010-2013 |
01 |
| 019 |
22888861 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, KA6, UK6, USR) (EXC STZ, U42, Y91) |
2012-2013 |
01 |
| 019 |
22888861 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, UK6, UQA, USR) (EXC KA6, STZ, U42, Y91) |
2012-2013 |
01 |
| 019 |
22888867 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, UK6, UQ3, USR) (EXC KA6, U42, Y91) |
2012-2013 |
01 |
| 019 |
22888861 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1, 2 (06) (D07, UK6, UQA, USR, US8, UUJ, UYS, U42) (EXC STZ, Y91) |
2012-2013 |
01 |
| 020 |
|
RETAINER, F/FLR CNSL (PART OF 8) |
|
2010-2013 |
|
| 021 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL) (10.701) |
|
2010-2013 |
AR |
| 022 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2010-2013 |
|
| 023 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2010-2013 |
|
| 024 |
11562473 |
BOLT, F/SEAT (M12X1.75X45) |
CK1, 2, 3 |
2010-2013 |
04 |
| 025 |
15035434 |
NUT, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) |
CK1, 2, 3 |
2010-2013 |
04 |
| 026 |
15186661 |
AMPLIFIER, RDO SPKR (PART OF 8) |
CK1, 2 (06) (D07, UK6, UQA) (EXC STZ, Y91) |
2010-2013 |
01 |
| 027 |
|
RETAINER, F/FLR CNSL (PART OF 8) |
|
2010-2013 |
|
| 028 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 8) (EBONY) (INCLS COVER) |
CK1, 2 (06) (D07) |
2010-2013 |
01 |
| 029 |
20944418 |
RECEPTACLE, USB (PART OF 8) |
CK1, 2, 3 (D07, USR) |
2010-2013 |
01 |
| 030 |
15134801 |
MAT, F/FLR CNSL FRT COMPT (PART OF 8) (EBONY) |
CK1, 2 (06) |
2010-2013 |
01 |
| 031 |
15906823 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2010-2013 |
01 |
| 031 |
15916185 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2010-2013 |
01 |
| 031 |
15916183 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (EBONY) |
CK1, 2 (06-36) (D07, X88, Z88, 19I) |
2010-2013 |
01 |
| 031 |
15906821 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (EBONY) |
CK1 (06-36) (D07, X88, Z88, 19I) |
2010-2013 |
01 |
| 031 |
15906822 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (CASHMERE) |
CK1, 2 (06-36) (D07, X88, Z88, 33I, 39I) (EXC WV9) |
2012-2013 |
01 |
| 031 |
15916184 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (CASHMERE) |
CK1, 2 (06-36) (D07, X88, Z88, 33I, 39I) (EXC WV9) |
2012-2013 |
01 |
| 032 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31) |
|
2010-2013 |
04 |
| 033 |
15070572 |
BUMPER, F/FLR RR CNSL A/RST (PART OF 4, 8) |
CK1, 2 (06) (D07, UK6) |
2010-2013 |
02 |
| 034 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 35) |
|
2010-2013 |
04 |
| 035 |
20951471 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 34, 36-39) (METAL) (W/HEAT STAKES) |
CK1 (D07, GAT, X31) |
2011-2013 |
01 |
| 035 |
22860866 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 34, 36-39) (EBONY) |
CK1, 2 (06-36) (D07, X88, Z88) (EXC STZ, Y91) |
2010-2013 |
01 |
| 036 |
15134788 |
LINER, F/FLR COMPT (PART OF 35) |
CK1, 2 (06-36) (D07, X88, Z88) (EXC STZ, WV9, Y91, 5W4) |
2010-2013 |
01 |
| 037 |
15134793 |
HOLDER, F/FLR CUP (PART OF 35) (INCLS 38) (EBONY) |
CK1, 2, 3 (D07, X88, Z88) |
2010-2013 |
01 |
| 038 |
15134790 |
LINER, F/FLR CNSL RR CUP HLDR (PART OF 35, 37) (EBONY) (W/O FINGERS) |
CK1, 2, 3 (06-36) (D07, SLT) (EXC Y91) |
2010-2013 |
01 |
| 039 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 35) |
|
2010-2013 |
AR |
| 040 |
22912547 |
KNOB KIT, AUDIO RR VOL CONT (W/CHROME RING ON KNOB TOP) |
CK1, 2 (06) (D07, UK6) (EXC KA6, STZ, Y91) |
2010-2013 |
01 |
| 040 |
22912547 |
KNOB KIT, AUDIO RR VOL CONT (W/CHROME RING ON KNOB TOP) |
CK1, 2 (06) (D07, KA6, UK6) (EXC Y91) |
2010-2013 |
01 |
| 041 |
11609456 |
SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (PART OF 8) |
|
2010-2013 |
03 |
