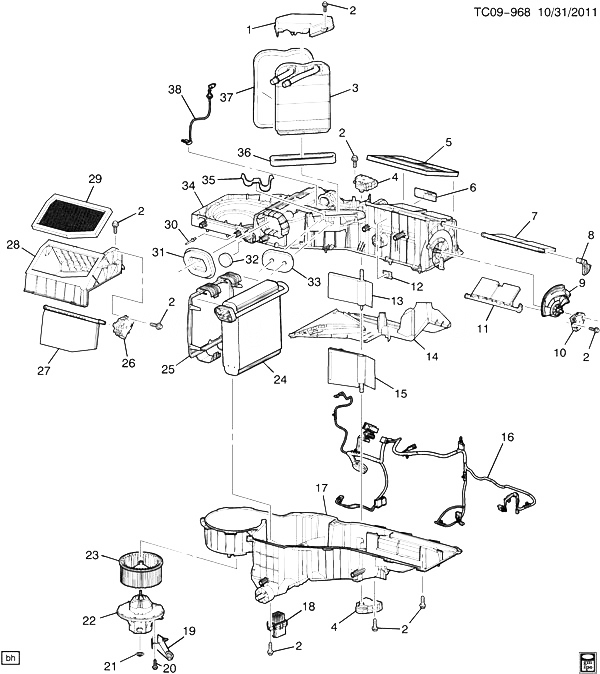

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89018299 |
CASE, HTR |
CK1, 2, 3 |
2011-2013 |
01 |
| 002 |
11609829 |
BOLT, A/C EVPR TUBE CLIP (M4.2X2.25X16) (9.786) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
17 |
| 003 |
89018297 |
CORE, HTR (INCLS 36, 37) (INCLS 2 SEALS) (ACDelco #15-62960) |
CK1, 2, 3 (CJ2, CJ3, C42) |
2011-2013 |
01 |
| 004 |
89018365 |
ACTUATOR, TEMP VLV (ACDelco #15-72971) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2013 |
02 |
| 005 |
|
SEAL, W/S DEFR NOZ AIR DISTR (*KIT3) |
|
2011-2013 |
|
| 006 |
|
LABEL, AIR DISTR DUCT IDENT |
|
2011-2013 |
|
| 007 |
|
VALVE, MODE (PART OF 34) |
|
2011-2013 |
|
| 008 |
52474960 |
LEVER, MODE VLV |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 009 |
|
CAM, MODE CONT (*KIT1) |
|
2011-2013 |
|
| 010 |
|
ACTUATOR, MODE CONT CAM (*KIT1) |
|
2011-2013 |
|
| 011 |
89018304 |
VALVE, DEFR (ACDelco #15-50561) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 012 |
|
LABEL, HTR A/C EVPR BLO MDL IDENT |
|
2011-2013 |
|
| 013 |
89018307 |
VALVE, TEMP |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 014 |
89018302 |
SHIELD, HTR A/C EVPR BLO MDL HT |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 015 |
89018306 |
VALVE, TEMP |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 016 |
20834824 |
HARNESS, A/C MDL WRG |
CK1, 2 (06) (CJ2) |
2011-2013 |
01 |
| 017 |
20883395 |
CASE, HTR A/C EVPR BLO LWR |
CK1, 2 (06) (CJ2, CJ3) |
2011-2013 |
01 |
| 018 |
13501703 |
MODULE, BLO MOT CONT (9.169) (ACDelco #15-81638) |
CK107 (06) (CJ2, CJ3, C69) |
2011-2013 |
01 |
| 018 |
13501703 |
MODULE, BLO MOT CONT (9.169) (ACDelco #15-81638) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2013 |
01 |
| 019 |
20883403 |
DUCT, HTR A/C EVPR BLO MDL CLG (INCLS 20) (*KIT2) (IF SCREWS REQD, USE PN 11609829 (QTY 3)) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2012 |
01 |
| 020 |
|
BOLT, HTR A/C EVPR LWR CASE (PART OF 19) (*KIT2) |
|
2011-2013 |
|
| 021 |
|
PLUG, HTR CASE (PART OF 22) (*KIT2) |
|
2011-2013 |
|
| 022 |
22741027 |
MOTOR, BLO (INCLS 21, 23) (9.215) (ACDelco #15-81683) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 022 |
22741027 |
MOTOR, BLO (INCLS 21, 23) (ACDelco #15-81683) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| 023 |
|
BLOWER, (PART OF 22) (*KIT2) |
|
2011-2013 |
|
| 024 |
89019027 |
EVAPORATOR, A/C (ACDelco #15-62961) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2013 |
01 |
| 025 |
89018295 |
SEAL, A/C EVPR (ACDelco #89018295) |
CK1, 2, 3 |
2011-2013 |
01 |
| 026 |
89018365 |
ACTUATOR, TEMP VLV (ACDelco #15-72971) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2013 |
02 |
| 027 |
|
VALVE, AIR INL (*KIT4) |
|
2011-2013 |
|
| 028 |
|
INLET, AIR (*KIT4) |
|
2011-2013 |
|
| 029 |
|
SEAL, AIR INL (*KIT3, KIT4) |
|
2011-2013 |
|
| 030 |
89018612 |
STUD, HTR A/C EVPR BLO MDL (M6X1X33MM TORX/COLR) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
02 |
| 031 |
|
SEAL, A/C EVPR TUBE (*KIT3) |
|
2011-2013 |
|
| 032 |
|
SEAL, HTR A/C EVPR BLO MDL DRN TUBE (*KIT3) |
|
2011-2013 |
|
| 033 |
|
SEAL, HTR CORE PIPE (*KIT3) |
|
2011-2013 |
|
| 034 |
20834819 |
CASE, HTR A/C EVPR BLO UPR (INCLS 7, 35) |
CK1, 2 (06) (CJ2, CJ3) |
2011-2012 |
01 |
| 035 |
22869345 |
INSULATOR, HTR CORE TUBE (PART OF 34) |
CK1, 2, 3 |
2011-2013 |
01 |
| 036 |
|
SEAL, HTR A/C EVPR BLO MDL H/SHLD (PART OF 3) (*KIT3) |
|
2011-2013 |
|
| 037 |
|
SEAL, HTR CORE (PART OF 3) (*KIT3) |
|
2011-2013 |
|
| 038 |
25953349 |
SENSOR, A/C REFRIG TEMP (ACDelco #15-51267) |
CK1, 2, 3 |
2011-2013 |
01 |
| K01 |
89018374 |
ACTUATOR, MODE CONT CAM (INCLS 9, 10) (ACDelco #15-73952) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| K02 |
22741027 |
MOTOR, BLO (INCLS 19-21, 23) (9.215) (ACDelco #15-81683) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| K02 |
22741027 |
MOTOR, BLO (INCLS 19-21, 23) (ACDelco #15-81683) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2013 |
01 |
| K03 |
89018784 |
SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 5, 29, 31-33, 36, 37) (ACDelco #15-34397) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2012 |
01 |
| K04 |
22819113 |
INLET, AIR (INCLS 27-29) |
CK1, 2, 3 (CJ2, CJ3) |
2011-2012 |
01 |
